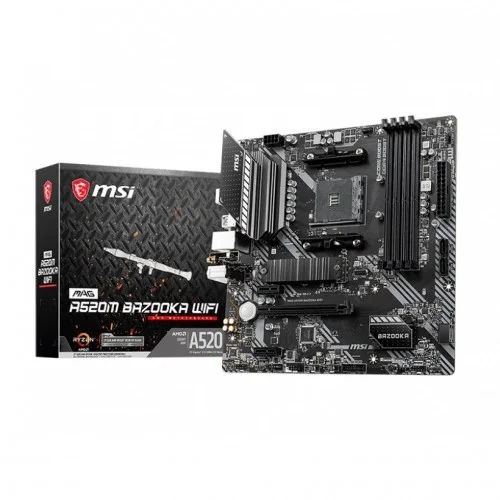

MSI MAG A520M BAZOOKA Wi-Fi AMD AM4 Micro-ATX Motherboard

Status
In Stock
2 stores
Lowest Out of Stock
Price Range Single price listing
MSI MAG A520M BAZOOKA Wi-Fi AMD AM4 Micro-ATX Motherboard

Product Description

Build a Powerful Gaming PC with the MSI MAG A520M BAZOOKA WIFI Motherboard

Designed for enthusiasts and gamers, the MSI MAG A520M BAZOOKA WIFI motherboard is a high-performance solution for AMD Ryzen 5000, 3000, and 4000 G-Series desktop processors. With its robust feature set and premium design, this motherboard delivers exceptional performance, reliability, and flexibility for building a powerful gaming PC.

Key Features and Performance Highlights

  • Supports AMD Ryzen 5000, 3000, and 4000 G-Series desktop processors for exceptional performance and efficiency.
  • 4 x DDR4 memory slots with support for up to 128GB of dual-channel memory and speeds of up to 4400 MHz (OC).
  • 1x PCIe 3.0 x16 slot and 2x PCIe 3.0 x1 slots for flexible expansion options.
  • 1x M.2 slot (Key M) with support for PCIe 3.0 x4, SATA 6Gb/s, and storage devices up to 2280.
  • Intel Dual Band Wireless-AC 3168 for fast and reliable Wi-Fi connectivity.

Advanced Technologies and Features

The MSI MAG A520M BAZOOKA WIFI motherboard features a range of advanced technologies and features, including:

Extended Heatsink Design

The motherboard's extended heatsink design provides maximum cooling and performance for the CPU and other critical components. This design allows for improved heat dissipation and reduced throttling, ensuring optimal system performance even under heavy loads.

Audio Boost and Premium Layout

The motherboard features Audio Boost technology, which provides studio-grade sound quality and immersive audio experiences. The premium layout and digital power design also support more cores and provide better performance, making this motherboard an ideal choice for gamers and content creators.

Part ID: #CAN-02063 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Creatus Computer MSI MAG A520M BAZOOKA Wi-Fi AMD AM4 Micro-ATX Motherboard
In Stock Call for Price 5 hours ago
PC House MSI MAG A520M BAZOOKA Wi-Fi AMD AM4 Micro-ATX Motherboard
Check Stock Call for Price 1 month ago

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU AMD Ryzen 5000 & 3000 Series desktop processors and AMD Ryzen 4000 G-Series desktop processors
Chipset AMD A520 Chipset
Form Factor M-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Audio Realtek ALC897 Codec 7.1-Channel High Definition Audio

Expansion Slots

PCI 1x PCIe 3.0 x16 slot(PCI_E2) 2x PCIe 3.0 x1 slots
M.2 Socket 1x M.2 slots (Key M) M2_1 slot (from AMD processor) Supports PCIe 3.0 x4 1,Supports SATA 6Gb/s,Supports 2242/ 2260/ 2280 storage devices

Memory

Type Dual-channel memory architecture
Slots 4 x DDR4 memory slots
Supported Memory Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHz 1DPC 2R max speed 3866 MHz 2DPC 1R max speed 4000 MHz 2DPC 2R max speed 3600 MHz Supports non-ECC UDIMM memory,Supports ECC UDIMM memory (non-ECC mode),Supports un-buffered memory
Maximum Memory 128GB

Graphics

Graphics 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @60Hz Support for HDMI 1.4 version, HDCP 1.4 & 2.3 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz
Max Shared Memory 16GB

Connector & Ports

HDMI 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @60Hz
Display Port (s) 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz
USB (s) AMD A520 Chipset: 2x USB 3.2 Gen 1 5Gbps ports (2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)AMD Processor: 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
LAN Port (s) 1x Realtek RTL8111H LAN controller
Wireless Communication module Intel Dual Band Wireless-AC 3168 Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps speed. Supports Dual Mode Bluetooth 2.1,2.1+EDR,3.0,4.0,BLE,4.2
Supported Storage AMD A520 Chipset: 4x SATA 6Gb/s ports 1x M.2 slots (Key M) M2_1 slot (from AMD processor) Supports PCIe 3.0 x4 Supports SATA 6Gb/s,Supports 2242/ 2260/ 2280 storage devices
Audio 1x Front panel audio connector
Internal I/O Ports 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x Serial port connector 1x M.2 slot (M-Key),1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 2x 4-pin system fan connector 1x Flash BIOS button 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector,1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector,1x Clear CMOS jumper
TPM (Trusted Platform Module ) 1x TPM module connector

Warranty Information

Manufacturing Warranty 03 Years Warranty
Part ID: #CAN-02063 Last Updated: 1 month ago
