Status
In Stock
5 listings tracked
Lowest Deal
19,900
Best Deal
Price Range
Single price listing
Product Description
Engineered by MSI, this motherboard is featuring a **Micro-ATX** form factor and supporting high-speed **DDR5** memory, providing a reliable foundation for custom desktop systems. PCPartsBD lists the best deal for this item at **19,900 ৳** after tracking live prices across leading BD tech merchants.
Part ID: #CAN-01046
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Ultra Technology

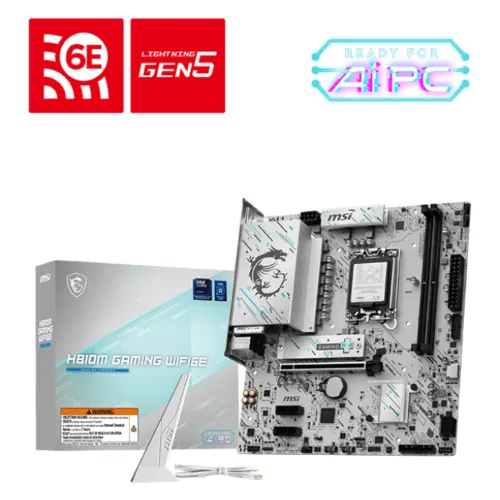

MSI H810M GAMING WIFI6E LGA 1851 mATX Motherboard
|
In Stock | 19,500 | 2 hours ago | |
|
Star Tech
MSI H810M GAMING WIFI6E LGA 1851 mATX Motherboard
|
In Stock | 19,900 | 3 hours ago | |
|
Sell Tech
MSI H810M GAMING WIFI6E LGA 1851 mATX Motherboard
|
In Stock | 19,900 | 3 hours ago | |
|
Nexus Computer
MSI H810M GAMING WIFI6E LGA 1851 mATX Motherboard
|
In Stock | 20,000 | 2 hours ago | |
|
Skyland BD
MSI H810M GAMING WIFI6E LGA 1851 mATX Motherboard
|
In Stock | 20,500 | 2 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Supports Intel Core Ultra Processors (Series 2) LGA 1851
Chipset
INTEL H810
Form Factor
mATX 220mmx243.84mm
Audio
Realtek ALC897 Codec 7.1-Channel High Definition Audio
Expansion Slots
PCI
1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
M.2 Socket
1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
Memory
Type
DDR5
Slots
2
Supported Memory
Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 6400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s Supports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM
Maximum Memory
128GB
Graphics
Graphics
1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz
Connector & Ports
HDMI
1x HDMI 2.1
Display Port (s)
1x DisplayPort 1.4
USB (s)
4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear)
LAN Port (s)
Realtek 8126 5Gbps LAN
Wireless Communication module
Wi-Fi 6E module The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA
Supported Storage
1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices 4x SATA 6G
Audio
1x Front Audio (JAUD)
Internal I/O Ports
1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
TPM (Trusted Platform Module )
1x TPM pin header(Support TPM 2.0)
Others
Special Features
4x EZ Debug LED 1x EZ Memory Detection LED
Warranty Information
Manufacturing Warranty
3 Year warranty
Key Features
Model
H810M GAMING WIFI6E
Supported CPU
Intel Core Ultra Processors (Series 2), LGA 1851
Supported RAM
2x DDR5 UDIMM, Up to 6400+(OC) MT/s, Max 128GB
Graphics Output
1x HDMI 2.1, 1x DisplayPort 1.4
Features
1x M.2, Realtek 8126 5Gbps LAN, Wi-Fi 6E, Bluetooth 5.3
Part ID: #CAN-01046
Last Updated: 2 days ago
The MSI H810M Gaming WIFI6E motherboard is designed for gamers and professionals seeking power, speed, and stability in a small mATX form factor. This board, built with the Intel H810 chipset and supporting Intel Core Ultra Processors (Series 2) on the LGA 1851 socket, provides dependable performance for next-generation computing. It supports dual-channel DDR5 memory up to 128GB, with overclocked rates exceeding 6400 MT/s, and Intel XMP 3.0 makes memory tuning simple. The MSI H810M Gaming WIFI6E motherboard has MSI's Core Boost and Memory Boost technologies, as well as a 6 P-PAK power system and a sturdy 6-layer server-grade PCB for superior power delivery and system reliability. To ensure maximal efficiency, the motherboard includes MSI's Frozr Guard cooling system, which includes an expanded heatsink, MOSFET thermal pads rated at 7W/mK, additional choke thermal pads, and an M.2 Shield Frozr. Gamers will like the PCIe 5.0 x16 slot for high-performance graphics cards and the PCIe 4.0 x4 M.2 slot for ultra-fast storage, which is supported by four SATA 6Gb/s ports. The MSI H810M Gaming WIFI6E motherboard features high-speed connectivity in the form of Realtek 8126 5Gbps LAN and Wi-Fi 6E with Bluetooth 5.3, ensuring seamless and secure networking for gaming, streaming, and professional applications. Onboard HDMI 2.1 and DisplayPort 1.4 can handle resolutions of up to 4K at 60Hz, depending on the CPU. Audio Boost, powered by the Realtek ALC897 codec, delivers immersive 7.1-channel sound quality. The MSI H810M Gaming WIFI6E motherboard's rear I/O features a USB 20Gbps Type-C, multiple USB 5Gbps, USB 2.0, and front-panel choices such as a 10Gbps Type-C. MSI simplifies DIY with EZ M.2 Clip II, EZ PCIe Clip II, and EZ Antenna, while EZ Debug LEDs and EZ Memory Detection LEDs make troubleshooting a breeze. With RGB headers for customization, Windows 11 support, and a balanced design, the MSI H810M Gaming WIFI6E is a feature-rich motherboard designed for intense gaming and dependable everyday performance.Buy MSI H810M GAMING WIFI6E Motherboard from Star TechIn Bangladesh, you can get original MSI H810M GAMING WIFI6E Motherboard From Star Tech. We have a large collection of latest MSI Motherboard to Purchase for your Desktop. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The MSI H810M GAMING WIFI6E Motherboard comes with a 3-year Warranty.
