Product Description

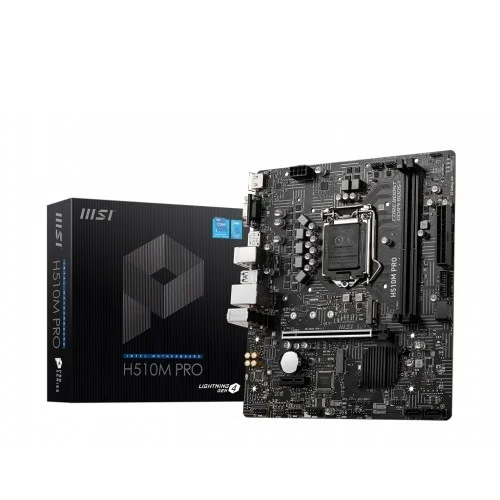

MSI H510M PRO Intel 10th Gen and 11th Gen Micro-ATX Motherboard
Designed for the modern gamer and content creator, the MSI H510M PRO Intel 10th Gen and 11th Gen Micro-ATX Motherboard offers a powerful and efficient platform for building a high-performance PC. With its robust feature set and high-quality construction, this motherboard is perfect for those seeking a reliable and efficient computing experience.
Key Features and Benefits
- Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold, and Celeron processors for LGA 1200 socket
- DDR4 memory support with speeds up to 3200 MHz and a maximum capacity of 64GB
- 7.1-channel high-definition audio and HDMI 2.0b with HDR support for seamless multimedia experiences
- Four USB 3.2 Gen 1 5Gbps ports and six USB 2.0 ports for convenient connectivity
- Intel I219V 1Gbps LAN controller for reliable network connectivity
Proprietary Technologies and Features
Efficient Power Delivery
The MSI H510M PRO features a premium layout and digital power design, providing a stable and efficient power delivery system that supports more cores and offers better performance. This ensures that your system runs smoothly and efficiently, even under heavy loads.
Part ID: #CAN-02061
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors1
Chipset
Intel H510 Chipset
Form Factor
mATX Form Factor
Audio
7.1-Channel High Definition Audio
Expansion Slots
PCI
1x PCIe x16 slot (From CPU) - Support up to PCIe 4.0 for 11th Gen Intel CPU - Support up to PCIe 3.0 for 10th Gen Intel CPU 1x PCIe 3.0 x1 slot (From PCH)
M.2 Socket
1x M.2 slot with E key for WiFi module only(M2_2)
Memory
Type
DDR4
Slots
2x DDR4 memory slots
Supported Memory
1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Dual-Channel mode non-ECC, un-buffered memory Intel Extreme Memory Profile (XMP)
Maximum Mamory
support up to 64GB
Graphics
Graphics
HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
Connector & Ports
USB (s)
- 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) - 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)
LAN Port (s)
1x Intel I219V 1Gbps LAN controller
Supported Storage
4x SATA 6Gb/s ports (From H510 Chipset) 1x M.2 slot (Key M) - M2_1 slot (From H510 Chipset) - up to PCIe 3.0 x4 - SATA 6Gb/s1 - 2242/ 2260/ 2280 storage devices
Audio
1x Front panel audio connector
Internal I/O Ports
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) USB 2.0 connector (supports additional 2 USB 2.0 ports) 1x 4-pin CPU fan connector 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors Serial port connector 1x Chassis Intrusion connector Clear CMOS jumper 1x TPM module connector
Warranty Information
Manufacturing Warranty
03 years warranty
Part ID: #CAN-02061
Last Updated: 1 month ago
