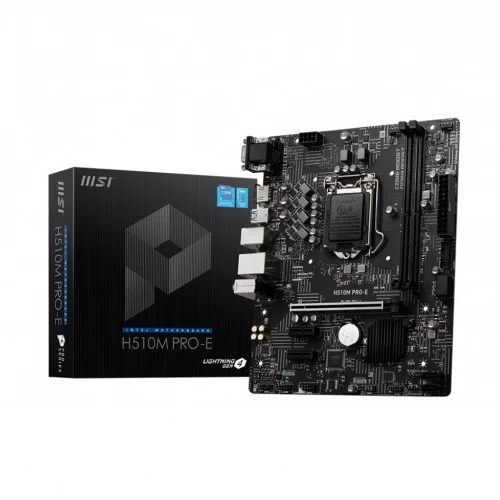

Name: MSI H510M PRO-E Intel 10th Gen and 11th Gen Mirco ATX Motherboard
Brand: MSI

Status

In Stock

2 stores

Lowest Deal 8,700 BDT Best Deal

Price Range 8,700 to 9,200 BDT Save 5%

MSI H510M PRO-E Intel 10th Gen and 11th Gen Mirco ATX Motherboard

Product Description

Effortless Performance for Professionals

The MSI H510M PRO-E Intel 10th Gen and 11th Gen Micro ATX Motherboard is designed for professionals seeking a seamless computing experience. With its robust functionality and high-quality construction, this motherboard delivers optimized workflows and less troubleshooting, ensuring longevity and reliability.

Key Features and Performance Highlights

Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold, and Celeron processors for LGA 1200 socket
DDR4 Memory, up to 3200(MHz) for enhanced performance
PCIe 4.0 support for faster data transfer rates and improved graphics performance
Realtek ALC897 Codec 7.1-Channel High Definition Audio for immersive audio experience
4x USB 3.2 Gen 1 5Gbps ports and 6x USB 2.0 ports for seamless connectivity

Proprietary Technologies and Advanced Features

The MSI H510M PRO-E Intel 10th Gen and 11th Gen Micro ATX Motherboard incorporates MSI's advanced technologies to deliver exceptional performance, stability, and strength. The motherboard features a premium layout and digital power design, supporting more cores and providing better performance. Additionally, the DDR4 Boost technology ensures pure data signals for the best performance and stability, while the Lightning Fast Experience with PCIe 4.0 provides faster data transfer rates.

Part ID: #CAN-01877 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily

Retailer	Stock Status	Price	Last Checked	Action
Nexus Computer MSI H510M PRO-E 10th Gen and 11th Gen Mirco ATX Motherboard	In Stock	8,700	3 hours ago	Buy Now
Creatus Computer MSI H510M PRO-E Intel 10th Gen and 11th Gen Mirco ATX Motherboard	In Stock	9,200	4 hours ago	Buy Now

Historical Pricing Trend

Product Specifications

Key Features

Form Factor mATX

Basic Information

Supported CPU Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors1

Chipset Intel H510 Chipset

Form Factor mATX Form Factor 9.3 x 7.5 in. (23.6 cm x 19.0 cm)

Audio Realtek ALC897 Codec 7.1-Channel High Definition Audio

Memory

Ram Type DDR4

Type DDR4

Slots 2x DDR4 memory slots

Supported Memory Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)

Maximum Memory up to 64GB

Expansion Slots

PCI 1x PCIe x16 slot (From CPU) Support up to PCIe 4.0 for 11th Gen Intel CPU Support up to PCIe 3.0 for 10th Gen Intel CPU 2x PCIe 3.0 x1 slots (From PCH)

Graphics

Graphics 1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz 1x HDMI 1.4 port, supports a maximum resolution of 4K 30Hz

Connector & Ports

HDMI 1x HDMI 1.4 port

VGA (s) 1x VGA port

USB (s) Intel H510 Chipset 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector)

LAN Port (s) 1x Realtek RTL8111 Gigabit LAN controller

Supported Storage 4x SATA 6Gb/s ports (From H510 Chipset)

Audio 1x Front panel audio connector

Internal I/O Ports 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB ports), 1x USB 2.0 connector (support additional 2 USB ports), 1x 4-pin CPU fan connector 1x 4-pin system fan connector, 1x Front panel audio connector 2x System panel connectors 1x Serial port connector, 1x Chassis Intrusion connector, 1x Clear CMOS jumper
