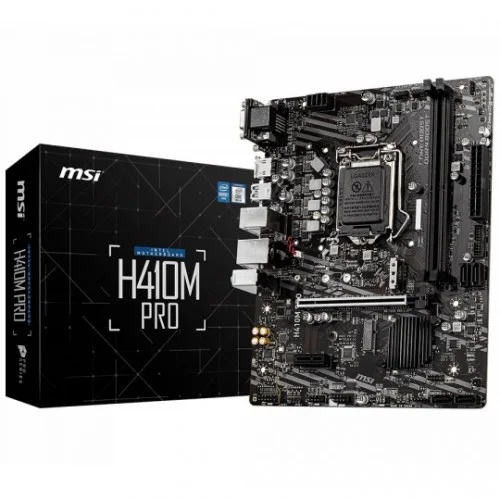

MSI H410M Pro Intel 10th Gen Micro-ATX Motherboard

Product Description

Upgrade Your PC Experience with the MSI H410M Pro

Designed for content creators, gamers, and professionals, the MSI H410M Pro Intel 10th Gen Micro-ATX Motherboard is engineered to deliver exceptional performance and stability. With its robust feature set and optimized design, this motherboard helps you unlock your system's full potential and stay ahead of the curve.

Key Features and Benefits

Technical Specifications:

  • Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA 1200 socket
  • Dual Channel Memory Architecture with up to 64GB of DDR4 memory
  • 1x PCIe 3.0 x16 slot and 1x M.2 slot with PCIe 3.0 x4 and SATA 6Gb/s support
  • Intel I219V Gigabit LAN controller for reliable network connectivity
  • Realtek ALC892 Codec 7.1-Channel High Definition Audio
  • 4x USB 3.2 Gen 1 5Gbps ports and 6x USB 2.0 ports for seamless connectivity

MSI's Innovative Technologies

Total Fan Control: Manage speeds and temperatures for all your system and CPU fans in a simplified graphical interface. Set up to 4 temperature targets for CPU and motherboard to adjust fan speeds automatically.

Core Boost Technology: Combines MSI's premium layout and optimized power design to deliver faster and undistorted current delivery to the CPU at pin-point precision, creating a perfect condition to support multi-core CPU running at full speed.

Part ID: #CAN-02058 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
PC House MSI H410M Pro Intel 10th Gen Micro-ATX Motherboard
In Stock Call for Price 4 hours ago
Creatus Computer MSI H410M Pro Intel 10th Gen Micro-ATX Motherboard
Check Stock Call for Price 4 hours ago

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA 1200 socket
Chipset Intel H410
Form Factor Mirco-ATX Form Factor: 9.3 in. x 7.5 in. (23.6 cm x 19.0 cm)

Expansion Slots

PCI 1x PCIe 3.0 x16 slot (From CPU) 1x PCIe 3.0 x1 slot (From PCH)
M.2 Socket 1x M.2 slot (Key M) -M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices 1x M.2 slot with E key for WiFi module only

Memory

Type Dual Channel Memory Architecture
Slots 2 x DIMM
Supported Memory Intel Core i7/ i9 -Supports up to DDR4 2933 MHz Intel Core i5 and below -Supports up to DDR4 2666 MHz Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Maximum Mamory 64GB

Graphics

Graphics 1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @30Hz
Max Shared Memory 1GB

Connector & Ports

HDMI 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @30Hz
USB (s) Intel H410 Chipset 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector)
LAN Port (s) 1x Intel I219V Gigabit LAN controller
Supported Storage Intel H410 Chipset 4x SATA 6Gb/s ports 1x M.2 slot (Key M) -M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
Audio Realtek ALC892 Codec 7.1-Channel High Definition Audio
Internal I/O Ports 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen1 5Gbps ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x Front panel connectors 1x Serial port connector 1x TPM module connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 4x EZ Debug LED
DVI-D (s) 1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz

Warranty Information

Manufacturing Warranty 03 Years
