Product Description

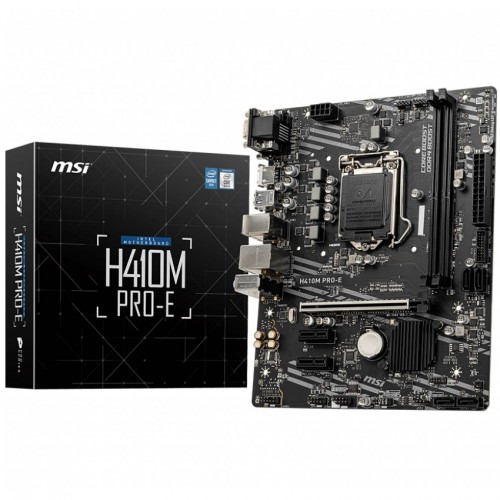

Engineered by MSI, this motherboard is designed for **LGA1200** socket processors and featuring a **Micro-ATX** form factor, providing a reliable foundation for custom desktop systems. You can buy this component starting from **7,800 ৳**, compared dynamically across 2 major computer shops.
Part ID: #CAN-02167
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
BASIC INFORMATION
Form Factor
Mirco-ATX Form Factor 9.3 in. x 7.5 in. (23.6 cm x 19.0 cm)
Basic Information
Chipset
Intel H410 Chipset
Audio
Realtek ALC897 Codec 7.1-Channel High Definition Audio
CPU
Supports 10th Gen Intel Core and Pentium Gold/ Celeron processors for LGA 1200 socket
Memory
Memory
Type: Non-ECC, Un-Buffered Memory Slots: 2x DDR4 memory slots Supported Memory: Intel Core i7/ i9: Supports up to DDR4 2933 MHz Intel Core i5 and below: Supports up to DDR4 2666 MHz Supports Dual-Channel mode Supports Intel Extreme Memory Profile (XMP) Maximum Memory: 64GB
Graphics
Graphics
1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz 1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz
Connector & Ports
HDMI
1x HDMI 1.4 port (Resolution of 4096x2160 @30Hz)
LAN
1x Realtek R1111H Gigabit LAN controller
Supported Storage
Intel H410 Chipset 4x SATA 6Gb/s ports
Internal I/O Ports
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen1 5Gbps ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 4x EZ Debug LED
USB Port
Intel H410 Chipset 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector)
WARRANTY INFORMATION
Manufacturing Warranty
3 Years
Part ID: #CAN-02167
Last Updated: 2 days ago
MSI H410M PRO-E Intel 10th Gen Micro-ATX MotherboardPRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard without any issue. MSI H410M PRO-E motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically. The most important thing of DIY is expandability. MSI H410M PRO-E motherboards feature plenty possibility for prosumers’ need. Stable LAN, faster storage and USB transfer speed and other expandable connectors are ready to enlarge your flexibility. MSI H410M PRO-E motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier. MSI H410M PRO-E motherboards are designed to satisfy any professional workflow. Elevate your listening pleasure and enjoy extreme sound quality. Moreover, with years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. The extensive features let you fine-tune your system teo deliver reliable maximum performance. MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules and configurations.MSI H410M PRO-E FeaturesSupports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socketSupports DDR4 Memory, up to 2933(Max) MHzCore Boost: With premium layout and digital power design to support more cores and provide better performance.DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.Audio Boost: Reward your ears with studio grade sound qualitySteel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
