Product Description

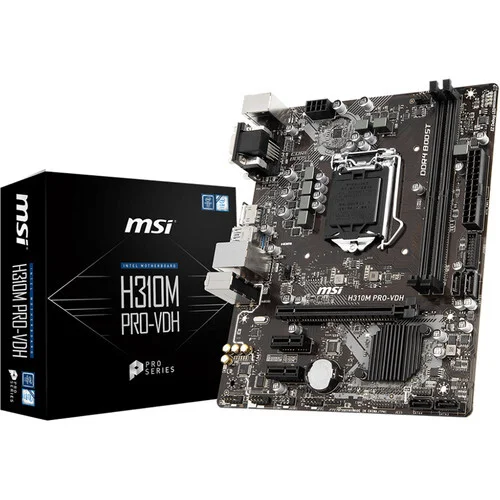

Engineered by MSI, this motherboard is designed for **LGA1151** socket processors, featuring a **Micro-ATX** form factor, and supporting high-speed **DDR4** memory, providing a reliable foundation for custom desktop systems. Currently, the lowest price in Bangladesh for this item is **8,500 ৳**, with active inventory listings tracked from Sell Tech, Ultra Technology.
Part ID: #CAN-02160
Last Updated: 1 week ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
Motherboard Basic Info
Chipset
Intel H310
Form Factor
Micro-ATX
Memory Specifications
Memory Type
Memory Slots: 2 x 288-Pin -Memory Support: DDR4 2133, 2400, 2666 MHz -Maximum Capacity: 32 GB -Channel Architecture: Dual Channel -ECC Support Non-ECC Unbuffered
Connectivity
VGA
1 x VGA
Connector & Ports (MB)
HDMI
1 x HDMI
USB (s)
4 x USB 2.0 Type-A 2 x USB 3.1 Gen 1 Type-A
Audio
Realtek ALC887 (7.1-Channel)
Internal I/O Ports
Display: 1 x VGA 1 x DVI-D 1 x HDMI Audio: 3 x 3.5 mm xpansion Slots: 1 x PCIe 3.0 x16 2 x PCIe 2.0 x1 USB 1 x USB 3.1 Gen 1 Header (Supports 2 USB Type-A Ports) 1 x USB 2.0 Header (Supports 2 USB Type-A Ports) Multi-GPU Support: None Air Cooling: 1 x 4-Pin CPU 1 x 4-Pin System Power Connectors 1 x 24-Pin Mainboard 1 x 8-Pin CPU Security Chassis Intrusion, TPM Module Audio; None Diagnostics: Clear CMOS Legacy: 1 x Serial
Supported Storage
-SATA 4 x SATA III M.2 None U.2 None
Part ID: #CAN-02160
Last Updated: 1 week ago
MSI H310M PRO-VDH is a Micro-ATX motherboard designed for 8th Gen Intel processors with an LGA 1151 socket. It is based on the Intel H310 chipset and supports dual-channel DDR4 memory with speeds of 2133, 2400, and 2666 MHz. The motherboard can handle up to 32 GB of non-ECC unbuffered RAM across its two 288-pin slots. For storage, the motherboard offers four SATA III ports but does not include M.2 or U.2 connectors. Audio is managed by the Realtek ALC887 codec, providing 7.1-channel surround sound. In terms of connectivity, the board is equipped with various internal I/O ports, including one VGA, one DVI-D, and one HDMI for display, along with three 3.5 mm audio jacks. It has one PCIe 3.0 x16 slot and two PCIe 2.0 x1 slots for expansion. For USB connectivity, there is one USB 3.1 Gen 1 header supporting two USB Type-A ports and one USB 2.0 header also supporting two USB Type-A ports. Externally, the board features four USB 2.0 Type-A and two USB 3.1 Gen 1 Type-A ports. The board supports standard security features like chassis intrusion detection and a TPM module, although it lacks multi-GPU support. Cooling is handled by one 4-pin CPU fan header and one 4-pin system fan header. Power is supplied through a 24-pin mainboard connector and an 8-pin CPU connector. The form factor of this motherboard is Micro-ATX, making it a compact and versatile option for small to medium-sized builds.MSI H310M PRO-VDH 8th Gen DDR4 LGA 1151 Micro-ATX Motherboard FeaturesSupports 8th Gen Intel® Core™ / Pentium® Gold/ Celeron® Processors for LGA 1151 socketSupports DDR4 Memory, up to 2666MHzAudio Boost: Reward your ears with studio grade sound quality.EZ Debug LED: Easiest way to troubleshoot.X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.Micro-ATX Form FactorIntel H310 Chipset4 x SATA III Ports1 x PCIe 3.0 x16 Slot2 x PCIe 2.0 x1 SlotsRealtek ALC887 7.1-Channel HD AudioRTL8111H Gigabit LAN..
