Status
In Stock
4 listings tracked
Lowest Deal
25,700
Best Deal
Price Range
25,700 to 26,500
Save 3%
Product Description
Engineered by MSI, this motherboard is featuring a **ATX** form factor and supporting high-speed **DDR5** memory, providing a reliable foundation for custom desktop systems. You can buy this component starting from **25,700 ৳**, compared dynamically across 3 major computer shops.
Part ID: #CAN-01822
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Ultra Technology

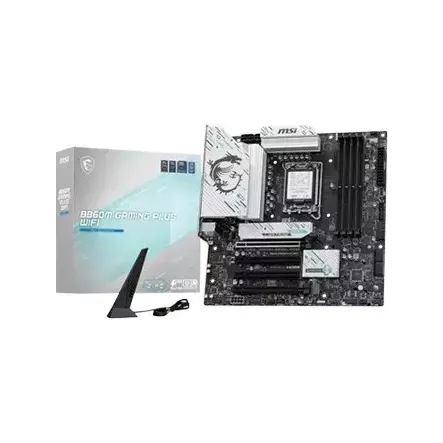

MSI B860M GAMING PLUS WIFI LGA1851 Micro ATX Motherboard
|
In Stock | 25,700 | 2 hours ago | |
|
TechLand BD
MSi B860M Gaming Plus Wifi Intel Core Ultra LGA1851 DDR5 Micro ATX Motherboard
|
In Stock | 25,900 | 2 hours ago | |
|
TechLand BD
MSI B860M GAMING PLUS Wi-Fi 7 DDR5 Intel LGA1851 Micro ATX Motherboard
|
In Stock | 25,900 | 2 hours ago | |
|
UCC
MSI B860M GAMING PLUS WIFI LGA1851 Micro ATX Motherboard
|
In Stock | 26,500 | 2 hours ago |
Historical Pricing Trend
Product Specifications
General Specifications
LAN
Realtek® 8126 5Gbps LAN
SKU
B860M GAMING PLUS WIFI
USB
2x USB 2.0 (Rear)<br>
4x USB 2.0 (Front)<br>
2x USB 5Gbps Type A (Rear)<br>
1x USB 5Gbps Type C (Rear)<br>
4x USB 5Gbps Type A (Front)<br>
1x USB 10Gbps Type A (Rear)<br>
1x USB 10Gbps Type C (Front)
HDMI
1x HDMI <br>
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
Audio
Realtek® ALC897 Codec<br>
7.1-Channel High Definition Audio
Brand
MSI
Model
B860M GAMING PLUS WIFI
PCI-E
4x PCI-E x16 slot<br>
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)<br>
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)<br>
PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)<br>
PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)<br>
Slots
4x PCI-E x16 slot<br>
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)<br>
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)<br>
PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)<br>
PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)<br>
Stock
In Stock
Wi-Fi
Intel® Wi-Fi 7<br>
The Wireless module is pre-installed in the M.2 (Key-E) slot<br>
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps<br>
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Socket
LGA 1851
Chipset
INTEL B860
Storage
3x M.2<br>
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices<br>
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices<br>
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices<br>
4x SATA 6G<br>
Warranty
3 Years
Form Factor
Micro ATX
Display Port
1x DisplayPort<br>
Support DisplayPort 1.4, maximum resolution of 4K 60Hz*<br>
1x Type-C DisplayPort<br>
Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
Supported CPU
Supports Intel® Core™ Ultra Processors (Series 2)
Memory Capacity
4x DDR5 UDIMM, Maximum Memory Capacity 256GB<br>
Memory Support 8600 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s<br>
Max. overclocking frequency:<br>
• 1DPC 1R Max speed up to 8600+ MT/s<br>
• 1DPC 2R Max speed up to 7200+ MT/s<br>
• 2DPC 1R Max speed up to 4800+ MT/s<br>
• 2DPC 2R Max speed up to 4800+ MT/s<br>
Supports Intel® POR Speed and JEDEC Speed<br>
Supports Memory Overclocking and Intel® XMP 3.0<br>
Supports Dual-Controller Dual-Channel mode<br>
Supports Non-ECC, Un-buffered memory<br>
Supports CUDIMM
Internal I/O Ports
1x Thunderbolt5 card connector(JTBT5, support RTD3)<br>
1x Power Connector(ATX_PWR)<br>
2x Power Connector(CPU_PWR)<br>
1x Power Connector(PCIE_PWR 8pin)<br>
1x CPU Fan<br>
1x Combo Fan (Pump_Sys Fan)<br>
3x System Fan<br>
2x Front Panel (JFP)<br>
1x Chassis Intrusion (JCI)<br>
1x Front Audio (JAUD)<br>
1x Com Port (JCOM)<br>
1x Tuning Controller connector(JDASH)<br>
2x Addressable V2 RGB LED connector (JARGB_V2)<br>
1x RGB LED connector(JRGB)<br>
1x TPM pin header(Support TPM 2.0)<br>
4x USB 2.0 ports<br>
4x USB 5Gbps Type A ports<br>
1x USB 10Gbps Type C ports
Part ID: #CAN-01822
Last Updated: 2 days ago
MSI B860M GAMING PLUS WIFI LGA1851 Micro ATX Motherboard is a powerful and feature-packed motherboard designed for Intel’s latest LGA 1851 socket processors, including the Intel Core Ultra Series 2. Built on the Intel B860 chipset, this motherboard offers exceptional performance, reliability, and expansion options, making it an excellent choice for gamers and professionals alike.Performance & MemoryEquipped with four DDR5 UDIMM slots, the B860M GAMING PLUS WIFI supports up to 256GB of RAM, with overclocking speeds reaching up to 8600+ MT/s. It supports Intel XMP 3.0 for memory overclocking, ensuring smooth multitasking and high-speed performance for intensive workloads.Storage & ExpansionThis motherboard features three M.2 slots, with one supporting PCIe 5.0 x4 speeds directly from the CPU, ensuring ultra-fast storage performance. Additionally, it includes four SATA 6G ports for traditional storage solutions. The PCI-E 5.0 x16 slot provides high-speed connectivity for the latest GPUs, while additional PCI-E 4.0 slots ensure further expansion options.Connectivity & NetworkingFor seamless connectivity, the motherboard is equipped with Intel Wi-Fi 7, supporting speeds up to 5.8Gbps, and Realtek 5Gbps LAN, providing ultra-fast wired connections. Multiple USB 10Gbps and 5Gbps ports, including USB Type-C, ensure compatibility with a wide range of devices.Audio & DisplayThe Realtek ALC897 7.1-channel HD audio codec delivers immersive sound for gaming and entertainment. With HDMI 2.1, DisplayPort 1.4, and Thunderbolt 4 support, users can experience up to 8K@60Hz display resolution.Backed by a 3-year warranty, the MSI B860M GAMING PLUS WIFI is an excellent choice for high-performance gaming and professional computing...
