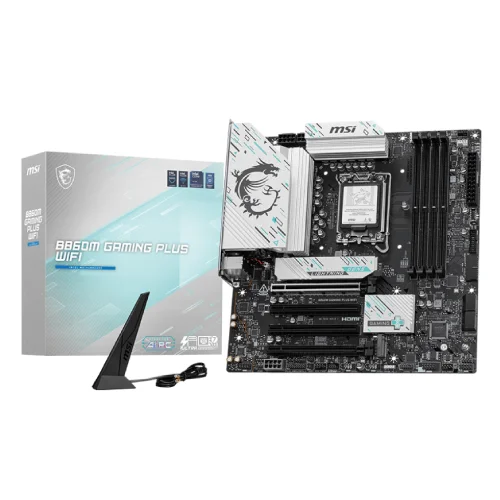

MSI B860M GAMING PLUS WIFI LGA 1851 Micro ATX Motherboard

Status
In Stock
4 stores
Lowest 25,900 BDT
Price Range Single price listing
MSI B860M GAMING PLUS WIFI LGA 1851 Micro ATX Motherboard

Product Description

MSI B860M GAMING PLUS WIFI LGA 1851 Micro ATX Motherboard

For gamers and professionals seeking unparalleled performance, reliability, and customization options, the MSI B860M GAMING PLUS WIFI LGA 1851 Micro ATX Motherboard is the ultimate solution. With its compact design, top-tier processing power, and cutting-edge connectivity, this motherboard redefines modern computing.

Key Features and Technical Specifications

  • Supports Intel Core Ultra Processors (Series 2) via LGA 1851 socket and DDR5 memory speeds up to 8800+ MT/s
  • Multiple M.2 slots, including a flagship PCIe 5.0 x4 slot for cutting-edge NVMe SSDs
  • Next-generation Intel Wi-Fi 7 technology and high-speed Realtek LAN connection (up to 5Gbps)
  • 12+1+1+1 phase VRM with MSI's patented Core Boost technology and superior cooling solutions
  • Thunderbolt 4 port via USB Type-C and multiple display outputs, including HDMI 2.1 and DisplayPort 1.4

Exclusive MSI Technologies

Advanced Cooling Solutions

The MSI B860M GAMING PLUS WIFI LGA 1851 Micro ATX Motherboard features exclusive cooling solutions, including the EZ M.2 Shield Frozr II, designed to keep operating temperatures stable even during the most intense gaming sessions and workloads.

Upgrade Your Computing Experience

With its future-proof design, harmonious blend of power and efficiency, and next-generation connectivity, the MSI B860M GAMING PLUS WIFI LGA 1851 Micro ATX Motherboard is the perfect choice for demanding users seeking a seamless computing experience.

Part ID: #CAN-01071 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Creatus Computer MSI B860M GAMING PLUS WIFI LGA 1851 Micro ATX Motherboard
In Stock 25,699 4 hours ago
Buy Now
Star Tech MSI B860M GAMING PLUS WIFI LGA 1851 Micro ATX Motherboard
In Stock 25,900 1 week ago
Buy Now
Sell Tech MSI B860M GAMING PLUS WIFI LGA 1851 Micro ATX Motherboard
In Stock 25,900 4 hours ago
Buy Now
Skyland BD MSI B860M GAMING PLUS WIFI LGA 1851 Micro ATX Motherboard
In Stock 25,900 3 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU Supports Intel Core Ultra Processors (Series 2), LGA1851 Socket
Chipset INTEL B860
Form Factor mATX Form Factor 243.84mmx243.84mm
Audio Realtek ALC897 Codec 7.1-Channel High Definition Audio

Expansion Slots

PCI 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
M.2 Socket 3x M.2

Memory

Type DDR5
Slots 4 x DIMM
Supported Memory Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 8800+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM
Maximum Memory Maximum Memory Capacity 256GB

Graphics

Graphics 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Connector & Ports

HDMI 1x HDMI 2.1
Display Port (s) 1x DisplayPort 1.4a
USB (s) 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 1x USB 5Gbps Type C (Rear) 4x USB 5Gbps Type A (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front)
LAN Port (s) Intel Killer E5000 5Gbps LAN
Wireless Communication module Intel Killer BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4**, MLO, 4KQAM
Supported Storage 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices 4x SATA 6G
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio 1x Front Audio (JAUD)
Internal I/O Ports 1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports

Warranty Information

Manufacturing Warranty 3 Year warranty

Key Features

Model B860M GAMING PLUS WIFI
Supported CPU Intel Core Ultra Processors (Series 2), LGA 1851
Supported RAM 4x DDR5, Max 256GB, 8800+ MT/s (OC)
Graphics Output 1x HDMI, 1x DisplayPort, 1x Type-C (Thunderbolt 4)
Features 3x M.2, Intel Killer E5000 5Gbps LAN, Wi-Fi 7, Bluetooth 5.4
Part ID: #CAN-01071 Last Updated: 1 month ago
