Product Description
Engineered by MSI, this motherboard is featuring a **ATX** form factor and supporting high-speed **DDR5** memory, providing a reliable foundation for custom desktop systems. Currently, the lowest price in Bangladesh for this item is **26,500 ৳**, with active inventory listings tracked from TechLand BD, UCC, Ultra Technology.
Part ID: #CAN-01821
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Ultra Technology
MSI B860 GAMING PLUS WIFI LGA1851 ATX Motherboard
|
In Stock | 26,500 | 2 hours ago | |
|
TechLand BD
MSI B860 GAMING PLUS Wi-Fi 7 DDR5 LGA1851 ATX Motherboard
|
In Stock | 26,700 | 2 hours ago | |
|
UCC
MSI B860 GAMING PLUS WIFI LGA1851 ATX Motherboard
|
In Stock | 27,500 | 2 hours ago |
Historical Pricing Trend
Product Specifications
General Specifications
LAN
Intel® Killer™ E5000 5Gbps LAN
SKU
B860 GAMING PLUS WIFI
USB
4x USB 2.0 (Rear) <br>
4x USB 2.0 (Front) <br>
2x USB 5Gbps Type A (Rear) <br>
4x USB 5Gbps Type A (Front) <br>
2x USB 10Gbps Type A (Rear) <br>
1x USB 10Gbps Type C (Front)
HDMI
1x HDMI™ <br>
Support HDMI™ 2.1, maximum resolution of 4K 60Hz* <br>
<br>
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Audio
Realtek® ALC897 Codec <br>
7.1-Channel High Definition Audio
Brand
MSI
Model
B860 GAMING PLUS WIFI
PCI-E
4x PCI-E x16 slot <br>
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) <br>
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) <br>
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) <br>
PCI_E4 Gen PCIe 4.0 supports up to x1 (From Chipset)
Slots
4x PCI-E x16 slot <br>
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) <br>
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) <br>
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) <br>
PCI_E4 Gen PCIe 4.0 supports up to x1 (From Chipset)
Stock
In Stock
Wi-Fi
Intel® Killer™ BE1750x Wi-Fi 7 <br>
The Wireless module is pre-installed in the M.2 (Key-E) slot <br>
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps <br>
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be <br>
<br>
* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.
Socket
LGA 1851
Chipset
INTEL B860
Storage
3x M.2 <br>
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices <br>
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices <br>
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices <br>
4x SATA 6G <br>
<br>
*Please refer to the manual for M.2 SSD heatsink restrictions.
Warranty
3 Years
Bluetooth
Supports Bluetooth® 5.4**, MLO, 4KQAM <br>
<br>
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.
Form Factor
ATX
Memory Type
DDR5
Display Port
1x DisplayPort <br>
Support DisplayPort 1.4, maximum resolution of 4K 60Hz* <br>
1x Type-C DisplayPort <br>
Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* <br>
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Supported CPU
Supports Intel® Core™ Ultra Processors (Series 2) <br>
LGA 1851
Memory Capacity
4x DDR5 UDIMM, Maximum Memory Capacity 256GB <br>
Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s <br>
Max. overclocking frequency: <br>
• 1DPC 1R Max speed up to 8800+ MT/s <br>
• 1DPC 2R Max speed up to 7200+ MT/s <br>
• 2DPC 1R Max speed up to 6400+ MT/s <br>
• 2DPC 2R Max speed up to 5600+ MT/s <br>
<br>
Supports Intel® POR Speed and JEDEC Speed <br>
Supports Memory Overclocking and Intel® XMP 3.0 <br>
Supports Dual-Controller Dual-Channel mode <br>
Supports Non-ECC, Un-buffered memory <br>
Supports CUDIMM <br>
<br>
• The DIMM slots on this motherboard only have single-sided latches. <br>
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Internal I/O Ports
1x Thunderbolt5 card connector(JTBT5, support RTD3) <br>
1x Power Connector(ATX_PWR) <br>
2x Power Connector(CPU_PWR) <br>
1x Power Connector(PCIE_PWR 8pin) <br>
1x CPU Fan <br>
1x Combo Fan (Pump_Sys Fan) <br>
4x System Fan <br>
1x EZ Conn-header (JAF_1) <br>
2x Front Panel (JFP) <br>
1x Chassis Intrusion (JCI) <br>
1x Front Audio (JAUD) <br>
1x Com Port (JCOM) <br>
1x Tuning Controller connector(JDASH) <br>
2x Addressable V2 RGB LED connector (JARGB_V2) <br>
1x RGB LED connector(JRGB) <br>
1x TPM pin header(Support TPM 2.0) <br>
4x USB 2.0 ports <br>
4x USB 5Gbps Type A ports <br>
1x USB 10Gbps Type C ports
Part ID: #CAN-01821
Last Updated: 2 days ago

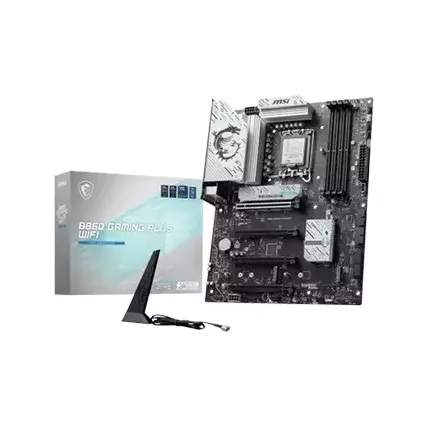

The MSI B860 GAMING PLUS WIFI LGA1851 ATX Motherboard is a powerhouse designed for gamers and high-performance PC users. Built with the Intel B860 chipset, it supports the latest Intel Core Ultra Processors (Series 2), ensuring seamless compatibility and outstanding performance.This motherboard features an LGA 1851 socket, offering robust processing power for demanding tasks. The ATX form factor provides ample space for powerful components, making it an excellent choice for gaming rigs and professional setups.Memory & StorageWith four DDR5 UDIMM slots, the board supports up to 256GB RAM and offers blazing-fast speeds up to 8600+ MT/s (OC). This allows for smooth multitasking, high-speed gaming, and content creation. Storage options include three M.2 slots, supporting PCIe 5.0 and PCIe 4.0, ensuring ultra-fast data transfer speeds, along with four SATA 6G ports for additional storage needs.Connectivity & NetworkingThe MSI B860 GAMING PLUS WIFI motherboard features Intel Wi-Fi 7, delivering high-speed wireless connectivity with up to 5.8Gbps bandwidth. The Realtek 8126 5Gbps LAN ensures stable wired internet performance for seamless gaming and streaming.Expansion & PortsEquipped with four PCI-E x16 slots, including PCIe 5.0 x16 support, this motherboard allows for high-performance GPU installations. It also features multiple USB ports, including USB 10Gbps Type-C, USB 5Gbps Type-A, and Thunderbolt™ 4 for ultra-fast data transfer.Durability & WarrantyDesigned with MSI’s premium build quality, it ensures durability, reliability, and long-term performance. The motherboard comes with a 3-year warranty, making it a reliable choice for gaming and professional use. Experience top-tier performance and seamless connectivity with the MSI B860 GAMING PLUS WIFI ATX Motherboard, the perfect foundation for your next gaming PC build!..
