Product Description
Engineered by MSI, this motherboard is designed for **AM5** socket processors, featuring a **Micro-ATX** form factor, and supporting high-speed **DDR5** memory, providing a reliable foundation for custom desktop systems. PCPartsBD lists the best deal for this item at **23,200 ৳** after tracking live prices across leading BD tech merchants.
Part ID: #CAN-09641
Last Updated: 2 hours ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech

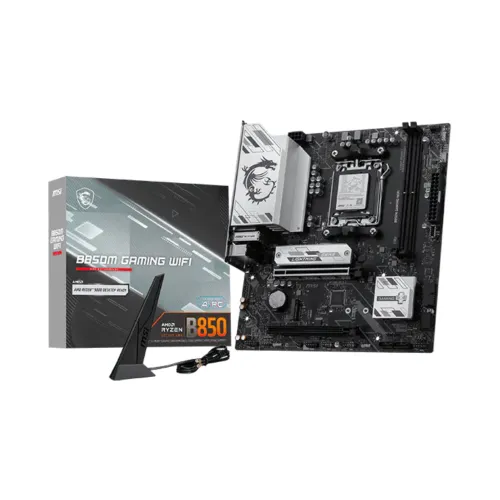

MSI B850M GAMING WIFI7 AM5 mATX Motherboard
|
In Stock | 23,200 | 2 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset
AMD B850
BIOS
Flash BIOS Button
Form Factor
mATX 226mmx243.84mm
Audio
Realtek ALC897 7.1-Channel High Definition Audio
Expansion Slots
PCI
2x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
M.2 Socket
2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
Memory
Type
DDR5
Slots
2x UDIMM
Supported Memory
Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 8000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only
Maximum Memory
128GB
Graphics
Graphics
1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz
Connector & Ports
HDMI
1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz
Display Port (s)
1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz
USB (s)
2x USB 2.0 (Rear) 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 1x USB 5Gbps Type C (Rear) 2x USB 5Gbps Type A (Front) 1x USB 10Gbps Type C (Front)
LAN Port (s)
Realtek 8126 5G LAN
Wireless Communication module
Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.9Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM
Supported Storage
2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot • Supports up to PCIe 4.0 x4 • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Audio
1x Front Audio (JAUD)
Internal I/O Ports
1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
TPM (Trusted Platform Module )
1x TPM pin header(Support TPM 2.0)
Others
Special Features
4x EZ Debug LED 1x EZ Memory Detection LED
Bundled Software
Support for Windows 11 64-bit
Warranty Information
Manufacturing Warranty
3 Years Warranty
Key Features
Model
B850M GAMING WIFI
Supported CPU
Ryzen 9000/ 8000/ 7000 Series for Socket AM5
Supported RAM
2x DDR5, Up to 8200 (OC) MT/s, Max 128GB
Graphics Output
1x HDMI 2.1, 1x DisplayPort 1.4
Features
Realtek 8126 5G LAN, Wi-Fi 7, Bluetooth 5.4
Part ID: #CAN-09641
Last Updated: 2 hours ago
The MSI B850M GAMING WIFI AM5 mATX Motherboard is built for AMD Ryzen 9000, 8000, and 7000 Series desktop processors on the AM5 socket. This Motherboard runs on the AMD B850 chipset and supports two DDR5 UDIMM slots with a maximum capacity of 128GB. DDR5 memory speeds reach up to 8200 MT/s via overclocking, with JEDEC speeds supported from 4800 to 5600 MT/s for broad compatibility. AMD EXPO and dual-channel memory support maximize bandwidth and performance across all supported Ryzen processor generations. The MSI B850M GAMING WIFI AM5 Motherboard features a primary PCIe 5.0 x16 slot delivering up to 128GB/s bandwidth for next-generation GPU performance. A secondary PCIe 4.0 x4 slot from the chipset provides additional expansion capability for other peripherals and cards. Two M.2 slots include M.2_1 supporting PCIe 5.0 x4 from the CPU and M.2_2 supporting PCIe 4.0 x4 for ultra-fast NVMe storage. Both M.2 slots benefit from M.2 Shield Frozr thermal protection that prevents throttling and keeps SSDs running at peak speeds. The MSI B850M GAMING WIFI mATX Motherboard has four SATA 6G ports support RAID 0, 1, and 10 configurations for flexible traditional storage setups. The MSI WIFI7 Motherboard includes a pre-installed Wi-Fi 7 module supporting 2.4GHz, 5GHz, and 6GHz bands at up to 2.9Gbps with Bluetooth 5.4, MLO, and 4KQAM. A Realtek 8126 5G LAN controller delivers premium wired network performance for low-latency gaming and streaming. Onboard graphics output includes HDMI 2.1 and DisplayPort 1.4, both supporting up to 4K 60Hz resolution. This MSI B850M GAMING WIFI AMD Motherboard has realtek ALC897 powers 7.1-channel HD audio for immersive studio-grade sound quality. The MSI AMD AM5 Motherboard features four EZ Debug LEDs and one EZ Memory Detection LED for simplified hardware troubleshooting. An extended PWM heatsink and enhanced circuit design keep even high-end processors running at full speed consistently. The MSI mATX Motherboard measures 226×243.84mm and fully supports Windows 11 64-bit operating systems.Buy MSI B850M GAMING WIFI7 AM5 mATX Motherboard from Star TechIn Bangladesh, you can get original MSI B850M GAMING WIFI7 AM5 mATX Motherboard From Star Tech. We have a large collection of latest MSI Motherboard to purchase for your Desktop. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The MSI B850M GAMING WIFI7 AM5 mATX Motherboard has 3 year warranty.
