Product Description

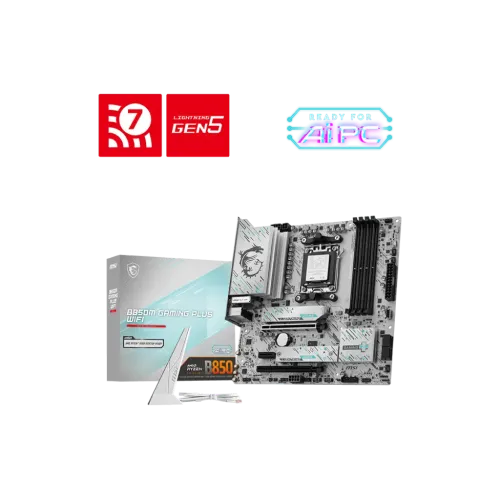

Unlock Unbridled Performance with the MSI B850M GAMING PLUS WIFI AM5 Motherboard
Gaming enthusiasts, content creators, and power users who demand exceptional performance with modern connectivity will find the MSI B850M GAMING PLUS WIFI AM5 Motherboard to be a robust solution. Built on the AMD B850 chipset and AM5 socket foundation, this micro-ATX form factor board supports the newest AMD Ryzen 9000, 8000, and 7000 Series desktop processors.
Key Features and Performance Highlights
Technical Specifications:
- Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors for Socket AM5
- DDR5 memory support with speeds up to 8200+ MT/s (overclocked) and 256GB maximum capacity
- Realtek ALC897 7.1-channel high-definition audio and HDMI 2.1 and DisplayPort 1.4 outputs
- Realtek 8126 5G LAN and Wi-Fi 7 (802.11be) support with MU-MIMO technology
- Comprehensive internal connectivity, including multiple fan connection points, RGB lighting connectors, and TPM 2.0 compatibility
Proprietary Technologies and Advanced Features
**Advanced Overclocking and Memory Support**
The MSI B850M GAMING PLUS WIFI AM5 Motherboard incorporates sophisticated overclocking features, positioning it as an excellent choice for demanding computing tasks and gaming applications. With support for dual-channel memory architecture, AMD EXPO compatibility, and memory overclocking, this board enables users to achieve exceptional speeds and take full advantage of their Ryzen 9000 Series processors.
Part ID: #CAN-01074
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
MSI B850M GAMING PLUS WIFI7 AM5 mATX Motherboard
|
In Stock | 23,500 | 1 week ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset
AMD B850
BIOS
Flash BIOS Button
Form Factor
mATX 243.84mmx243.84mm
Audio
Realtek ALC897 7.1-Channel High Definition Audio
Expansion Slots
PCI
2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
M.2 Socket
2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors) M2_2 slot • Supports up to PCIe 4.0 x4 (For Ryzen 9000/ 8700/ 8600/ 8400/ 7000 Series processors) • Supports up to PCIe 4.0 x2 (For Ryzen 8500/ 8300 Series processors)
Memory
Type
DDR5
Slots
4 x UDIMM
Supported Memory
Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only*
Maximum Memory
256GB
Graphics
Graphics
1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz
Connector & Ports
HDMI
1x HDMI 2.1
Display Port (s)
1x DisplayPort 1.4
USB (s)
4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front)
LAN Port (s)
Realtek 8126 5G LAN
Wireless Communication module
Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.9Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM
Supported Storage
2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors) M2_2 slot • Supports up to PCIe 4.0 x4 (For Ryzen 9000/ 8700/ 8600/ 8400/ 7000 Series processors) • Supports up to PCIe 4.0 x2 (For Ryzen 8500/ 8300 Series processors)
RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Audio
1x Front Audio (JAUD)
Internal I/O Ports
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
TPM (Trusted Platform Module )
1x TPM pin header(Support TPM 2.0)
Others
Special Features
4x EZ Debug LED 1x EZ Memory Detection LED
Bundled Software
Support for Windows 11 64-bit
Warranty Information
Manufacturing Warranty
3 Years Warranty
Key Features
Model
B850M GAMING PLUS WIFI
Supported CPU
Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
Supported RAM
4x DDR5, up to 8200 (OC) MT/s
Graphics Output
1x HDMI, 1x DisplayPort
Features
Realtek 8126 5G LAN, Wi-Fi 7, Bluetooth 5.4
