Product Description

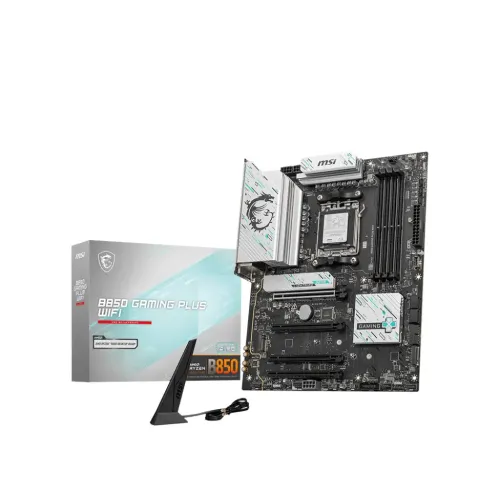

Unleash Gaming Performance with the MSI B850 GAMING PLUS WIFI7 Motherboard
Designed for gamers, multimedia makers, and PC enthusiasts, the MSI B850 GAMING PLUS WIFI7 AM5 ATX Motherboard is a powerful solution that delivers cutting-edge performance. With its robust features, future-proof connectivity, and exceptional reliability, this motherboard is the perfect choice for building a strong gaming PC.
Key Features and Benefits
- Supports AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors on the AM5 socket
- Four DDR5 DIMM slots with up to 256GB of DDR5 memory and overclocked rates of 8200+ MT/s
- Four PCIe x16 slots, including one PCIe 5.0 slot for high-end GPUs and expansion cards
- Three M.2 slots, including one PCIe 5.0 x4 slot for next-generation NVMe SSDs
- Realtek 8126VB 5G LAN and Wi-Fi 7 with Bluetooth 5.4 for high-speed wired and wireless performance
- 7.1-channel high-definition audio with Realtek ALC897 chipset
Advanced Technologies and Features
The MSI B850 GAMING PLUS WIFI7 Motherboard boasts several advanced technologies that enhance its performance and functionality. With its Wi-Fi 7 solution, you can enjoy ultra-fast wireless connectivity, while the Realtek 8126VB 5G LAN ensures seamless high-speed networking. The motherboard also features a robust cooling system, with multiple fan headers and a comprehensive thermal design that helps to keep your system running smoothly and quietly.
Part ID: #CAN-01089
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
MSI B850 GAMING PLUS WIFI7 AM5 ATX Motherboard
|
In Stock | 28,800 | 1 week ago | |
|
Creatus Computer
MSI B850 GAMING PLUS WIFI7 AM5 ATX Motherboard
|
In Stock | 28,800 | 4 hours ago | |
|
Sell Tech
MSI B850 GAMING PLUS WIFI7 AM5 ATX Motherboard
|
In Stock | 28,800 | 4 hours ago | |
|
PCB Store
MSI B850 GAMING PLUS WIFI7 AM5 ATX Motherboard
|
In Stock | 28,900 | 4 hours ago | |
|
Ultra Technology
MSI B850 GAMING PLUS WIFI7 MOTHERBOARD
|
In Stock | 30,000 | 3 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Chipset
AMD B850
BIOS
Flash BIOS Button
Form Factor
ATX 243.84mm x 304.8mm
Audio
Realtek ALC897 7.1-Channel High Definition Audio
Expansion Slots
PCI
4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)
M.2 Socket
3x M.2
Memory
Type
DDR5
Slots
4 x UDIMM
Supported Memory
max. 256GB, DDR5 Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8200+ MT/s 1DPC 2R Max speed up to 6400+ MT/s 2DPC 1R Max speed up to 6400+ MT/s 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only
Maximum Memory
256GB
Graphics
Graphics
1x DisplayPort Support DisplayPort 1.2, maximum resolution of 4K 60Hz
Connector & Ports
Display Port (s)
1x DisplayPort 1.2
USB (s)
4x USB 2.0 (Rear) 4x USB 2.0 (Front) 1x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) 1x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear
LAN Port (s)
1x Realtek 8126VB 5G LAN
Wireless Communication module
Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM
Supported Storage
3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 22110/2280 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2, supports 2280/2260 devices 4x SATA 6G M2_1 slot Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors)
RAID
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Audio
1x Front Audio (JAUD)
Internal I/O Ports
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports
TPM (Trusted Platform Module )
1x TPM pin header(Support TPM 2.0)
Others
Special Features
4x EZ Debug LED
Warranty Information
Manufacturing Warranty
3 Years Warranty
Key Features
Model
B850 GAMING PLUS WIFI
Supported CPU
AMD Socket AM5 for AMD Ryzen 9000, 8000 & 7000 Series
Supported RAM
4x DDR5, up to 256GB, 8200+ MT/s (OC)
Graphics Output
1x DisplayPort 1.2, 4K 60Hz Resolution
Features
Realtek 8126VB 5G Ethernet, Wi-Fi 7, Bluetooth 5.4
