Product Description

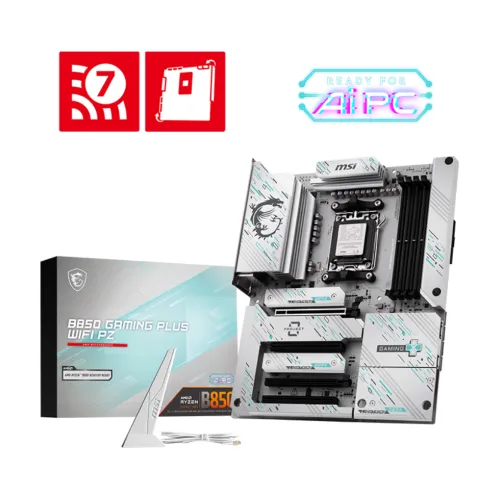

MSI B850 GAMING PLUS WIFI PZ AM5 ATX Motherboard
Power Your Gaming and Creative Workloads
This motherboard is perfect for gamers, creators, and power users who demand cutting-edge technology and next-generation performance. With its exceptional processing capability, ultra-fast memory, and future-ready expansion options, the MSI B850 GAMING PLUS WIFI PZ AM5 ATX Motherboard is designed to deliver unparalleled performance and reliability.
Key Features and Performance Highlights
- Supports AMD Ryzen 9000, 8000, and 7000 Series desktop CPUs for exceptional processing capability
- 4 DDR5 UDIMM slots with speeds up to 8200 MT/s (OC) for ultra-fast responsiveness and memory performance
- 4 PCIe x16 slots, including one PCIe 5.0 x16 slot for high-end graphics cards
- 3x M.2 slots with up to PCIe 5.0 x4 speeds and 4x SATA 6G ports for abundant storage options
- Realtek 8126VB 5G LAN, Wi-Fi 7, and Bluetooth 5.4 for high-speed networking and seamless wireless performance
Proprietary Technologies and Premium Features
The MSI B850 GAMING PLUS WIFI PZ AM5 ATX Motherboard features a range of premium technologies and features, including:
- Advanced overclocking support and compatibility with AMD EXPO technology for easy memory optimization
- Realtek ALC897 7.1-channel high-definition audio codec for immersive and crystal-clear sound
- Flash BIOS Button for easy BIOS updates
- Multiple RGB headers (JARGB_V2 & JRGB) for custom lighting and aesthetics
- Wide range of internal I/O ports for easy build, customization, and upgrade
Part ID: #CAN-01105
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
TechLand BD
MSI B850 GAMING PLUS WIFI PZ AM5 ATX Motherboard
|
In Stock | 31,900 | 4 hours ago | |
|
Star Tech
MSI B850 GAMING PLUS WIFI PZ AM5 ATX Motherboard
|
In Stock | 33,000 | 1 week ago | |
|
Sell Tech
MSI B850 GAMING PLUS WIFI PZ AM5 ATX Motherboard
|
In Stock | 33,000 | 4 hours ago | |
|
Ultra Technology
MSI B850 GAMING PLUS WIFI PZ Motherboard
|
Check Stock | 32,500 | 3 hours ago | |
|
UCC
MSI B850 GAMING PLUS WIFI PZ AM5 DDR5 PCIe 5.0 ATX Motherboard
|
Check Stock | 33,500 | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Chipset
AMD B850
BIOS
Flash BIOS Button
Form Factor
ATX 243.84mmx304.8mm
Audio
Realtek ALC897 7.1-Channel High Definition Audio
Expansion Slots
PCI
4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)
M.2 Socket
3x M.2
Memory
Type
DDR5
Slots
4 x UDIMM
Supported Memory
Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8200+ MT/s 1DPC 2R Max speed up to 6400+ MT/s 2DPC 1R Max speed up to 6400+ MT/s 2DPC 2R Max speed up to 6000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only
Maximum Memory
256GB
Graphics
Graphics
1x DisplayPort Support DisplayPort 1.2, maximum resolution of 4K 60Hz
Connector & Ports
Display Port (s)
1x DisplayPort 1.2
USB (s)
4x USB 2.0 (Rear) 4x USB 2.0 (Front) 1x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) 1x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear)
LAN Port (s)
1x Realtek 8126VB 5G LAN
Wireless Communication module
Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM
Supported Storage
3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2, supports 2280/2260 devices 4x SATA 6G M2_1 slot Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors) M2_2 slot Supports up to PCIe 4.0 x4 (For Ryzen 9000/ 7000 Series processors) Supports up to PCIe 4.0 x2 (For Ryzen 8500/8300 Series processors)
RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices RAID 5 configuration is only supported by Ryzen 9000 Series Processors
Audio
1x Front Audio (JAUD)
Internal I/O Ports
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports
TPM (Trusted Platform Module )
1x TPM pin header(Support TPM 2.0)
Others
Special Features
4x EZ Debug LED
Warranty Information
Manufacturing Warranty
3 Years Warranty
Key Features
Model
B850 GAMING PLUS WIFI PZ
Supported CPU
AMD Socket AM5 for AMD Ryzen 9000, 8000 & 7000 Series
Supported RAM
4x DDR5, up to 256GB, 8200 MT/s (OC)
Graphics Output
1x DisplayPort 1.2, 4K 60Hz Resolution
Features
Realtek 8126VB 5G LAN, Wi-Fi 7, Bluetooth 5.4
Part ID: #CAN-01105
Last Updated: 1 month ago
