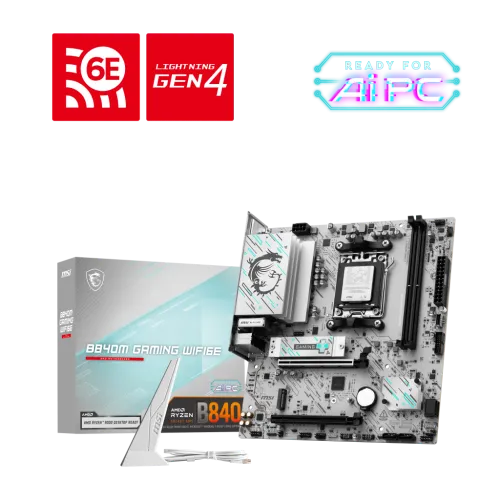

MSI B840M GAMING WIFI6E AM5 mATX Motherboard

Status
In Stock
6 stores
Lowest 19,400 BDT
Price Range Single price listing
MSI B840M GAMING WIFI6E AM5 mATX Motherboard

Product Description

**Unlock Next-Gen Performance with the MSI B840M GAMING WIFI6E AM5 mATX Motherboard**

This motherboard is designed for serious gamers and content creators who demand speed, stability, and modern features. The MSI B840M GAMING WIFI6E AM5 mATX Motherboard delivers advanced memory support, high-speed connectivity, and superior audio and graphics options, making it the perfect choice for building a compact yet powerful gaming PC.

**Key Features and Benefits:**
  • Supports the latest AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors for Socket AM5
  • Features dual DDR5 UDIMM slots, supporting up to 128GB of high-speed memory
  • Offers 2x PCIe x16 expansion slots, with the primary slot supporting PCIe 4.0 x16 for high-end GPUs
  • Includes 2x M.2 PCIe 4.0 x4 slots, both supporting 2280/2260 SSDs, and 4x SATA 6Gbps ports with support for RAID 0, 1, and 10
  • Features Realtek 8125D 2.5G LAN for fast and stable wired connections, as well as Wi-Fi 6E and Bluetooth 5.3 for seamless wireless device connections
**Advanced Technologies and Features:**

MSI B840M GAMING WIFI6E: A Symphony of Performance and Innovation

The MSI B840M GAMING WIFI6E motherboard is built around the advanced AMD B840 chipset, providing a robust foundation for high-performance gaming and content creation. Its support for the latest Ryzen 9000, 8000, and 7000 Series Desktop Processors ensures compatibility with the latest CPU architectures, while its dual DDR5 UDIMM slots and high-speed M.2 slots provide ample storage and memory options. Additionally, the motherboard features a range of innovative technologies, including EZ Debug LEDs and EZ Memory Detection LED, making it easier to troubleshoot and optimize system performance. With its compact micro-ATX form factor and robust feature set, the MSI B840M GAMING WIFI6E is the perfect choice for building a powerful and visually stunning gaming PC.
Part ID: #CAN-01036 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Creatus Computer MSI B840M GAMING WIFI6E AM5 mATX Motherboard
In Stock 18,999 5 hours ago
Ultra Technology MSI B840M GAMING WIFI6E AM5 mATX Motherboard
In Stock 19,000 4 hours ago
Star Tech MSI B840M GAMING WIFI6E AM5 mATX Motherboard
In Stock 19,400 1 week ago
Sell Tech MSI B840M GAMING WIFI6E AM5 mATX Motherboard
In Stock 19,400 4 hours ago
Skyland BD MSI B840M GAMING WIFI6E AM5 mATX Motherboard
In Stock 19,400 4 hours ago
PCB Store MSI B840M GAMING WIFI6E AM5 mATX Motherboard
Check Stock 19,000 5 hours ago

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset AMD B840
BIOS Flash BIOS Button
Form Factor mATX 226mmx243.84mm
Audio Realtek ALC897 Codec 7.1-Channel High Definition Audio

Expansion Slots

PCI 2x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset) PCI_E1 slot Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
M.2 Socket 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G

Memory

Type DDR5
Slots 2 x UDIMM
Supported Memory Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8000+ MT/s 1DPC 2R Max speed up to 7200+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only
Maximum Memory 128GB

Graphics

Graphics 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz

Connector & Ports

HDMI 1x HDMI 2.1
Display Port (s) 1x DisplayPort 1.4
USB (s) 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front)
LAN Port (s) Realtek 8125D 2.5G LAN
Wireless Communication module Wi-Fi 6E Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA
Supported Storage 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G
RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Audio 1x Front Audio (JAUD)
Internal I/O Ports 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)

Others

Special Features 4x EZ Debug LED 1x EZ Memory Detection LED

Warranty Information

Manufacturing Warranty 3 Years Warranty

Key Features

Model B840M GAMING WIFI6E
Supported CPU Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
Supported RAM 2x DDR5, up to 8000 (OC) MT/s
Graphics Output 1x HDMI, 1x DisplayPort
Features Realtek 8125D 2.5G LAN, Wi-Fi 6E, Bluetooth 5.3
Part ID: #CAN-01036 Last Updated: 1 month ago
