Product Description

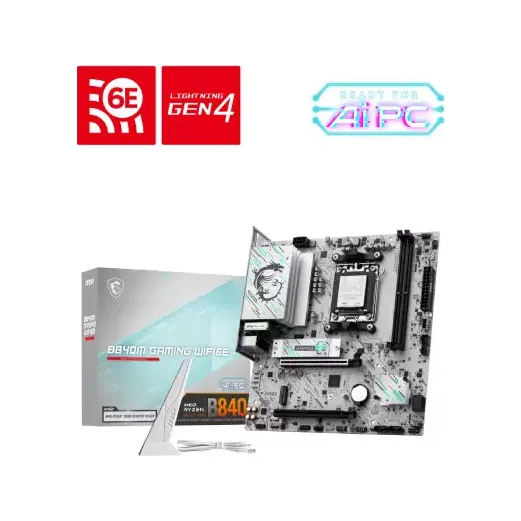

Engineered by MSI, this motherboard is designed for **AM5** socket processors and supporting high-speed **DDR5** memory, providing a reliable foundation for custom desktop systems. PCPartsBD lists the best deal for this item at **18,600 ৳** after tracking live prices across leading BD tech merchants.
Part ID: #CAN-01463
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
TechLand BD
MSI B840M GAMING WIFI6E DDR5 AM5 mATX Motherboard
|
In Stock | Call for Price | 3 hours ago | |
|
TechLand BD
MSI B840M GAMING WIFI6E AM5 DDR5 mATX Motherboard
|
In Stock | 18,200 | 3 hours ago | |
|
UCC
MSI B840M GAMING WIFI6E AM5 DDR5 mATX Motherboard
|
In Stock | 19,500 | 3 hours ago |
Historical Pricing Trend
Product Specifications
General Specifications
LAN
Realtek 8125D 2.5G LAN
USB
2x USB 2.0 (Rear)4x USB 2.0 (Front)4x USB 5Gbps Type A (Rear)2x USB 5Gbps Type A (Front)1x USB 5Gbps Type C (Front)
WiFi
Wi-Fi 6E SolutionThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4GbpsSupports 802.11 a/ b/ g/ n/ ac/ ax
Audio
Realtek ALC897 Codec7.1-Channel High Definition Audio
Slots
2x PCI-E x16 slotPCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)PCI_E1 slot• Supports PCIe 4.0 x16 (For Ryzen 9000/ 7000 Series processors)• Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors)• Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)
Memory
2x DDR5 UDIMM, Maximum Memory Capacity 128GBMemory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/sRyzen 9000 Series Processors max. overclocking frequency:• 1DPC 1R Max speed up to 8000+ MT/s• 1DPC 2R Max speed up to 7200+ MT/sSupports AMD POR Speed and JEDEC SpeedSupports Memory Overclocking and AMD EXPOTMSupports Dual-Channel modeSupports Non-ECC, Un-buffered memorySupports CUDIMM, Clock Driver bypass mode only
Chipset
AMD B840
Graphics
1x HDMISupport HDMI 2.1, maximum resolution of 4K 60Hz*1x DisplayPortSupport DisplayPort 1.4, maximum resolution of 4K 60Hz*
Warranty
3 Years
Bluetooth
Supports Bluetooth 5.3, FIPS, FISMA
Form Factor
mATX226mmx243.84mm
Supported CPU
Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop ProcessorsSocket AM5
Other Features
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Operating System
Support for Windows 11 64-bit
Special Features
4x EZ Debug LED1x EZ Memory Detection LED
Supported Storage
2x M.2M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devicesM.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices4x SATA 6G
External I/O Ports
Clear CMOS ButtonUSB 5G2.5G LANWi-Fi / BluetoothAudio connectorsFlash BIOS ButtonHDMIDisplayPortUSB 2.0
Internal I/O Ports
1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan2x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Com Port (JCOM)3x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 5Gbps Type A ports1x USB 5Gbps Type C ports
