Product Description

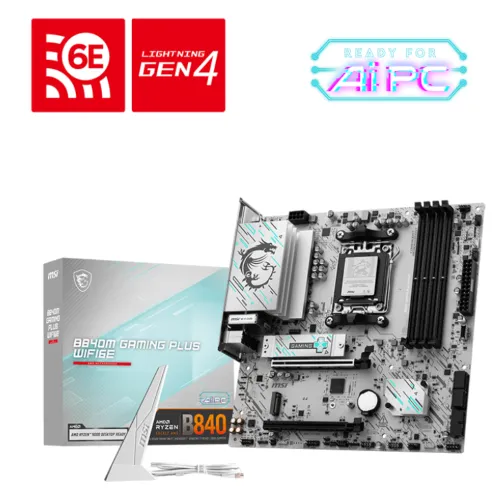

Upgrade Your Gaming Experience with the MSI B840M GAMING PLUS WIFI6E Motherboard
Designed for gamers and PC enthusiasts, the MSI B840M GAMING PLUS WIFI6E Motherboard offers a powerful blend of performance, speed, and reliability. This motherboard is built to deliver exceptional processing efficiency, making it an ideal choice for those seeking an efficient and future-ready build.
Key Features and Benefits
- Supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors for exceptional processing efficiency
- DDR5 dual-channel memory support up to 8000+ MT/s (OC) for faster data transfer and smoother multitasking
- Realtek 8125D 2.5G LAN and integrated Wi-Fi 6E for blazing-fast and stable networking performance
- Lightning Gen 4 x4 M.2 slots, PCIe 4.0 expansion, and front USB Type-C support for ultra-fast data transmission
- Supports Windows 11 64-bit, TPM 2.0, and multiple RGB headers for seamless compatibility and customization
Advanced Technologies for Enhanced Performance
The MSI B840M GAMING PLUS WIFI6E Motherboard features a range of advanced technologies designed to deliver exceptional performance and stability. Key features include a 7+2+1 phase direct CPU power design, 8-pin CPU power connector, and 6-layer PCB with 2oz thickened copper for maximum stability and durability. Additionally, the motherboard's Frozr Guard thermal design includes extended heatsinks, MOSFET thermal pads rated for 7W/mK, and an M.2 Shield Frozr II to maintain optimal temperatures during long gaming sessions.
Part ID: #CAN-01291
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
MSI B840M GAMING PLUS WIFI6E AM5 mATX Motherboard
|
In Stock | Call for Price | 1 week ago | |
|
Sell Tech
MSI B840M GAMING PLUS WIFI6E AM5 mATX Motherboard
|
In Stock | 19,400 | 4 hours ago | |
|
Skyland BD
MSI B840M GAMING PLUS WIFI6E AM5 mATX Motherboard
|
In Stock | 19,500 | 3 hours ago | |
|
Ultra Technology
MSI B840M GAMING PLUS WIFI6E AM5 mATX Motherboard
|
Check Stock | Call for Price | 3 hours ago | |
|
UCC
MSI B840M GAMING PLUS WIFI6E AM5 DDR5 Motherboard
|
Check Stock | 20,500 | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset
AMD B840
Form Factor
mATX 243.84mmx243.84mm
Audio
Realtek ALC897 Codec 7.1-Channel High Definition Audio
Expansion Slots
PCI
2x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 4.0 x16 (For Ryzen 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)
M.2 Socket
2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
Memory
Type
DDR5
Slots
4x UDIMM
Supported Memory
Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8000+ MT/s 1DPC 2R Max speed up to 6400+ MT/s 2DPC 1R Max speed up to 6400+ MT/s 2DPC 2R Max speed up to 5600+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only
Maximum Memory
256GB
Graphics
Graphics
1x HDMI Support HDMI™ 2.1, maximum resolution of 4K 60Hz
Connector & Ports
HDMI
1x HDMI 2.1
USB (s)
4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear)
LAN Port (s)
Realtek 8125D 2.5G LAN
Wireless Communication module
Wi-Fi 6E Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA
Supported Storage
2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G
RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Audio
1x Front Audio (JAUD)
Internal I/O Ports
1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports
TPM (Trusted Platform Module )
1x TPM pin header(Support TPM 2.0)
Others
Special Features
4x EZ Debug LED 1x EZ Memory Detection LED
Warranty Information
Manufacturing Warranty
3 Years Warranty
Key Features
Model
B840M GAMING PLUS WIFI6E
Supported CPU
AMD Ryzen 9000/ 8000/ 7000 Series for Socket AM5
Supported RAM
4x DDR5, up to 8000 (OC) MT/s, Max 256GB
Graphics Output
1x HDMI 2.1, Support Maximum Resolution of 4K 60Hz
Features
2x M.2, Realtek 8125D 2.5G LAN, Wi-Fi 6E, Bluetooth 5.3
Part ID: #CAN-01291
Last Updated: 1 month ago
