Product Description

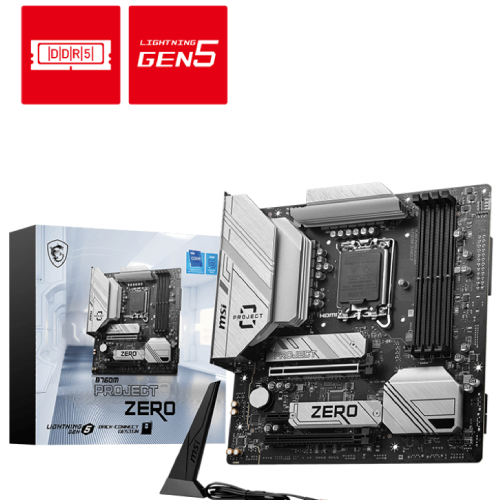

MSI B760M PROJECT ZERO m-ATX Motherboard
The MSI B760M PROJECT ZERO m-ATX Motherboard is a powerhouse designed to improve your computing experience, ideal for gamers, content creators, and professionals who demand high-performance systems. This motherboard is built to deliver exceptional performance, power efficiency, and dependability.
Key Features and Benefits
- Support for 14th/13th/12th Gen Intel Processors (LGA 1700) for seamless compatibility and performance.
- DDR5 Memory Support with speeds up to 7800+(OC) MHz for enhanced gaming and content creation.
- PCIe 5.0 Slot and Lightning Gen 4 x4 M.2 for lightning-fast storage and graphics performance.
- Realtek 2.5Gbps LAN and Intel Wi-Fi 6E for reliable and fast networking.
- 4x SATA 6G and RAID Support for expandable storage and data protection.
MSI's Proprietary Technologies
Enhanced Power Design with a 12+1+1 Duet Rail Power System, two 8-pin CPU power connections, Core Boost, and Memory Boost for peak performance.
The MSI B760M PROJECT ZERO m-ATX Motherboard also features a Premium Thermal Solution, including the Extended Heatsink Design and M.2 Shield Frozr, for efficient temperature management and high-performance systems.
Additionally, the motherboard boasts an Audio Boost function, providing a studio-grade sound experience and improved overall audio quality.
Part ID: #CAN-01061
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Nexus Computer
MSI B760M PROJECT ZERO m-ATX Motherboard
|
In Stock | 23,800 | 3 hours ago | |
|
TechLand BD
MSI B760M PROJECT ZERO DDR5 mATX Motherboard
|
In Stock | 23,999 | 4 hours ago | |
|
Star Tech
MSI B760M PROJECT ZERO m-ATX Motherboard
|
In Stock | 24,000 | 1 week ago | |
|
Sell Tech
MSI B760M PROJECT ZERO m-ATX Motherboard
|
In Stock | 24,000 | 4 hours ago | |
|
Creatus Computer
MSI B760M PROJECT ZERO m-ATX Motherboard
|
In Stock | 24,400 | 4 hours ago | |
|
Skyland BD
MSI B760M PROJECT ZERO m-ATX Motherboard
|
In Stock | 24,500 | 3 hours ago | |
|
Computer Village
MSI B760M PROJECT ZERO m-ATX Motherboard
|
In Stock | 24,510 | 3 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700
Chipset
INTEL B760
Form Factor
mATX 243.84mmx243.84mm
Audio
Realtek ALC897 Codec 7.1-Channel High Performance Audio Supports S/PDIF output
Expansion Slots
PCI
2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
M.2 Socket
1x M.2
Memory
Type
DDR5
Slots
4x DIMM
Supported Memory
Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile
Maximum Memory
192GB
Graphics
Graphics
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* Support DP 1.4, maximum resolution of 4K 60Hz*
Connector & Ports
HDMI
1x HDMI 1.4
Display Port (s)
1x DisplayPort
USB (s)
4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s)
Realtek 2.5Gbps LAN
Wireless Communication module
Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA
Supported Storage
2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Internal I/O Ports
Internal I/O Ports: 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports BACK PANEL PORTS: USB 2.0 DisplayPort 1.4 USB 3.2 Gen 2 10Gbps Type-A 2.5G LAN Port Wi-Fi / Bluetooth Antenna HD Audio Connectors HDMI™ 2.1 Port USB 3.2 Gen 2x2 20Gbps Type-C Optical S/PDIF OUT
TPM (Trusted Platform Module )
1x TPM pin header(Support TPM 2.0)
Others
Special Features
4x EZ Debug LED
Warranty Information
Manufacturing Warranty
3 years
Key Features
Model
B760M PROJECT ZERO
Supported CPU
14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM
4x DDR5, Max 192GB
Graphics Output
1x HDMI, 1x DisplayPort
Features
Realtek 2.5Gbps LAN, Intel Wi-Fi 6E
