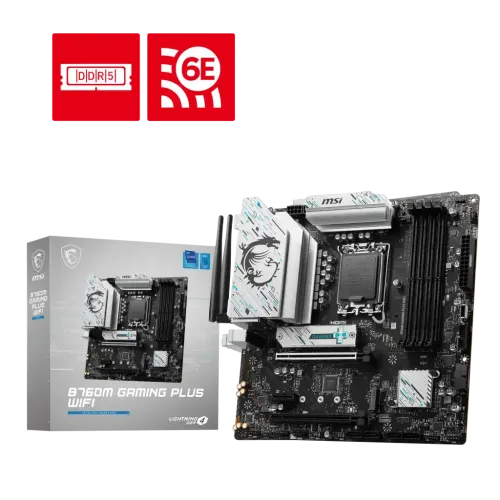

MSI B760M GAMING PLUS WIFI 6E mATX Motherboard

Status
In Stock
6 stores
Lowest 18,800 BDT
Price Range 18,800 to 19,210 BDT Save 2%
MSI B760M GAMING PLUS WIFI 6E mATX Motherboard

Product Description

MSI B760M GAMING PLUS WIFI 6E mATX Motherboard

Power up your gaming experience with the MSI B760M GAMING PLUS WIFI 6E mATX Motherboard, designed for enthusiasts and gamers who demand flexibility and high-performance computing. This motherboard delivers a powerful and efficient computing experience, perfect for demanding activities like online gaming and multimedia streaming.

Key Technical Features

  • Powers 14th, 13th, and 12th Gen Intel Core, Pentium, and Celeron processors utilizing the LGA 1700 socket
  • Supports up to 192GB DDR5 RAM with overclocking potential of 6800+MHz (OC)
  • Delivers excellent graphics output with two HDMI 2.1 connections
  • Features dual 2.5G LAN and Wi-Fi 6E technology for smooth and high-speed networking
  • Includes dual DisplayPort 1.4 for increased display versatility and high-resolution visuals

Advanced Technologies

Wi-Fi 6E and 2.5G LAN - Experience seamless online gaming and multimedia streaming with the latest Wi-Fi 6E technology and dual 2.5G LAN connectivity.

Specifications

  • Form Factor: m-ATX
  • Chipset: INTEL B760
  • Audio: Realtek ALC897 Codec 7.1-Channel High Definition Audio
  • Expansion Slots: 2x PCI-E x16, 1x PCI-E x1, and 3x PCI_E
  • Storage: 2x M.2 M.2_1 and M.2_2 slots, 4x SATA 6G ports
Part ID: #CAN-01039 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Ultra Technology MSI B760M GAMING PLUS WIFI m ATX Motherboard
In Stock 18,800 3 hours ago
Buy Now
Nexus Computer MSI B760M GAMING PLUS WIFI 6E mATX Motherboard
In Stock 18,850 3 hours ago
Buy Now
Star Tech MSI B760M GAMING PLUS WIFI 6E mATX Motherboard
In Stock 18,900 1 week ago
Buy Now
Sell Tech MSI B760M GAMING PLUS WIFI 6E mATX Motherboard
In Stock 19,200 4 hours ago
Buy Now
Skyland BD MSI B760M GAMING PLUS WIFI 6E mATX Motherboard
In Stock 19,200 3 hours ago
Buy Now
Computer Village MSI B760M GAMING PLUS WIFI 6E mATX Motherboard
In Stock 19,210 4 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU Supports 14th/12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700
Chipset INTEL B760
Form Factor m-ATX 243.84mmx243.84mm
Audio Realtek ALC897 Codec 7.1-Channel High Definition Audio

Expansion Slots

PCI 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

Memory

Type DDR5
Slots 4
Supported Memory 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Maximum Memory 192GB

Graphics

Graphics 2x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz

Connector & Ports

Display Port (s) 2x DisplayPort 1.4
USB (s) 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 4x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen1 Type C (Front) 2x USB 3.2 Gen2 Type A (Rear)
LAN Port (s) Realtek RTL8125BG 2.5G LAN
Wireless Communication module Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA
Supported Storage 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio 7.1-Channel High Definition Audio
Internal I/O Ports x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen1 Type C ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)

Others

Special Features 1x EZ LED Control switch 4x EZ Debug LED 1x 2-Digit Debug Code LED

Warranty Information

Manufacturing Warranty 3 years

Key Features

Model B760M GAMING PLUS
Supported CPU 14th/ 13th /12th Gen Intel Core / Pentium / Celeron processors (LGA 1700)
Supported RAM 4x DDR5, Max 192GB, 6800+MHz (OC)
Graphics Output 2x HDMI2.1
Features 2.5G LAN, Wi-Fi 6E, Dual DisplayPort1. 4
Part ID: #CAN-01039 Last Updated: 1 month ago
