Product Description

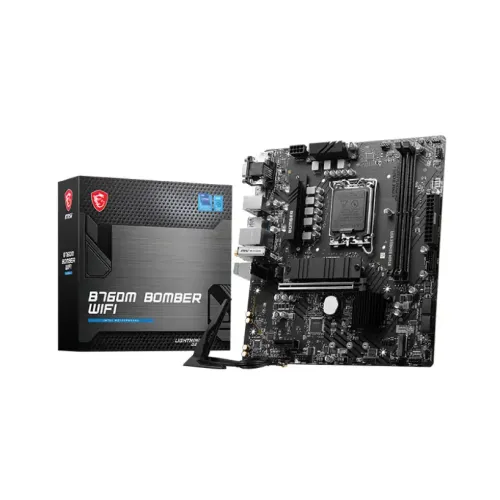

MSI B760M BOMBER WIFI mATX Motherboard
The MSI B760M BOMBER WIFI mATX Motherboard is designed for gaming enthusiasts who demand high-performance and cutting-edge features. This motherboard is perfect for those seeking a reliable and efficient platform for their gaming PC, offering superior performance, and advanced connectivity options.
Key Technical Features
- Supports 14th/13th/12th Gen Intel Core Processors: Ensures compatibility with a wide range of processors, including Pentium Gold and Celeron processors for the LGA 1700 socket.
- DDR5 Memory with Dual-Channel Configuration: Allows for fast and efficient data transfer at speeds of 6400+MHz (OC).
- PCIe 4.0 Slot: Offers lightning-fast gaming experiences with high-speed data transfer.
- 2.5G LAN with Wi-Fi 6E Solution: Provides upgraded network connectivity for professional and multimedia use.
- Realtek ALC897 Codec 7.1-Channel High Definition Audio: Ensures studio-grade sound quality for an immersive gaming experience.
Advanced Technologies and Performance Enhancements
The MSI B760M BOMBER WIFI Motherboard incorporates advanced technologies to enhance performance and efficiency. With its 12+1 Duet Rail Power System, P-PAK, and 8-pin + 4-pin CPU power connectors, the motherboard delivers stable power delivery and optimal performance. The motherboard also features Core Boost and Memory Boost technologies to further enhance performance. Additionally, the motherboard includes an extended heatsink and MOSFET thermal pads rated for 7W/mK, ensuring efficient heat dissipation, and supporting high-performance systems.
Part ID: #CAN-01038
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Nexus Computer
MSI B760M BOMBER WIFI mATX Motherboard
|
In Stock | 18,000 | 4 hours ago | |
|
Nexus Computer
MSI B760M BOMBER WIFI mATX Motherboard
|
In Stock | 18,100 | 4 hours ago | |
|
Star Tech
MSI B760M BOMBER WIFI mATX Motherboard
|
In Stock | 18,500 | 1 week ago | |
|
Sell Tech
MSI B760M BOMBER WIFI mATX Motherboard
|
In Stock | 18,500 | 4 hours ago | |
|
Computer Village
MSI B760M BOMBER WIFI mATX Motherboard
|
In Stock | 18,500 | 4 hours ago | |
|
PC House
MSI B760M BOMBER WIFI mATX Motherboard
|
In Stock | 18,500 | 4 hours ago | |
|
Skyland BD
MSI B760M BOMBER WIFI mATX Motherboard
|
In Stock | 19,200 | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA1700
Chipset
INTEL B760
Form Factor
mATX 220mmx243.84mm
Audio
Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Expansion Slots
PCI
5x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
Memory
Type
DDR5
Slots
2
Supported Memory
Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 6400+ MHz • 1DPC 2R Max speed up to 5600+ MHz Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Maximum Memory
96GB
Graphics
Graphics
1x HDMI Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz 1x D-Sub Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
Connector & Ports
HDMI
1x HDMI
Display Port (s)
1x DisplayPort
D-Sub (s)
1x D-Sub
USB (s)
2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front)
LAN Port (s)
Realtek RTL8125B 2.5Gbps LAN
Wireless Communication module
Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA
Supported Storage
2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Internal I/O Ports
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x TBT connector (JTBT, supports RTD3) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen1 Type C ports
TPM (Trusted Platform Module )
1x TPM pin header(Support TPM 2.0)
Others
Special Features
4x EZ Debug LED
Warranty Information
Manufacturing Warranty
3 years
Key Features
Model
B760M BOMBER WIFI
Supported CPU
14th/ 13th/13th Gen Intel Processors (LGA1700)
Supported RAM
2x DDR5, Max 192GB 6400+MHz (OC)
Graphics Output
1x HDMI, 1x DisplayPort, 1x D-Sub
Features
2x M.2 slot, 2.5G LAN with Wi-Fi 6E
