Status
In Stock
5 stores
Lowest Deal
17,700 BDT
Best Deal
Price Range
17,700 to 19,200 BDT
Save 8%
Product Description

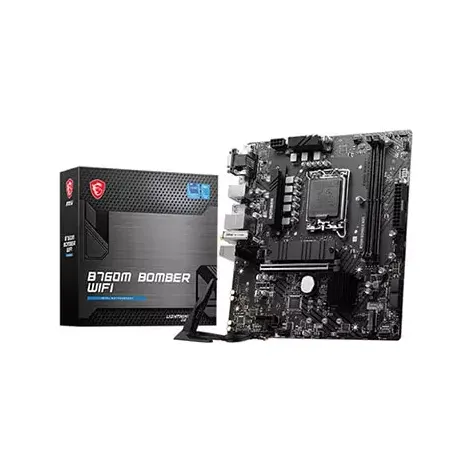

MSI B760M BOMBER WIFI DDR5 ATX Motherboard
Empowering Gamers and Content Creators
The MSI B760M BOMBER WIFI DDR5 ATX Motherboard is designed to deliver exceptional performance and versatility for gamers, content creators, and PC enthusiasts. With its feature-packed design and support for the latest Intel processors, this motherboard offers a reliable foundation for building a high-performance gaming PC or content creation workstation.
Main Features and Benefits
- Supports a wide range of Intel processors, including 14th, 13th, and 12th Gen Intel Core processors, Pentium Gold, and Celeron processors.
- Five PCIe expansion slots with PCIe 4.0 support for high-speed data transfer and flexible customization.
- DDR5 memory support with overclocking capabilities, allowing for memory speeds of up to 6400+ MHz and up to 96GB of DDR5 RAM.
- Ample connectivity options, including USB 2.0 and USB 3.2 Gen1 ports, a Realtek RTL8125B 2.5Gbps LAN port, and HDMI 2.1 and DisplayPort 1.4 connectors.
- Two M.2 slots, SATA ports, and support for RAID configurations for high-performance storage solutions.
Proprietary Technologies and Features
MSI has incorporated several key features into the B760M BOMBER WIFI DDR5 motherboard, including:
- Realtek ALC897 Codec for high-definition audio with 7.1-channel support and S/PDIF output.
- Intel Wi-Fi 6E module for fast wireless connectivity with support for MU-MIMO, Bluetooth 5.3, and various Wi-Fi standards.
- 4x EZ Debug LED indicators for simplified troubleshooting and diagnosis.
- TPM 2.0 pin header for enhanced security and protection of sensitive data.
Part ID: #CAN-01548
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
TechLand BD
MSI B760M BOMBER WIFI DDR5 ATX MOTHERBOARD
|
In Stock | 17,700 | 4 hours ago | |
|
Ultra Technology
MSI B760M BOMBER WIFI DDR5 ATX Motherboard
|
In Stock | 18,000 | 3 hours ago | |
|
UCC
MSI B760M BOMBER WIFI DDR5 MATX MOTHERBOARD
|
In Stock | 18,500 | 4 hours ago | |
|
Creatus Computer
MSI B760M BOMBER WIFI DDR5 mATX Motherboard
|
In Stock | 18,700 | 4 hours ago | |
|
Binary Logic
MSI B760M Bomber WIFI DDR5 mATX Motherboard
|
In Stock | 19,200 | 4 hours ago |
Historical Pricing Trend
Product Specifications
General Specifications
LAN
Realtek® RTL8125BG 2.5G LAN
USB
2x USB 2.0 4x USB 2.0 4x USB 3.2 Gen1 Type A 2x USB 3.2 Gen1 Type A
HDMI
1x HDMI™
WiFi
Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Slots
1x PCI-E x16 1x PCI-E x1 PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2 Gen PCIe 4.0 supports up to (From Chipset)
Memory
2x DDR5, Maximum Memory Capacity 96GB Memory 支持 DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 6400+ MHz • 1DPC 2R Max speed up to 5600+ MHz Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Chipset
INTEL B760
Warranty
3 Year's
Dimension
243.84mmx304.8mm
Supported CPU
Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700
Supported Storage
2x M.2 (Qty) M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G (Qty) * SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
External I/O Ports
Keyboard / Mouse DisplayPort 2.5G LAN USB 2.0 Wi-Fi / Bluetooth Audio Connectors USB 2.0 HDMI™ USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-C) S/PDIF-OUT
Internal I/O Ports
1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 2x USB 3.2 Gen1 Type A
Part ID: #CAN-01548
Last Updated: 1 month ago
