Status
In Stock
11 listings tracked
Lowest Deal
22,000
Best Deal
Price Range
22,000 to 25,500
Save 16%
Product Description

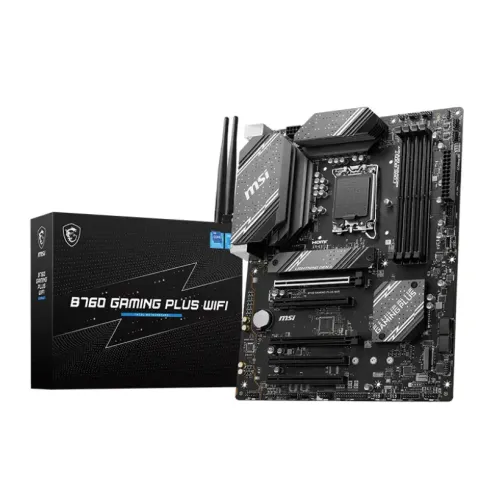

Engineered by MSI, this motherboard is designed for **LGA1700** socket processors, built on the **B760** chipset, featuring a **ATX** form factor, and supporting high-speed **DDR5** memory, providing a reliable foundation for custom desktop systems. Currently, the lowest price in Bangladesh for this item is **22,000 ৳**, with active inventory listings tracked from Star Tech, TechLand BD, PCB Store and other retailers.
Part ID: #CAN-01056
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
TechLand BD
MSI B760 GAMING PLUS WIFI DDR5 ATX MOTHERBOARD
|
In Stock | 22,000 | 3 hours ago | |
|
PC House
MSI B760 GAMING PLUS WIFI ATX Motherboard
|
In Stock | 22,200 | 2 hours ago | |
|
Star Tech
MSI B760 GAMING PLUS WIFI ATX Motherboard
|
In Stock | 22,500 | 3 hours ago | |
|
Sell Tech
MSI B760 GAMING PLUS WIFI ATX Motherboard
|
In Stock | 22,500 | 2 hours ago | |
|
Ultra Technology
MSI B760 Gaming Plus WiFi 12th Gen And 13th Gen ATX Motherboard
|
In Stock | 22,500 | 2 hours ago | |
|
Nexus Computer
MSI B760 GAMING PLUS WIFI ATX Motherboard
|
In Stock | 22,500 | 2 hours ago | |
|
Creatus Computer
MSI B760 GAMING PLUS WIFI ATX 13th & 12th Gen Motherboard
|
In Stock | 22,599 | 2 hours ago | |
|
Skyland BD
MSI B760 GAMING PLUS WIFI ATX Motherboard
|
In Stock | 22,800 | 2 hours ago | |
|
UCC
MSI MAG B760 GAMING PLUS WIFI DDR5 ATX Motherboard
|
In Stock | 23,300 | 3 hours ago | |
|
Binary Logic
MSI B760 GAMING PLUS WIFI Gen ATX Motherboard
|
In Stock | 25,500 | 3 hours ago | |
|
PCB Store
MSI B760 GAMING PLUS WIFI ATX Motherboard
|
Check Stock | 22,500 | 3 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA1700
Chipset
INTEL B760
Form Factor
ATX 243.84mmx304.8mm
Audio
Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Expansion Slots
PCI
5x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
Memory
Type
DDR5
Slots
4
Supported Memory
Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Maximum Memory
192GB
Graphics
Graphics
1x HDMI Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz
Connector & Ports
HDMI
1x HDMI
Display Port (s)
1x DisplayPort
USB (s)
4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen1 Type C (Front) 2x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear)
LAN Port (s)
Realtek RTL8125BG 2.5G LAN
Wireless Communication module
Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA
Supported Storage
2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Internal I/O Ports
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x TBT connector (JTBT, supports RTD3) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen1 Type C ports
TPM (Trusted Platform Module )
1x TPM pin header(Support TPM 2.0)
Others
Special Features
4x EZ Debug LED
Warranty Information
Manufacturing Warranty
3 years
Key Features
Model
B760 GAMING PLUS WIFI
Supported CPU
14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM
4x DDR5, Max 192GB 6800+MHz (OC)
Graphics Output
1x HDMI, 1x DisplayPort
Features
2x M.2 slot, 2.5G LAN with Wi-Fi 6E
Part ID: #CAN-01056
Last Updated: 2 days ago
The MSI B760 GAMING PLUS WIFI ATX Motherboard is a high-performance motherboard designed for gaming enthusiasts. It supports both 14th 13th and 12th Gen Intel Core, Pentium Gold, and Celeron processors for the LGA 1700 socket, ensuring compatibility with a wide range of processors. The MSI B760 GAMING PLUS WIFI Motherboard supports DDR5 memory with a dual-channel configuration, allowing for fast and efficient data transfer at speeds of 6800+MHz (OC). It features an enhanced power design with a 12+1 Duet Rail Power System, P-PAK, and 8-pin + 4-pin CPU power connectors, ensuring stable power delivery and optimal performance. The 14th Gen Motherboard also incorporates Core Boost and Memory Boost technologies to enhance performance further. For improved thermals, the motherboard includes an extended heatsink and MOSFET thermal pads rated for 7W/mK, ensuring efficient heat dissipation. Additional choke thermal pads are also included to support high-performance systems and provide a reliable gaming experience. The MSI B760 GAMING PLUS WIFI offers lightning-fast gaming experiences with a PCIe 4.0 slot, Lightning Gen 4 x4 M.2 slot with M.2 Shield Frozr, and Turbo USB 3.2 Gen 2 10G for high-speed data transfer. It also features a 2.5G LAN with Wi-Fi 6E solution, providing upgraded network connectivity for professional and multimedia use. The high-quality PCB is constructed with a 6-layer design using 2oz thickened copper for improved durability and performance. The MSI B760 GAMING PLUS WIFI Motherboard offers Audio Boost technology, and delivers studio-grade sound quality for an immersive gaming experience.Buy MSI B760 GAMING PLUS WIFI ATX Motherboard from Star TechIn Bangladesh, you can get the original MSI B760 GAMING PLUS WIFI ATX Motherboard From Star Tech. We have a large collection of the latest MSI Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The MSI B760 GAMING PLUS WIFI Motherboard comes with 3 years warranty.
