Product Description

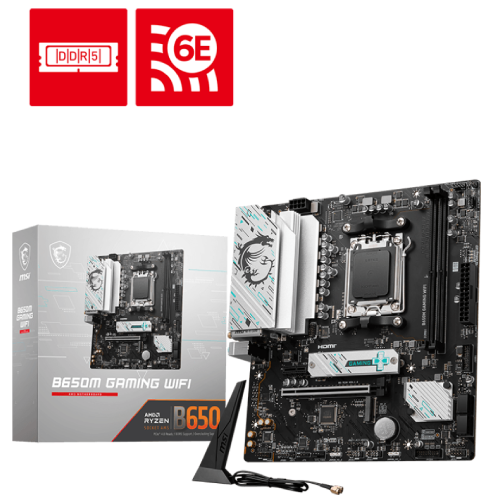

Upgrade Your Gaming Experience with the MSI B650M GAMING WIFI AM5 mATX Motherboard
The MSI B650M GAMING WIFI AM5 mATX Motherboard is a powerhouse designed to elevate your gaming experience to new heights. Whether you're a hardcore gamer or a content creator, this motherboard is built to deliver unparalleled performance, connectivity, and stability.
Key Features and Technical SpecificationsThe MSI B650M GAMING WIFI AM5 mATX Motherboard boasts the following key features:
- Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors for Socket AM5
- Up to 7800+(OC) MHz DDR5 memory support for optimal performance
- Lightning-fast data transfer speeds via Lightning Gen4 M.2 support and PCIe 4.0 slots
- Advanced connectivity options, including AMD Wi-Fi 6E and Bluetooth 5.3
- Robust construction with Steel Armor reinforcement to protect VGA cards
- Support for 2x M.2 NVMe storage devices and 4x SATA 6G ports
The MSI B650M GAMING WIFI AM5 mATX Motherboard features a range of advanced technologies that work together to deliver exceptional performance and stability:
- Core Boost and Memory Boost technologies for enhanced stability and compatibility
- AUDIO BOOST technology for studio-grade sound quality
- A high-quality 6-layer PCB made from 2oz thickened copper for superior durability and heat dissipation
Part ID: #CAN-01287
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
TechLand BD
MSI B650M GAMING WIFI mATX AM5 Motherboard
|
In Stock | 17,800 | 4 hours ago | |
|
PC House
MSI B650M GAMING WIFI AMD AM5 mATX Motherboard
|
In Stock | 17,999 | 4 hours ago | |
|
Creatus Computer
MSI B650M GAMING WIFI AM5 mATX Motherboard
|
In Stock | 18,000 | 4 hours ago | |
|
Skyland BD
MSI B650M GAMING WIFI AM5 mATX Motherboard
|
In Stock | 18,499 | 3 hours ago | |
|
Ultra Technology
MSI B650M GAMING WIFI AM5 mATX Motherboard
|
In Stock | 18,500 | 3 hours ago | |
|
Nexus Computer
MSI B650M GAMING WIFI AM5 mATX Motherboard
|
In Stock | 18,500 | 3 hours ago | |
|
PCB Store
MSI B650M GAMING WIFI AM5 mATX Motherboard
|
In Stock | 18,700 | 4 hours ago | |
|
Star Tech
MSI B650M GAMING WIFI AM5 mATX Motherboard
|
In Stock | 19,000 | 1 week ago | |
|
Sell Tech
MSI B650M GAMING WIFI AM5 mATX Motherboard
|
Check Stock | Call for Price | 4 hours ago | |
|
UCC
MSI B650M GAMING WIFI AMD AM5 MOTHERBOARD
|
Check Stock | 19,200 | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset
AMD B650
Form Factor
mATX 226mmx243.84mm
Audio
Realtek ALC897 Codec 7.1-Channel High Definition Audio
Expansion Slots
PCI
1x PCI-E x16 slot Supports x16/x1 • Supports x16 (For Ryzen 7000 Series processors) • Supports x8 (For Ryzen 7 8700G and Ryzen 5 8600G processors) • Supports x4 (For Ryzen 5 8500G processor) 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)
M.2 Socket
2x M.2
Memory
Type
DDR5
Slots
2
Supported Memory
7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO
Maximum Memory
128GB
Graphics
Graphics
1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz*
Connector & Ports
HDMI
1x HDMI
Display Port (s)
1x DisplayPort
USB (s)
2x USB 2.0 (Rear) 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 1x USB 5Gbps Type C (Rear) 4x USB 5Gbps Type A (Front)
LAN Port (s)
Realtek RTL8125BG 2.5Gbps LAN
Wireless Communication module
AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3
Supported Storage
2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices 4x SATA 6G • M2_2 supports PCIe 4.0 x2 speed when Ryzen 5 8500G is installed
RAID
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
Internal I/O Ports
INTERNAL IO 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 5Gbps Type A ports BACK PANEL PORTS DisplayPort HDMI USB 3.2 Gen 1 5Gbps (Type-A) 2.5G LAN Wi-Fi / Bluetooth Audio connectors Flash BIOS Button USB 3.2 Gen 1 5Gbps (Type-C) USB 3.2 Gen 1 5Gbps (Type-A) USB 2.0
TPM (Trusted Platform Module )
1x TPM pin header(Support TPM 2.0)
Warranty Information
Manufacturing Warranty
3 Years
Key Features
Model
B650M GAMING WIFI
Supported CPU
Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
Supported RAM
2x DDR5, up to 7800+(OC) MHz
Graphics Output
1x HDMI, 1x Display Port
Features
Supports Bluetooth 5.3, AMD Wi-Fi 6E
Part ID: #CAN-01287
Last Updated: 1 month ago
