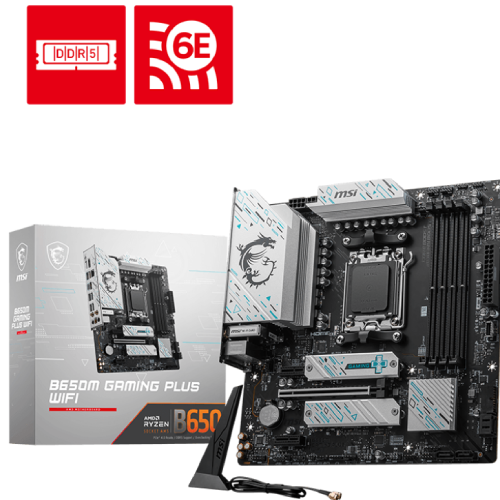

MSI B650M GAMING PLUS WIFI AM5 Motherboard

Status
In Stock
8 stores
Lowest Out of Stock
Price Range Single price listing
MSI B650M GAMING PLUS WIFI AM5 Motherboard

Product Description

Unleash Your Gaming Potential with the MSI B650M GAMING PLUS WIFI AM5 Motherboard

The MSI B650M GAMING PLUS WIFI AM5 motherboard is the ultimate choice for gamers and PC enthusiasts seeking a robust and high-performance foundation for their desktop computing setup. With its advanced features and support for AMD Ryzen 8000 and 7000 Series Desktop Processors, this motherboard delivers exceptional performance and immersive gaming experiences.

Key Features and Performance Highlights

  • Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
  • DDR5 memory support with speeds up to 7200+(OC) MHz
  • Realtek ALC897 Codec 7.1-Channel High Definition Audio
  • 2.5G LAN with Wi-Fi 6E Solution for seamless online gaming and connectivity
  • Supports up to 256GB of DDR5 memory and 4x M.2 slots for expanded storage options

Advanced Technologies for Enhanced Performance

The MSI B650M GAMING PLUS WIFI Motherboard features a range of advanced technologies designed to optimize performance and stability. The motherboard's premium thermal solution includes an extended heatsink design and M.2 Shield Frozr, ensuring optimal temperatures for high performance and continuous operation. Additionally, the motherboard's 10+2+1 Duet Rail Power System and dual 8-pin CPU power connectors provide stable and efficient power delivery, while the AUDIO BOOST technology provides studio-grade sound quality for an immersive gaming experience.

Part ID: #CAN-01314 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Star Tech MSI B650M GAMING PLUS WIFI AM5 Motherboard
In Stock Call for Price 1 week ago
Buy Now
Skyland BD MSI B650M GAMING PLUS WIFI AM5 Motherboard
In Stock 20,999 3 hours ago
Buy Now
Creatus Computer MSI B650M GAMING Plus WIFI AMD AM5 mATX Motherboard
In Stock 21,000 4 hours ago
Buy Now
Ultra Technology MSI B650M GAMING PLUS WIFI AM5 Motherboard
In Stock 21,200 3 hours ago
Buy Now
PC House MSI B650M GAMING Plus WIFI AMD AM5 mATX Motherboard
In Stock 21,500 4 hours ago
Buy Now
TechLand BD MSI B650M GAMING Plus WIFI AMD AM5 mATX Motherboard
In Stock 22,500 4 hours ago
Buy Now
PCB Store MSI B650M GAMING PLUS WIFI AM5 Motherboard
Check Stock 20,000 4 hours ago
Buy Now
UCC MSI B650M GAMING PLUS WIFI AM5 MOTHERBOARD
Check Stock 21,900 4 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset AMD B650
Form Factor mATX 243.84mmx243.84mm
Audio Realtek ALC897 Codec 7.1-Channel High Definition Audio

Expansion Slots

PCI 1x PCI-E x16 slot • Supports x16 (For Ryzen 7000 Series processors) • Supports x8 (For Ryzen 7 8700G and Ryzen 5 8600G processors) • Supports x4 (For Ryzen 5 8500G processor) 2x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)

Memory

Type DDR5
Slots 4x UDIMM
Supported Memory Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO™ Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6000+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5400+ MHz
Maximum Memory 256GB

Graphics

Graphics Support HDMI 2.1, maximum resolution of 4K 60Hz Support DP 1.4, the maximum resolution of 4K 60Hz

Connector & Ports

HDMI 1x HDMI
Display Port (s) 1x DisplayPort
USB (s) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front)
LAN Port (s) Realtek RTL8125BG 2.5Gbps LAN
Wireless Communication module AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3
Supported Storage 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G • M2_2 supports PCIe 4.0 x2 speed when Ryzen 5 8500G is installed
RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 for M.2 NVMe storage devices
Internal I/O Ports 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)

Others

Special Features 4x EZ Debug LED

Warranty Information

Manufacturing Warranty 3 Years

Key Features

Model B650M GAMING PLUS WIFI
Supported CPU Ryzen 9000/ 8000/ 7000 Processors for Socket AM5
Supported RAM 4x DDR5 7200+(OC) MHz
Graphics Output 1x HDMI, 1x Display Port
Features 2.5G LAN with Wi-Fi 6E Solution
Part ID: #CAN-01314 Last Updated: 1 month ago
