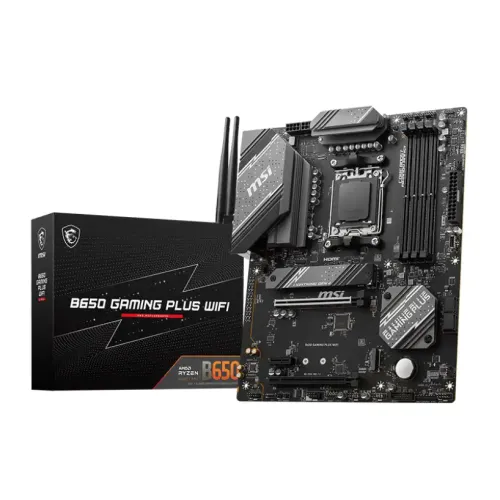

Unlock Unmatched Performance with the MSI B650 GAMING PLUS WIFI
Upgrade your gaming experience with the MSI B650 GAMING PLUS WIFI AMD AM5 Motherboard, designed for enthusiasts who demand the best. This cutting-edge motherboard is engineered to deliver lightning-fast performance, robust features, and seamless connectivity for the most demanding applications.
Key Features and Specifications
Technical Highlights:
- Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors for Socket AM5
- Quad-channel DDR5 memory support, up to 192GB, with speeds of 6000+(OC) MHz
- 2x HDMI and 1x DisplayPort for seamless graphics output
- 2.5G LAN with Wi-Fi 6E Solution for upgraded network capabilities
- 4x M.2 slots with PCIe 4.0 support, including Lightning Gen 4 x4 M.2 with M.2 Shield Frozr
- Realtek ALC897 Codec 7.1-Channel High Definition Audio
Enhanced Performance and Cooling Technologies
Advanced Features:
The MSI B650 GAMING PLUS WIFI Motherboard incorporates MSI's proprietary technologies, including an enhanced power design with a 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, and Memory Boost for stable and efficient performance. The motherboard also features a premium thermal solution with an extended heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads, and M.2 Shield Frozr, ensuring optimal cooling for high-performance systems.
Part ID: #CAN-01318
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
MSI B650 GAMING PLUS WIFI AMD AM5 Motherboard
|
In Stock | Call for Price | 1 week ago | |
|
Creatus Computer
MSI B650 GAMING PLUS WIFI AMD AM5 Motherboard
|
In Stock | 22,499 | 4 hours ago | |
|
Nexus Computer
MSI B650 GAMING PLUS WIFI AMD AM5 Motherboard
|
In Stock | 22,500 | 3 hours ago | |
|
PC House
MSI B650 GAMING PLUS WIFI AMD AM5 Motherboard
|
In Stock | 22,790 | 3 hours ago | |
|
Ultra Technology
MSI B650 GAMING PLUS WIFI AM5 AMD Motherboard
|
In Stock | 23,000 | 3 hours ago | |
|
Sell Tech
MSI B650 GAMING PLUS WIFI AMD AM5 Motherboard
|
Check Stock | Call for Price | 4 hours ago | |
|
Skyland BD
MSI B650 GAMING PLUS WIFI AMD AM5 Motherboard
|
Check Stock | 22,499 | 3 hours ago | |
|
TechLand BD
MSI B650 GAMING PLUS WIFI AM5 ATX MOTHERBOARD
|
Check Stock | 23,500 | 4 hours ago | |
|
PCB Store
MSI B650 GAMING PLUS WIFI AM5 Motherboard
|
Check Stock | 23,500 | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset
AMD B650
Form Factor
ATX 243.84mmx304.8mm
Audio
Realtek ALC897 Codec 7.1-Channel High Definition Audio
Expansion Slots
PCI
2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Memory
Type
DDR5
Slots
4 DIMMs
Supported Memory
Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6000+ MHz • 1DPC 2R Max speed up to 6000+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO
Maximum Memory
192GB
Graphics
Graphics
1x HDMI Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz 1x DisplayPort Supports DP1.4, maximum resolution of 4K 60Hz AMD MULTI-GPU Support
Connector & Ports
HDMI
1x HDMI
Display Port (s)
1x DisplayPort
USB (s)
4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s)
Realtek 8125BG 2.5G LAN
Wireless Communication module
AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3
Supported Storage
2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G
RAID
Supports RAID 0, RAID 1 and RAID 1 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Internal I/O Ports
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports
TPM (Trusted Platform Module )
1x TPM pin header(Support TPM 2.0)
Others
Special Features
4x EZ Debug LED
Warranty Information
Manufacturing Warranty
3 Years
Key Features
Model
B650 GAMING PLUS WIFI
Supported CPU
Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
Supported RAM
4x DDR5 6000+(OC) MHz
Graphics Output
1x HDMI, 1x Display Port
Features
2.5G LAN with Wi-Fi 6E Solution
Part ID: #CAN-01318
Last Updated: 1 month ago
