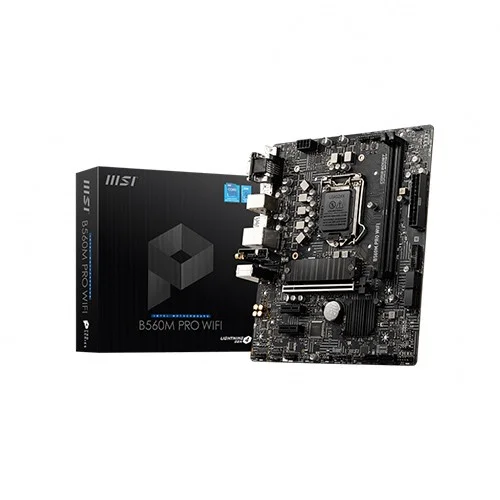

MSI B560M PRO WIFI Motherboard Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold, and Celeron processors for LGA 1200 socket. B560M PRO WIFI Motherboard Supports DDR4 Memory, up to 5200(OC) MHz.Core Boost With premium layout and digital power design to support more cores and supply better performance. B560M PRO WIFI Motherboard DDR4 Boost Advanced technology to deliver pure data signals for the simplest performance and stability. MSI B560M PRO WIFI Motherboard Lightning Fast Experience PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr 2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution Upgraded network solution for professional and multimedia use Specifications: Supported CPU Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold, and Celeron Processors Processor socket LGA 1200 Chipset Intel B560 chipset Memory 2x DDR4 memory slots, support up to 64GB1 Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5200 MHz 1DPC 2R Max speed up to 4700+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) Graphics 1x VGA port, supports a maximum resolution of 2048×1280 @60Hz, 1920×1200 @60Hz12 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz12 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz Slots 1x PCIe x16 slot (From CPU) Support up to PCIe 4.0 for 11th Gen Intel CPU Support up to PCIe 3.0 for 10th Gen Intel CPU 2x PCIe 3.0 x1 slots (From B560 chipset) Supported Storage 6x SATA 6Gb/s ports (From B560 chipset) 1x M.2 slot (Key M)1 Supports up to PCIe 4.0 x4 for 11th Gen Intel® CPU (From CPU) Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel® CPU (From B560 chipset)1 Supports 2242/ 2260/ 2280 storage devices Supports Intel® Smart Response Technology for Intel Core™ processors LAN 1x Realtek 8125B 2.5Gbps LAN controller Audio Realtek ALC897 Codec 7.1-Channel High Definition Audio Internal I/O Ports 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 1x M.2 slot (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x Serial port connector 1x Tuning Controller Connector External I/O Ports VGA Keyboard / Mouse LAN port WiFi / Bluetooth Audio connector HDMI DisplayPort USB 2.0 USB 3.2 Gen 1 5Gbps Type-A WiFi Intel Wi-Fi 6 AX201 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax WiFi 6 pre-certified Supports Bluetooth® 5.1, FIPS, FISMA Form Factor Miro-ATX Form Factor 9.3 in. x 8.0 in. (23.6 cm x 20.2 cm) BIOS 1x 256 Mb flash UEFI AMI BIOS ACPI 6.2, SMBIOS 3.0 Multi-language HDMI 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz Warranty 03 Years  ..
