Product Description

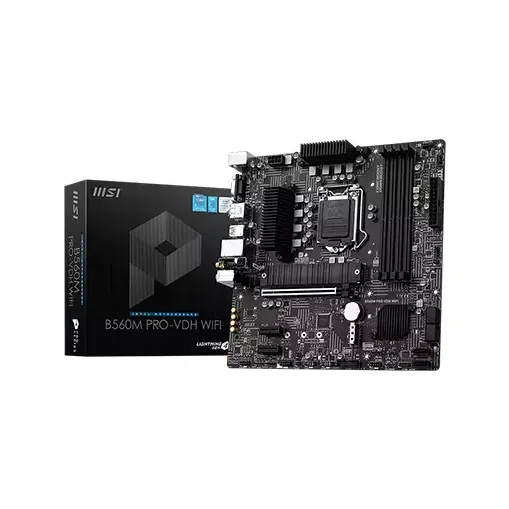

Upgrade Your Gaming Experience with the MSI B560M PRO-VDH WIFI
The MSI B560M PRO-VDH WIFI is the perfect motherboard for gamers and content creators who demand high-performance computing and seamless multitasking. With its robust features and cutting-edge technology, this Micro ATX motherboard is designed to deliver exceptional speed, stability, and efficiency for your next-generation system.
Key Features and BenefitsThe MSI B560M PRO-VDH WIFI boasts the following key features and benefits:
- Support for 10th and 11th Gen Intel Core Processors - Enjoy unparalleled performance and efficiency with the latest Intel processor technology.
- PCIe 4.0 and M.2 Shield Frozr - Experience lightning-fast storage and graphics performance with PCIe 4.0 and M.2 Shield Frozr.
- 2.5G LAN and Wi-Fi Connectivity - Stay connected and productive with advanced networking features.
- 7.1-Channel High Definition Audio - Enjoy immersive audio experiences with Realtek AL897 Codec technology.
- Support for DDR4 Memory up to 5066 MHz - Maximize your system's memory capacity and performance.
The MSI B560M PRO-VDH WIFI features several proprietary technologies that enhance performance and stability:
Core Boost with Premium Layout and Digital Power Design - Deliver more cores and better performance with advanced power management.
Advanced Technology for Pure Data Signals - Ensure the best performance and stability with advanced signal processing.
Part ID: #CAN-01718
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Computer Village
MSI B560M PRO-VDH WIFI Intel 10th and 11th Gen Micro ATX Motherboard
|
In Stock | 13,200 | 5 hours ago | |
|
Sell Tech
MSI B560M PRO-VDH WIFI Intel 10th and 11th Gen Micro ATX Motherboard (Global)
|
Check Stock | Call for Price | 5 hours ago | |
|
Binary Logic
MSI B560M PRO-VDH WIFI Intel 10th and 11th Gen Micro AT...
|
Check Stock | 11,500 | 5 hours ago | |
|
Creatus Computer
MSI B560M PRO-VDH WIFI Intel 10th and 11th Gen Micro ATX Motherboard
|
Check Stock | 13,100 | 5 hours ago | |
|
TechLand BD
MSI B560M PRO-VDH WIFI 10th and 11th Gen Micro ATX Motherboard
|
Check Stock | 13,200 | 5 hours ago | |
|
Binary Logic
MSI Motherboard B560M PRO-VDH WIFI 11th GEN
|
Check Stock | 13,700 | 5 hours ago | |
|
PC House
MSI B560M PRO-VDH WIFI Intel 10th and 11th Gen Micro ATX Motherboard
|
Check Stock | 17,600 | 4 hours ago |
Historical Pricing Trend
Product Specifications
General Specifications
LAN
Realtek 8125B 2.5Gbps LAN controller
USB
Intel B560 Chipset 2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 2x USB 2.0 Type-A ports on the back panel USB Hubs GL850G 4x USB 2.0 ports are available through the internal USB 2.0 connectors
BIOS
1x 256 Mb flash UEFI AMI BIOS ACPI 6.2, SMBIOS 3.0 Multi-language
HDMI
1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
WiFi
Intel Wi-Fi 6 AX201 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax WiFi 6 pre-certified Supports Bluetooth® 5.1, FIPS, FISMA
Audio
Realtek AL897 Codec 7.1-Channel High Definition Audio
Slots
PCIe x16 slot (From CPU) PCI_E1 (From CPU) Support up to PCIe 4.0 for 11th Gen Intel CPU Support up to PCIe 3.0 for 10th Gen Intel CPU 2x PCIe 3.0 x1 slots (From B560 chipset)
Memory
4x DDR4 memory slots, support up to 128GB1 Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5066 MHz 1DPC 2R Max speed up to 4600+ MHz 2DPC 1R Max speed up to 4266+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
Chipset
Intel B560 chipset
Graphics
x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports the maximum resolutions of 2048x1536 @50Hz, 2048x1280 @60Hz and 1920x1200 @60Hz
Warranty
03 Years
Form Factor
Miro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Supported CPU
Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold, and Celeron Processors Processor socket LGA 1200
Supported Storage
6x SATA 6Gb/s ports (From B560 chipset) 2x M.2 slot (Key M) M2_1 slot Supports up to PCIe 4.0 x4 for 11th Gen Intel® CPU (From CPU) Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel® CPU (From B560 chipset)1 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot2 (from B560 chipset) Supports up to PCIe 3.0 x4 Supports 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready Supports Intel Smart Response Technology for Intel Core processors
External I/O Ports
eyboard / Mouse VGA DisplayPort USB 3.2 Gen 2 10Gbps Type-A LAN port WiFi / Bluetooth Audio connector USB 2.0 HDMI USB 3.2 Gen 1 5Gbps Type-A
Internal I/O Ports
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB Gen 1 ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x Serial port connector 1x Tuning Controller Connector
