Status
In Stock
7 listings tracked
Lowest Deal
13,900
Best Deal
Price Range
13,900 to 14,950
Save 8%
Product Description

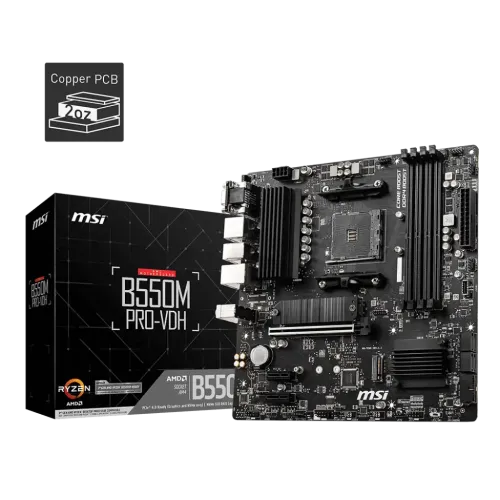

MSI B550M Pro-VDH AMD AM4 DDR4 Micro-ATX Motherboard
Unleash Your PC's Potential
Designed for gamers, professionals, and DIY enthusiasts, the MSI B550M Pro-VDH AMD AM4 DDR4 Micro-ATX Motherboard offers a powerful and adaptable solution for building a high-performance PC. With its advanced features and compatibility with the latest AMD Ryzen processors, this motherboard is perfect for those seeking to maximize their system's potential.
Key Features and Benefits
- Supports AMD Ryzen 5000 & 3000 Series desktop processors and AMD Ryzen 4000 G-Series desktop processors
- Dual-channel DDR4 memory with a maximum capacity of 128GB for superior performance and multitasking
- Multiple display options with HDMI, VGA, and DisplayPort outputs for smooth connection to several monitors
- Two M.2 slots for fast SSDs and support for PCI-Express Gen 4, 3, and 2 for latest graphics cards and storage devices
- Comprehensive connectivity with USB 3.2 Gen 1, USB 2.0, and Gigabit LAN ports
Advanced Technologies and Features
The MSI B550M Pro-VDH AM4 Motherboard features a range of advanced technologies and features, including:
- PCI-E 4.0/ 3.0 x16 slot for latest graphics cards
- Support for non-ECC UDIMM and ECC UDIMM memory
- Realtek ALC892 Codec 7.1-Channel High Definition Audio for immersive audio experiences
- Multiple fan connectors for optimal system cooling and temperature control
Part ID: #CAN-01000
Last Updated: 5 hours ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
TechLand BD
MSi B550M PRO-VDH AM4 AMD B550 DDR4 M-ATX Motherboard
|
In Stock | 13,700 | 4 hours ago | |
|
Star Tech
MSI B550M Pro-VDH AMD AM4 DDR4 Micro-ATX Motherboard
|
In Stock | 14,200 | 4 hours ago | |
|
Sell Tech
MSI B550M Pro-VDH AMD AM4 DDR4 Micro-ATX Motherboard
|
In Stock | 14,200 | 3 hours ago | |
|
Ultra Technology
MSI B550M Pro-VDH AMD AM4 DDR4 Micro-ATX Motherboard
|
In Stock | 14,200 | 3 hours ago | |
|
Skyland BD
MSI B550M Pro-VDH AMD AM4 DDR4 Micro-ATX Motherboard
|
In Stock | 14,500 | 3 hours ago | |
|
Nexus Computer
MSI B550M Pro-VDH AMD AM4 DDR4 M-ATX Motherboard
|
In Stock | 14,950 | 3 hours ago | |
|
PCB Store
MSI B550M Pro-VDH AMD AM4 DDR4 Micro-ATX Motherboard
|
Check Stock | 14,500 | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors
Chipset
AMD B550
Form Factor
Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Expansion Slots
PCI
1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 2x PCIe 3.0 x1 slots
M.2 Socket
2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices
Memory
Type
Dual-channel memory architecture
Slots
4x DDR4 memory slots
Supported Memory
Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHZ 1DPC 2R max speed 3733 MHZ 2DPC 1R max speed 3866 MHZ 2DPC 2R max speed 3466 MHZ Supports non-ECC UDIMM memory Supports ECC UDIMM memory Supports un-buffered memory
Maximum Memory
128GB
Graphics
Graphics
1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
Max Shared Memory
16GB
Connector & Ports
HDMI
1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
Display Port (s)
1x DisplayPort supports a maximum resolution of 4096x2160 @60Hz
USB (s)
AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
LAN Port (s)
1x Realtek 8111HN Gigabit LAN controller
Supported Storage
AMD B550 Chipset 4x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices
Audio
Realtek ALC892 Codec 7.1-Channel High Definition Audio
Internal I/O Ports
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 3x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1x Clear CMOS jumper
TPM (Trusted Platform Module )
1 x TPM module connector
Warranty Information
Manufacturing Warranty
03 Years Warranty
Key Features
Model
B550M Pro-VDH
Part ID: #CAN-01000
Last Updated: 5 hours ago
