Product Description

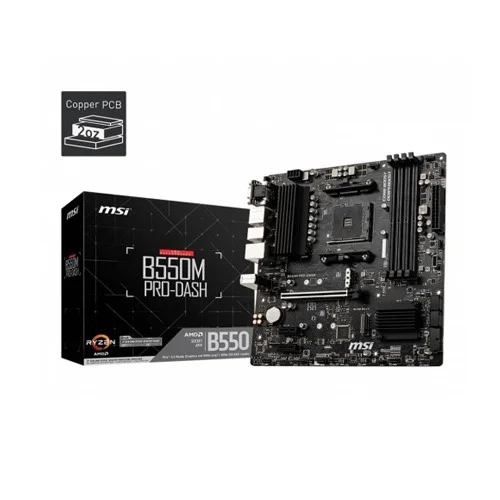

Upgrade Your Build with the MSI B550M PRO-DASH
The MSI B550M PRO-DASH is specifically designed for home users, business solutions, and content creators seeking top-tier performance at an affordable price. This powerful motherboard is engineered to meet the demands of modern-day productivity, delivering outstanding value, durability, and features that cater to every need.
Key Features and Benefits- Supports AMD Ryzen 5000, 4000G, and 3000 series CPUs for optimal speed and responsiveness
- Dual M.2 slots with PCIe 4.0 and SATA support for faster boot times and improved application load speeds
- 4x SATA 6Gb/s ports and 128GB DDR4 RAM support in dual channel mode for stable storage and multitasking
- Flexible graphics connectivity with VGA, HDMI 2.1, and DisplayPort outputs supporting up to 4K resolution
- Multiple USB 3.2 Gen 1 and USB 2.0 ports for hassle-free peripheral connectivity
The MSI B550M PRO-DASH boasts a range of advanced technologies and features, including:
Realtek 7.1-Channel High Definition Audio for immersive sound and smooth networking, courtesy of the onboard 1Gbps LAN port. The motherboard also features multiple fan headers, providing efficient fan control options for optimal thermal management.
TPM Support and Enhanced Security with a dedicated TPM header, ensuring secure and efficient builds. Additionally, the motherboard includes RGB headers for customizable lighting and a range of connectivity options, including VGA, HDMI, and DisplayPort outputs.
Part ID: #CAN-02054
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Creatus Computer
MSI B550M PRO-DASH AM4 Micro-ATX Motherboard
|
In Stock | Call for Price | 4 hours ago | |
|
PC House
MSI B550M PRO AM4 Micro-ATX Motherboard
|
Check Stock | Call for Price | 4 hours ago | |
|
PC House
MSI B550M PRO-DASH AM4 Micro-ATX Motherboard
|
Check Stock | Call for Price | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Supports AMD Ryzen 5000 & 3000 Series desktop processors and AMD Ryzen 4000 G-Series desktop processors
Chipset
AMD B550 Chipset
Form Factor
Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Expansion Slots
PCI
1x PCIe 3.0/ 4.0 x16 slot (PCI_E1) 1 2x PCIe 3.0 x1 slots
M.2 Socket
2x M.2 slots (Key M) M2_1 slot (from AMD processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices
Memory
Type
DDR4
Slots
4x DDR4 memory slots
Supported Memory
Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933 MHz by JEDEC Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory Supports un-buffered memory
Maximum Memory
128GB
Graphics
Graphics
1x VGA port, supports resolution of 2048 x 1536 @ 50Hz, 2048 x 1280 @60Hz, 1920x1200 @60Hz 1x DisplayPort, supports a maximum resolution of 4096 x 2160 @60Hz 1x HDMI 2.1 port, supports a maximum resolution of 4096 x 2160 @60Hz Support HDCP 1.4 & 2.3
Connector & Ports
HDMI
1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
Display Port (s)
1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz
USB (s)
AMD A520 Chipset: 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor: 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
LAN Port (s)
1x Realtek RTL8111EPV 1Gbps LAN controller
Supported Storage
AMD B550 Chipset 4x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices
TPM (Trusted Platform Module )
1 x TPM module connector
Audio
Realtek ALC892/ ALC897 Codec 7.1-Channel High Definition Audio
Internal I/O Ports
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 3x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1x Clear CMOS jumper
Connectivity
VGA
1x VGA port, supports resolution of 2048x1536 @50Hz, 2048 x 1280 @60Hz, 1920 x 1200 @60Hz
Warranty Information
Warranty
03 Years Warranty
Part ID: #CAN-02054
Last Updated: 1 month ago
