Status
In Stock
4 stores
Lowest Deal
10,800 BDT
Best Deal
Price Range
Single price listing
Product Description

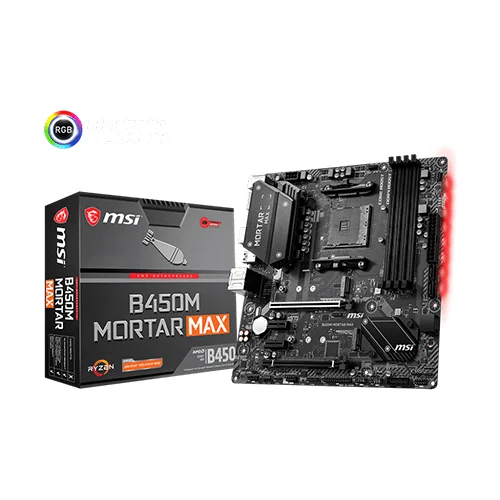

Unleash Your Gaming Potential with the MSI B450M MORTAR MAX
Designed for gamers and enthusiasts, the MSI B450M MORTAR MAX motherboard is built to deliver exceptional performance and reliability. With its robust military-style design and cutting-edge features, this motherboard is the perfect choice for those seeking to upgrade their gaming experience.
Key Features and Benefits
- Supports 1st, 2nd, and 3rd Gen AMD Ryzen processors for exceptional performance and power efficiency
- DDR4 memory support with speeds up to 4133(OC) MHz for seamless multitasking and gaming
- PCIe 3.0 x16 slot for high-speed graphics and storage
- Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices and RAID 0 and RAID 1 for M.2 NVMe RAID
- Realtek ALC892 7.1-Channel High Definition Audio for immersive audio experiences
Proprietary Technologies and Enhancements
The MSI B450M MORTAR MAX motherboard features several proprietary technologies that enhance its performance and reliability. These include:
Core Boost
Core Boost technology uses a premium layout and fully digital power design to support more cores and provide better performance. This results in improved system stability and reduced power consumption.
StoreMI
StoreMI is a storage acceleration technology that combines the benefits of a hard drive and an SSD into a single drive. This results in faster loading times, improved system responsiveness, and increased storage capacity.
MSI Extended Heatsink Design
The MSI Extended Heatsink Design provides improved cooling for high-end processors, ensuring that your system runs smoothly and efficiently even under heavy loads.
Part ID: #CAN-02052
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Computer Village
MSI B450M MORTAR MAX Military Style AMD M-ATX Gaming Motherboard
|
In Stock | 10,800 | 4 hours ago | |
|
Creatus Computer
MSI B450M MORTAR MAX MILITARY STYLE AMD GAMING MOTHERBOARD
|
Check Stock | Call for Price | 5 hours ago | |
|
Sell Tech
MSI B450M MORTAR MAX Military Style AMD M-ATX Gaming Motherboard
|
Check Stock | Call for Price | 5 hours ago | |
|
PC House
MSI B450M MORTAR MAX Military Style AMD M-ATX Gaming Motherboard
|
Check Stock | 10,900 | 4 hours ago |
Historical Pricing Trend
Product Specifications
Key Features
Form Factor
mATX
Basic Information
Chipset
AMD B450 Chipset
Supported CPU
Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4
BIOS
Flash BIOS Button
Form Factor
M-ATX Form Factor
Audio
Realtek ALC892 Code: - 7.1-Channel High Definition Audio - Supports S/PDIF output
Memory
Ram Type
DDR4
Type
DDR4
Slots
- 1 x PCIe 3.0 x16 slot (PCI_E1) - Supports x16 speed with 1st, 2nd and 3rd Gen AMD Ryzen processors - Supports x8 speed with Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics processors - Supports x4 speed with AMD Athlon with Radeon Vega Graphics Processors - 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode) - 2 x PCIe 2.0 x1 slots
Supported Memory
- Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) - Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) - Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE) - Supports non-ECC UDIMM memory - Supports ECC UDIMM memory (non-ECC mode)
Maximum Mamory
- support up to 64GB
Expansion Slots
PCI
- 1 x PCIe 3.0 x16 slot (PCI_E1) - Supports x16 speed with 1st, 2nd and 3rd Gen AMD Ryzen processors - Supports x8 speed with Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics processors - Supports x4 speed with AMD Athlon with Radeon Vega Graphics Processors - 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)1 - 2 x PCIe 2.0 x1 slots2
M.2 Socket
AMD B450 Chipset: - 1 x M.2 slots (M2_2, Key M)1 - Supports PCIe 2.0 x4 2242/ 2260 /2280 storage devicesAMD CPU: - 1x M.2 slot (M2_1, Key M)1 - Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen (AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (AMD Athlon with Radeon Vega Graphics)and SATA 6Gb/s 2242/ 2260 /2280 storage devices
Graphics
Graphics
Only support when using AMD Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Processors
Max Shared Memory
Maximum shared memory of 2048 MB
Connector & Ports
HDMI
1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz
Display Port (s)
1 x DisplayPort, support a maximum resolution of 4096x2304 @60Hz, 2560x1600 @60Hz, 3840x2160 @60Hz, 1920x1200 @60Hz
USB (s)
AMD B450 Chipset: - 1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel - 1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel - 2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector - 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD CPU AMD Processor: - 4 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
LAN Port (s)
1 x Realtek RTL8111H-CG Gigabit LAN controller
Supported Storage
AMD B450 Chipset: - 4 x SATA 6Gb/s ports1 - 1 x M.2 slots (M2_2, Key M)1 - Supports PCIe 2.0 x4 2242/ 2260 /2280 storage devices AMD CPU: - 1x M.2 slot (M2_1, Key M)1 - Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (AMD Athlon with Radeon Vega Graphics)and SATA 6Gb/s 2242/ 2260 /2280 storage devices
Audio
- 7.1-Channel High Definition Audio - Supports S/PDIF output
Internal I/O Ports
1 x 24-pin ATX 12V power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1 x USB 3.2 Gen1 connector (support additional 2 USB 3.2 Gen1 ports) 1 x 4-pin CPU fan connector 3 x 4-pin system fan connectors 2 x 5050 RGB LED strip 12V connectors 1 x TPM module connector 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x Serial Port connector 1 x Parallel Port connector
DVI-D (s)
Yes
Warranty Information
Manufacturing Warranty
03 Years Warranty
Others
Special Features
RAID: AMD B450 Chipset - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0 and RAID 1 for M.2 NVMe RAID
Bundled Software
- Support for Windows 10 64-bit - Support for Windows 7 64-bit (To support Windows 7 64-bit, must install an AMD Pinnacle Ridge & Summit Ridge CPU)
Part ID: #CAN-02052
Last Updated: 1 month ago
