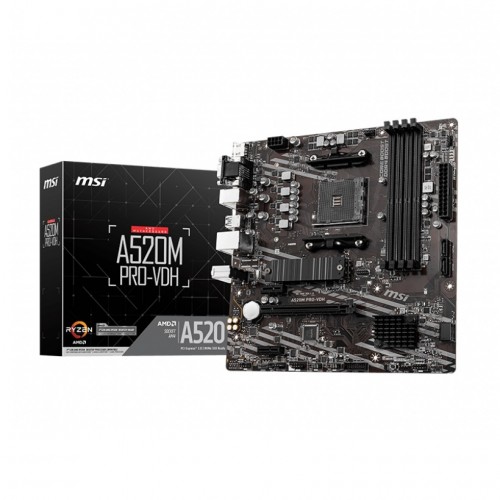

MSI A520M PRO-VDH AMD AM4 Micro-ATX Motherboard

Status
In Stock
2 stores
Lowest Out of Stock
Price Range Single price listing
MSI A520M PRO-VDH AMD AM4 Micro-ATX Motherboard

Product Description

Unlock Unmatched Performance with MSI A520M PRO-VDH

Whether you're a content creator, gamer, or enthusiast, the MSI A520M PRO-VDH motherboard is designed to deliver exceptional performance and reliability for your AMD Ryzen-powered system. With its robust feature set and premium design, this micro-ATX motherboard is the perfect choice for those seeking a high-quality build.

Key Features and Performance Highlights

  • Supports AMD Ryzen 5000 & 3000 Series desktop processors and AMD Ryzen 4000 G-Series desktop processors
  • Supports DDR4 Memory, up to 4400(OC) MHz, and dual-channel memory architecture
  • 2x PCIe 3.0 x16 slots and 1x PCIe 3.0 x1 slot for expanded graphics and peripheral options
  • 1x M.2 slot (Key M) supporting PCIe 3.0 and SATA 6Gb/s for fast storage upgrades
  • Realtek ALC897 Codec 7.1-Channel High Definition Audio for immersive audio experiences
  • 1x Realtek RTL8111H 1Gbps LAN controller for reliable networking

MSI's Proprietary Technologies for Enhanced Performance

The MSI A520M PRO-VDH motherboard features a range of innovative technologies designed to deliver exceptional performance and reliability. The M.2 Shield Frozr, for instance, provides a strengthened built-in M.2 thermal solution that keeps M.2 SSDs safe while preventing throttling, making them run faster. Additionally, the motherboard boasts a premium layout and digital power design to support more cores and provide better performance. The 2oz Thickened Copper PCB also enhances heat dissipation and performance reliability.

Part ID: #CAN-01185 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Star Tech MSI A520M PRO-VDH AMD AM4 Micro-ATX Motherboard
In Stock Call for Price 1 week ago
Buy Now
Creatus Computer MSI A520M PRO-VDH AMD AM4 Micro-ATX Motherboard
In Stock Call for Price 4 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU Supports AMD Ryzen 5000 & 3000 Series desktop processors and AMD Ryzen 4000 G-Series desktop processors
Chipset AMD A520 Chipset
Form Factor mATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Audio Realtek ALC897 Codec 7.1-Channel High Definition Audio

Expansion Slots

PCI 2x PCIe 3.0 x16 slots 1x PCIe 3.0 x1 slot
M.2 Socket 1x M.2 slot (Key M) (from AMD Processor)

Memory

Type Dual-channel memory architecture
Slots 4x DDR4 memory slots
Supported Memory Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHz 1DPC 2R max speed 3866 MHz Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory
Maximum Memory 128GB

Graphics

Graphics 1x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 @60Hz Support for HDMI 1.4 version, HDCP 1.4 & 2.3 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1 x VGA port, supporting a maximum resolution of 2048x1280 @60Hz
Max Shared Memory 16GB

Connector & Ports

HDMI 1x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 @60Hz
Display Port (s) 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz
VGA (s) 1 x VGA port, supporting a maximum resolution of 2048x1280 @60Hz
USB (s) AMD A520 Chipset: 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors AMD Processor: 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
LAN Port (s) 1x Realtek RTL8111H 1Gbps LAN controller
Supported Storage AMD A520 Chipset: 4x SATA 6Gb/s ports 1x M.2 slot (Key M) (from AMD Processor) Supports PCIe 3.01 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices
Audio 1x Front panel audio connector
Internal I/O Ports 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x Serial port connector 1x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 2x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector 1x Clear CMOS jumper 1x Flash BIOS button
TPM (Trusted Platform Module ) 1x TPM module connector

Warranty Information

Manufacturing Warranty 03 Years Warranty

Key Features

Model A520M PRO-VDH
Part ID: #CAN-01185 Last Updated: 1 month ago
