Product Description

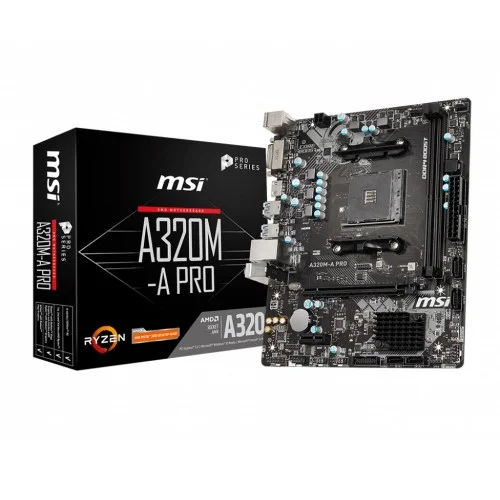

Engineered by MSI, this motherboard is designed for **AM4** socket processors and featuring a **Micro-ATX** form factor, providing a reliable foundation for custom desktop systems. You can buy this component starting from **6,000 ৳**, compared dynamically across 2 major computer shops.
Part ID: #CAN-02137
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
Motherboard Basic Info
PCI
1 x PCIe 3.0 x16 slot Supports x16 speed with 1st, 2nd, and 3rd Gen AMD Ryzen processors Supports x8 speed with Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics processors Supports x4 speed with AMD Athlon with Radeon Vega Graphics Processors 1 x PCIe 2.0 x1 slots
Form Factor
8.9 in. x 7.4 in. (22.6 cm x 18.7 cm) m-ATX Form Factor
Motherboard Basic Information
Supported CPU
Supports 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4
Chipset
AMD A320 Chipset
Memory Specifications
Type
Dual channel memory architecture
Graphics Specifications
Max Shared Memory
GraphicssMaximum shared memory of 2048 MB
Motherboard Memory Info
Slots
2 x DDR4 memory slots
Supported Memory
upport 1866/ 2133/ 2400/ 2667(OC)/ 2933(OC)/ 3200(OC)+ MHz
Maximum Memory
64GB
Motherboard Graphics Info
Graphics
1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz 1 x HDMI port 1.4, supports a maximum resolution of 4096x2160@30Hz
Connector & Ports (MB)
HDMI
1 x HDMI port 1.4, supports a maximum resolution of 4096x2160@30Hz
LAN Port (s)
1 x Realtek 8111H Gigabit LAN controller
Audio
Realtek ALC892 Codec 7.1-Channel High Definition Audio
Internal I/O Ports
1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1 x 4-pin CPU fan connector 1 x 4-pin system fan connector 1 x Front panel audio connector 1 x Serial port connector 2 x Front panel connectors 1 x Chassis Intrusion connector 1 x Clear CMOS jumper
DVI-D (s)
1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
Supported Storage
AMD A320 Chipset 4 x SATA 6Gb/s ports Supports RAID 0, RAID 1 and RAID 10
Warranty Information
Manufacturing Warranty
03 Years Warranty
