Product Description
Engineered by Maxsun, this motherboard is designed for **LGA1700** socket processors, built on the **Z790** chipset, featuring a **ATX** form factor, and supporting high-speed **DDR5** memory, providing a reliable foundation for custom desktop systems. PCPartsBD lists the best deal for this item at **29,700 ৳** after tracking live prices across leading BD tech merchants.
Part ID: #CAN-01610
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
General Specifications
LAN
Chipset Realtek RTL8125B Second LAN Chipset - Realtek RTL8125B Max LAN Speed - 2 x 2.5Gbps Wireless LAN Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band
Pin
24 Pin
USB
USB 3.0 4 x USB 3.2 Gen1 Type-A USB 1.1/2.0 4 x USB 2.0 Type-A USB Type-C USB 3.2 Gen2x2 Type-C
HDMI
1 x HDMI
Port
RJ45 - 2 x RJ45 DisplayPort - 1 x DisplayPort S/PDIF Out - 1 x Optical Audio Ports - 5 Ports
Model
Z790
Slots
Number of Memory Slots - 4x288pin (DDR5)
Memory
128GB
Series
iCraft
Channel
Quad Channel
Chipset
Intel Z790
I/O Port
Back - 1 x DisplayPort / 1 x HDMI
Lighting
LED - RGB
Warranty
3 years Replacement Warranty
Bluetooth
5.2
Dimension
14.25" x 12.44"
Standards
Memory - DDR5 4800
CPU Socket
LGA 1700
Form Factor
ATX
Storage Type
SATA 6Gb/s - 4 x SATA 6Gb/s M.2 4 x M.2 SATA RAID - 0/1/5/10
Supported CPU
Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700)
Expansion Slots
PCI Express 5.0 x16 - 1 x PCI Express 5.0 x16 PCI Express x4 - 2 x PCI Express x4 PCI Express x1 - 1 x PCI Express x1
Internal I/O Ports
Onboard USB - 1 x USB 3.2 Gen 2x2 Type-C + 1 x USB 3.2 Gen1
Audio/Video Features
Audio Chipset - Realtek ALC1220 Audio Channels - 7.1 Channels
Part ID: #CAN-01610
Last Updated: 2 days ago

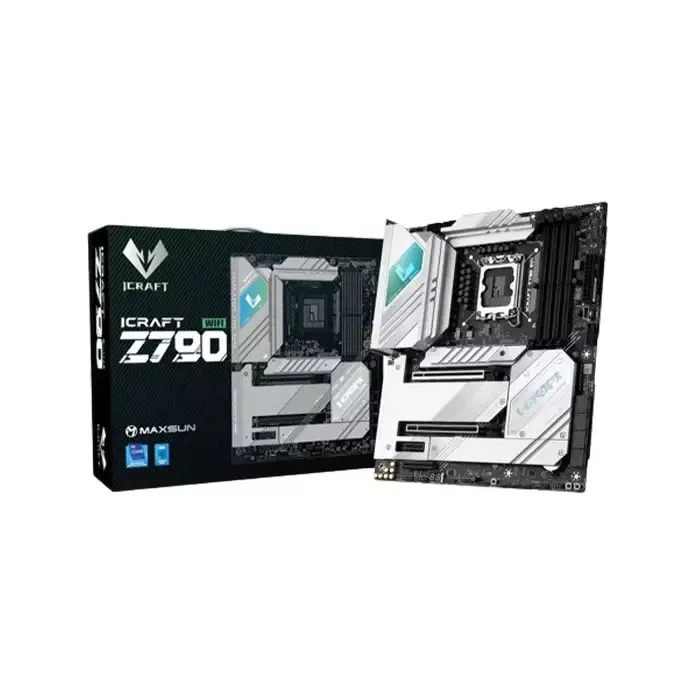

Maxsun iCraft Z790 WiFi Micro ATX Gaming Motherboard is a robust platform designed to support both Intel Core 12th and 13th Gen processors using the LGA 1700 socket. Featuring the Intel Z790 chipset, this motherboard is optimized for gaming and high-performance computing. This motherboard supports up to 128GB of DDR5 memory, operating at 4800 MHz, across four 288-pin slots, enabling superior multitasking and gaming performance. For storage, it offers a versatile array of options, including four SATA 6Gb/s ports and four M.2 slots, supporting SATA RAID configurations 0, 1, 5, and 10, ensuring fast and reliable data access. The Maxsun iCraft Z790 boasts impressive networking capabilities with dual Realtek RTL8125B LAN chipsets, each capable of delivering 2.5Gbps speeds. Additionally, it supports 2x2 Wi-Fi 6E, providing cutting-edge wireless connectivity across the 2.4GHz, 5GHz, and 6GHz frequency bands. Bluetooth 5.2 is also integrated, ensuring seamless connectivity with various devices. The motherboard features a Realtek ALC1220 audio chipset, supporting 7.1 channels for immersive sound. Video outputs include one DisplayPort and one HDMI port, offering flexibility for multiple display setups. The onboard RGB LED lighting adds a customizable aesthetic touch, enhancing the visual appeal of your gaming setup. For expansion, the Maxsun iCraft Z790 includes one PCI Express 5.0 x16 slot, two PCI Express x4 slots, and one PCI Express x1 slot, allowing for various configurations of GPUs and other peripherals. The rear I/O includes numerous connectivity options, such as 4 USB 3.2 Gen1 Type-A ports, 4 USB 2.0 Type-A ports, a USB 3.2 Gen2x2 Type-C port, and an S/PDIF out for optical audio. Built in an ATX form factor, the motherboard measures 14.25" x 12.44", making it suitable for standard ATX cases. It also features advanced onboard USB options, including a USB 3.2 Gen2x2 Type-C port for fast data transfer. Overall, the Maxsun iCraft Z790 WiFi Micro ATX Gaming Motherboard offers a well-rounded set of features suitable for gamers and power users seeking a reliable and high-performance foundation for their PC builds..
