Status
In Stock
2 listings tracked
Lowest Deal
9,900
Best Deal
Price Range
9,900 to 10,200
Save 3%
Product Description

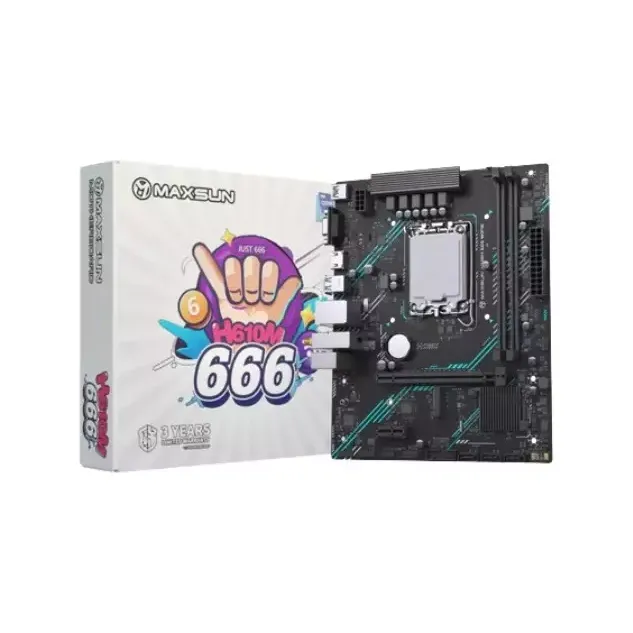

Engineered by Maxsun, this motherboard is designed for **LGA1700** socket processors and supporting high-speed **DDR4** memory, providing a reliable foundation for custom desktop systems. PCPartsBD lists the best deal for this item at **9,900 ৳** after tracking live prices across leading BD tech merchants.
Part ID: #CAN-01520
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
General Specifications
CPU
Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700
LAN
Realtek® RTL8111H 1G LAN
USB
Front USB (Total 4 ports) 2x USB 3.2 Gen1 Type A 2x USB 2.0 Rear USB (Total 6 ports) 2x USB 3.2 Gen1 Type A 4x USB 2.0
Audio
Realtek® ALC897 Codec 5.1-Channel High Definition Audio
Memory
2x DDR4, Maximum Memory Capacity 64GB Memory Support DDR4 3200(OC)/ 2933(OC)/ 2666(OC)/ 2400(OC) MHz Supports Intel® XMP 2.0 OC Supports Dual-Controller Dual-Channel mode
Chipset
INTEL H610
Storage
M.2 slot (Key M), type 2242/2280 (supports PCIe 3.0 x4 mode) 4x SATA 6Gb/s ports
Graphics
1x DisplayPort 1.2 1x HDMI™port *HDMI™ port supports up to 4K@30Hz *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
LED Type
4x Distributed Debug LED
Warranty
3 Years Replacement Warranty
Form Factor
M-ATX 220mm x 185mm
Expansion Slots
1x PCIe 4.0 x16 slot 1x PCIe 3.0 x1 slot
Operating System
Support for Windows® 11 64-bit, Windows® 10 64-bit
Internal I/O Ports
1x 24-pin Power Connector (ATX_PWR) 1x 8-pin Power Connector (CPU_PWR) 1x CPU Fan 3x System Fan 1x M.2 slots (Key-M) 4x SATA 6Gb/s ports 1x 2-Pin CLR_CMOS 1x 4-Pin BUZZER 1x Front Audio 1x COM_A Port 1x 9-Pin DEBUG_CON 1x TPM pin header (Support TPM 2.0)
Part ID: #CAN-01520
Last Updated: 2 days ago
The Maxsun H610M 666 WiFi 6 DDR4 Motherboard, available at SkyLandBD, is a standard motherboard that features an Intel H610 chipset and supports 12th/13th Gen Intel Core Processors, Pentium Gold, and Celeron Processors with an LGA 1700 socket. The motherboard supports DDR4 memory with a maximum capacity of 64GB and bus speeds from 2400 MHz to 3200 MHz (OC). It also supports dual-controller dual-channel mode. For audio, it features a Realtek ALC897 Codec for 5.1-Channel High Definition Audio. The motherboard includes a Realtek RTL8111H 1G LAN for networking. For graphics, it offers 1x DisplayPort 1.4 and 1x HDMI port. The motherboard also includes 1x PCIe 5.0 x16 slot and 1x PCIe 3.0 x4 slot for expansion. For storage, it supports M.2 SSDs (2242/2280/22110) with PCIe 4.0 x4 mode and has 4x SATA 6Gb/s ports. The motherboard features a total of 13 USB ports. It also includes Intel Wi-Fi 6E AX211 for wireless connectivity and supports Bluetooth V5.3. The motherboard also includes a variety of internal I/O ports and features 4x distributed debug LED. It supports Windows 11 64-bit and Windows 10 64-bit operating systems. The Maxsun H610M 666 WiFi 6 DDR4 Motherboard comes in an M-ATX form factor with dimensions of 245mm x 245mm. This high-performance motherboard is available at SkyLandBD.
