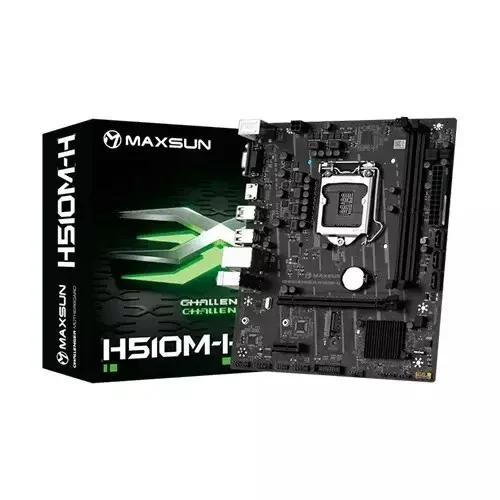

Maxsun Challenger H510M-H V3 DDR4 H470 LGA1200 Motherboard

Status
In Stock
4 stores
Lowest 8,500 BDT
Price Range Single price listing
Maxsun Challenger H510M-H V3 DDR4 H470 LGA1200 Motherboard

Product Description

Upgrade Your Desktop with the Maxsun Challenger H510M-H V3 Motherboard

The Maxsun Challenger H510M-H V3 Motherboard is the perfect choice for users seeking a reliable, affordable, and future-ready Intel desktop PC. Designed for everyday computing needs, this motherboard delivers stable performance for office work, home computing, educational activities, business applications, and entry-level gaming.

Main Features and Benefits

The Maxsun Challenger H510M-H V3 Motherboard offers the following key features and benefits:

  • Support for 10th and 11th Generation Intel Core processors, Pentium Gold and Celeron Processors LGA 1200
  • DDR4 memory support with up to 64GB capacity and frequencies up to 3200MHz through overclocking
  • Compact Micro-ATX design measuring 225mm x 180mm for flexible builds
  • Advanced graphics connectivity with VGA and HDMI outputs, supporting resolutions up to 4K at 30Hz
  • Reliable storage and expansion options, including one M.2 slot supporting PCIe 3.0 x4 SSDs and three SATA 6Gb/s ports
  • Stable networking with Realtek RTL8111H Gigabit LAN controller and 5.1-channel high-definition audio with Realtek ALC897 codec
Proprietary Technologies and Performance Highlights

The Maxsun Challenger H510M-H V3 Motherboard incorporates the following proprietary technologies and performance highlights:

Intel H470 Chipset: This chipset provides a robust foundation for the motherboard, supporting the latest Intel processors and delivering stable performance for everyday computing needs.

DDR4 Memory Support: The motherboard supports up to 64GB of DDR4 memory, enabling users to handle multitasking efficiently and enjoy smooth system performance.

Intel XMP 2.0 Support: The Maxsun Challenger H510M-H V3 Motherboard supports Intel XMP 2.0, allowing users to optimize memory configurations for better efficiency and performance.

Part ID: #CAN-01872 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Creatus Computer Maxsun Challenger H510M-H V3 DDR4 H470 LGA1200 Motherboard
In Stock 8,499 5 hours ago
TechLand BD Maxsun Challenger H510M-H V3 DDR4 H470 Chipset LGA1200 Socket Motherboard
In Stock 8,500 5 hours ago
Ultra Technology Maxsun Challenger H510M-H V3 DDR4 H470 LGA1200 Motherboard
In Stock 8,500 4 hours ago
Sell Tech Maxsun Challenger H510M-H V3 DDR4 H470 Chipset 10th/11th Gen Intel LGA1200 Socket Motherboard
Check Stock Call for Price 5 hours ago

Historical Pricing Trend

Product Specifications

Key Features

Form Factor M-ATX 225mm x 180mm

Basic Information

Operating System Support for Windows 11 64-bit, Windows 10 64-bit
Supported CPU Supports 10th/11th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1200
Chipset INTEL H470

General Information

Graphics 1x VGA *Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz 1x HDMI port *HDMI port supports up to 4K@30Hz *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
Supported Storage M.2 slot (Key M), type 2242/2280 (supports PCIe 3.0 x4 mode) 3x SATA 6Gb/s ports

Memory

Slots EXPANSION SLOT 1x PCIe 3.0 x16 slot 1x PCIe 3.0 x1 slot
Supported Memory 2x DDR4, Memory Support DDR4 3200(OC)/ 2933(OC)/ 2666(OC)/ 2400(OC) MHz Supports Intel XMP 2.0 OC Supports Dual-Controller Dual-Channel mode
Maximum Memory 64GB

Connector & Ports

LAN Port (s) Realtek RTL8111H 1G LAN
RAID Supports RAID 0, RAID 1,RAID 5 and RAID 10 for SATA storage devices
Audio Realtek ALC897 Codec 5.1-Channel High Definition Audio

External Features

I/O Port 1x 24-pin Power Connector(ATX_PWR) 1x 4-pin Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 1x PS/2 interface 1x M.2 slots (Key-M) 3x SATA 6Gb/s ports 1x CLR_CMOS 1x 4-Pin SPEAKER 1x Front Audio 1x COM_A Port 1x 9-Pin DEBUG_CON 1x 2-Pin ME_PROTECT

Hardware Features

LED 4x Side-by-Side Debug LED

Physical Specification

USB *Front USB (Total 4 ports) 2x USB 3.2 Gen1 Type A 2x USB 2.0 *Rear USB (Total 6 ports) 2x USB 3.2 Gen1 Type A 4x USB 2.0

Warranty Information

Warranty 3 Years
