Product Description
Engineered by Gigabyte, this motherboard is featuring a **Micro-ATX** form factor, providing a reliable foundation for custom desktop systems. PCPartsBD lists the best deal for this item at **32,500 ৳** after tracking live prices across leading BD tech merchants.
Part ID: #CAN-10097
Last Updated: 6 days ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
General Information
Audio
Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings
CPU
LGA1851 socket: Support for Intel® Core™ Ultra Processors L3 cache varies with CPU * Please refer to "CPU Support List" for more information.
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
I/O Controller
iTE® I/O Controller Chip
Internal I/O Connectors
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Clear CMOS jumper
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Memory
Support for DDR5 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Support CUDIMM memory module (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. - 2 x DisplayPorts, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 2.1 version. (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time
Operating System
Support for Windows 11 64-bit Support for Windows 10 64-bit
Storage Interface
CPU: - 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB
Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports on the back panel Chipset+2 USB 2.0 Hubs: - 4 x USB 2.0/1.1 ports available through the internal USB headers
Main Features
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset
Intel® Z890 Express Chipset
Physical Specification
Expansion Slots
CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Warranty Information
Warrantty
3 years
Part ID: #CAN-10097
Last Updated: 6 days ago

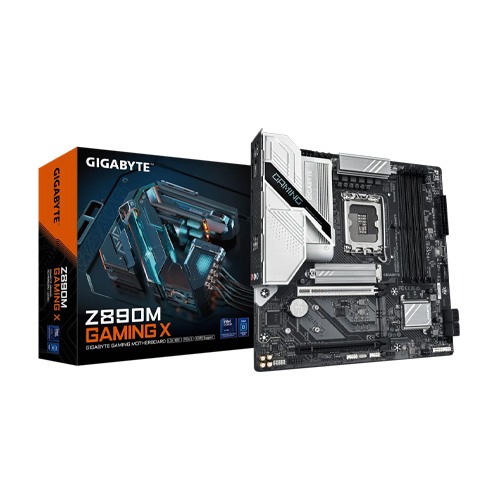

GIGABYTE Z890M GAMING X Intel Motherboard is a high-performance motherboard designed for gaming enthusiasts and professionals seeking top-tier hardware for their builds. Built with the LGA1851 socket, it supports Intel® Core™ Ultra processors, ensuring compatibility with the latest CPU technology. The motherboard is powered by the Intel® Z890 Express Chipset, offering enhanced connectivity and performance With a dual-channel DDR5 memory architecture, the motherboard supports high-speed memory, ranging from 6400 MT/s up to an impressive 9066 MT/s (overclocked). It provides 4 x DDR5 DIMM sockets, allowing for up to 256 GB of system memory, perfect for multitasking, gaming, and content creation. The motherboard also supports ECC Un-buffered DIMM and Extreme Memory Profile (XMP) memory modules for an optimized memory setup. For graphics, the GIGABYTE Z890M GAMING X features integrated Intel® HD Graphics, with HDMI 2.1 and DisplayPort 2.1 options, supporting up to triple-display setups. This makes it an ideal choice for immersive gaming or high-definition media creation. The motherboard also boasts premium Realtek® Audio CODEC, delivering a superior audio experience with support for 7.1-channel sound. In terms of storage, the motherboard offers a range of connectivity options, including PCIe 5.0, PCIe 4.0, and M.2 connectors for high-speed SSDs. Additionally, RAID support for both NVMe and SATA devices allows for fast and reliable storage management With Realtek® 2.5GbE LAN, you can enjoy fast, stable network performance, essential for online gaming and heavy internet usage. The motherboard also comes with extensive USB ports and RGB lighting support, allowing for customization and easy peripheral connection. Built in a Micro ATX form factor, the GIGABYTE Z890M GAMING X delivers robust features and performance in a compact design, making it the perfect choice for gamers and content creators alike...
