Product Description

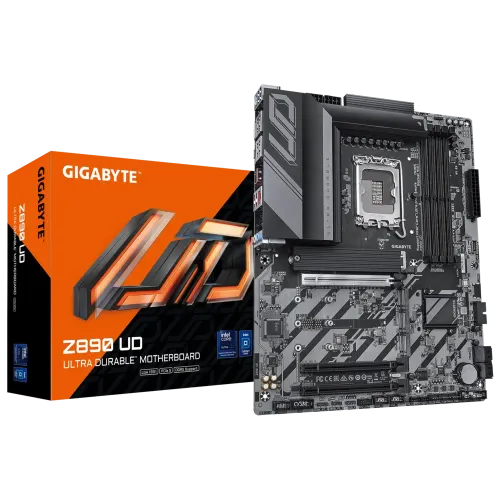

Engineered by Gigabyte, this motherboard is featuring a **ATX** form factor and supporting high-speed **DDR5** memory, providing a reliable foundation for custom desktop systems. PCPartsBD lists the best deal for this item at **30,800 ৳** after tracking live prices across leading BD tech merchants.
Part ID: #CAN-01097
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
Gigabyte Z890 UD LGA 1851 ATX Motherboard
|
In Stock | 29,900 | 3 hours ago | |
|
Sell Tech
Gigabyte Z890 UD LGA 1851 ATX Motherboard
|
In Stock | 30,700 | 3 hours ago | |
|
Netstar
Gigabyte Z890 UD LGA 1851 ATX Motherboard
|
In Stock | 30,800 | 3 hours ago | |
|
Skyland BD
Gigabyte Z890 UD LGA 1851 ATX Motherboard
|
In Stock | 30,800 | 2 hours ago | |
|
PC House
Gigabyte Z890 UD LGA 1851 ATX Motherboard
|
In Stock | 30,990 | 2 hours ago | |
|
Ultra Technology
Gigabyte Z890 UD LGA 1851 ATX Motherboard
|
In Stock | 31,500 | 2 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
LGA1851 socket: Support for Intel Core Ultra Processors L3 cache varies with CPU
Chipset
Intel Z890 Express Chipset
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
Audio
Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Expansion Slots
PCI
CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)
M.2 Socket
CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0x4/x2 SSD support) (M2M_SB)
Memory
Type
DDR5
Slots
4 x DIMM
Supported Memory
Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Support CUDIMM memory module
Maximum Memory
up to 256 GB (64 GB single DIMM capacity) of system memory
Graphics
Graphics
Integrated Graphics Processor-Intel® HD Graphics support: - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version
Connector & Ports
Display Port (s)
1 x DisplayPort
LAN Port (s)
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage
CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0x4/x2 SSD support) (M2M_SB) - 4 x SATA 6Gb/s connectors
RAID
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio
3 x audio jacks
Internal I/O Ports
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 2 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x power button 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x DisplayPort (Note) 4 x USB 3.2 Gen 1 ports 1 x USB4 USB Type-C port (DisplayPort (Note)) 1 x USB 3.2 Gen 2 Type-A port (red) 1 x RJ-45 port 3 x audio jacks
TPM (Trusted Platform Module )
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
Others
Special Features
Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundled Software
Norton Internet Security (OEM version) LAN bandwidth management software
Warranty Information
Manufacturing Warranty
3 Year
Key Features
Model
Z890 UD
Supported CPU
Intel Core Ultra Processors (Series 2), LGA1851 socket
Supported RAM
4x DDR5, Max 256GB, Supports Up to 9200 (O.C)
Graphics Output
1x USB4 USB Type-C, 1x DisplayPort
Features
4x M.2 slots, 2.5GbE LAN, USB4 Type-C with DP-Alt, DisplayPort
Part ID: #CAN-01097
Last Updated: 2 days ago
The Gigabyte Z890 UD LGA 1851 ATX motherboard is optimized for the latest Intel Core Ultra processors. Its sturdy digital dual 12+1+2 phase VRM architecture guarantees steady power delivery for demanding workloads and overclocking. With support for XMP and ECC un-buffered DIMMs, it can hold up to 256 GB of DDR5 memory over four DIMM slots at up to 9200 MT/s. For extremely quick storage configurations, the Gigabyte Z890 UD mobo offers four M.2 slots, one with PCIe 5.0 x4 compatibility, and four SATA 6Gb/s connectors. With PCIe 5.0 and PCIe 4.0 slots made for graphics cards or NVMe SSDs, expansion is easy. The Gigabyte Z890 UD LGA 1851 ATX motherboard offers improved cooling options with VRM Thermal Armor Advanced and M.2 Thermal Guard, and incorporates AI Perfdrive for customized BIOS presets. AIO fan control, Q-Flash Auto Scan for simple updates, and multi-theme customization are all features of the BIOS's user-friendly interface. A 2.5GbE LAN port allows for quick networking, and USB4 Type-C with DisplayPort Alt Mode and USB 3.2 connectors provide longer communication. DisplayPort 2.1 and USB4 integrated graphics support resolutions of up to 3840x2160 @ 144 Hz. The Realtek High Definition Audio on the Gigabyte Z890 UD LGA 1851 ATX motherboard supports up to 7.1-channel configurations and may be adjusted via audio software. Voltage, temperature, and fan speed monitoring are among the onboard diagnostics that guarantee peak performance. Software like Norton Internet Security and LAN bandwidth control tools are pre-installed on this ATX form factor board, which is compatible with Windows 11. With cutting-edge features like RGB lighting management, PCIe EZ-Latch, Thunderbolt add-in card support, and an extensive array of internal ports, the Gigabyte Z890 UD ATX motherboard redefines performance and versatility for both professionals and enthusiasts.Buy Gigabyte Z890 UD LGA 1851 ATX Motherboard from Star TechIn Bangladesh, you can get original Gigabyte Z890 UD LGA 1851 ATX Motherboard From Star Tech. We have a large collection of latest Gigabyte Motherboard to Purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The Gigabyte Z890 UD LGA 1851 ATX Motherboard comes with a 3-year Warranty.
