Status
In Stock
4 stores
Lowest Deal
35,800 BDT
Best Deal
Price Range
Single price listing
Product Description

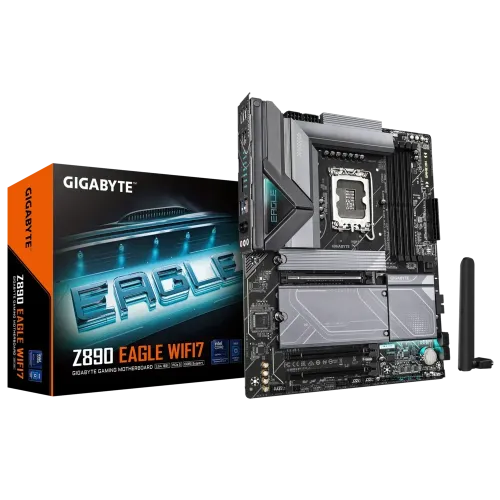

Gigabyte Z890 EAGLE WIFI7 LGA 1851 ATX Motherboard
This motherboard is designed for power users and content creators who demand cutting-edge performance, high-speed connectivity, and advanced features. With its support for Intel Core Ultra Processors (Series 2) and DDR5 RAM, the Gigabyte Z890 EAGLE WIFI7 LGA 1851 ATX Motherboard is the perfect choice for those who need a reliable and high-performance system.
Key Technical Features
- Support for Intel Core Ultra Processors (Series 2) and DDR5 RAM
- Four M.2 slots, including one PCIe 5.0 x4 slot, for ultra-fast storage solutions
- Wi-Fi 7 and 2.5GbE LAN for seamless, high-speed networking
- USB4 Type-C with DP-Alt mode and DisplayPort for versatile connectivity options
- High-resolution audio with integrated ALC1220 and WIMA audiophile-grade capacitors
Proprietary Technologies and Features
The Gigabyte Z890 EAGLE WIFI7 LGA 1851 ATX Motherboard boasts several advanced features, including:
- VRM Thermal Armor and M.2 Thermal Guard for enhanced thermal solutions and improved system cooling
- EZ-Latch Plus and EZ-Latch Click for quick, tool-less installation of PCIe and M.2 slots
- GIGABYTE Control Center (GCC) for easy system monitoring and control
- Q-Flash and Q-Flash Plus for easy BIOS updates and system recovery
Part ID: #CAN-01124
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
Gigabyte Z890 EAGLE WIFI7 LGA 1851 ATX Motherboard
|
In Stock | 35,800 | 1 week ago | |
|
Sell Tech
Gigabyte Z890 EAGLE WIFI7 LGA 1851 ATX Motherboard
|
In Stock | 35,800 | 4 hours ago | |
|
Ultra Technology
Gigabyte Z890 EAGLE WIFI7 LGA 1851 ATX Motherboard
|
In Stock | 36,500 | 4 hours ago | |
|
Skyland BD
Gigabyte Z890 EAGLE WIFI7 LGA 1851 ATX Motherboard
|
In Stock | 36,800 | 3 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Intel Core Ultra Processors(Series 2)
Chipset
Intel Z890 Chipset
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
Audio
Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Expansion Slots
PCI
CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/2)
M.2 Socket
CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
Memory
Type
DDR5
Slots
4 x DIMM
Supported Memory
Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
Maximum Memory
256GB (64 GB single DIMM capacity) of system memory
Graphics
Graphics
Integrated Graphics Processor-Intel® HD Graphics support: - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version (Graphics specifications may vary depending on CPU support.)
Connector & Ports
Display Port (s)
- 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version
LAN Port (s)
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard
Supported Storage
CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) - 4 x SATA 6Gb/s connectors
RAID
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio
1 x front panel audio header 3 x audio jacks
Internal I/O Ports
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x power button 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x USB4® USB Type-C® port (DisplayPort (Note)) 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x DisplayPort (Note) 2 x antenna connectors (2T2R) 1 x RJ-45 port 3 x audio jacks
TPM (Trusted Platform Module )
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Others
Special Features
Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundled Software
Norton® Internet Security (OEM version) LAN bandwidth management software
Warranty Information
Manufacturing Warranty
3 Year Warranty
Key Features
Model
Z890 EAGLE WIFI7
Supported CPU
Intel Core Ultra Processors (Series 2), LGA 1851
Supported RAM
4x DDR5, Max 256GB,Supports Up to 9200(O.C)
Graphics Output
1x DisplayPort, 1 x (USB4 Type-C port Supports DisplayPort),
Features
4x M.2, Intel Wi-Fi 7, Bluetooth 5.4
Part ID: #CAN-01124
Last Updated: 1 month ago
