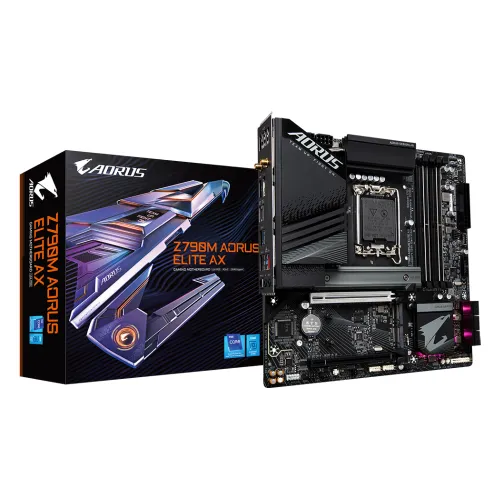

GIGABYTE Z790M AORUS ELITE AX mATX Motherboard

Status
In Stock
4 stores
Lowest 35,200 BDT
Price Range 35,200 to 36,300 BDT Save 3%
GIGABYTE Z790M AORUS ELITE AX mATX Motherboard

Product Description

Unlock Unbridled Performance with the GIGABYTE Z790M AORUS ELITE AX

The GIGABYTE Z790M AORUS ELITE AX is the ultimate motherboard for gamers, content creators, and professionals seeking uncompromising performance, seamless connectivity, and future-ready features. Built on the Intel Z790 chipset, this micro-ATX powerhouse supports 14th, 13th, and 12th Gen Intel Core processors, delivering exceptional speed and efficiency.

Key Features and Benefits
  • DDR5 Memory Support - Up to 7600 MHz (OC) for unparalleled memory bandwidth
  • PCIe 5.0 Readiness - Future-proof your system with the latest PCIe standard
  • Triple PCIe 4.0 M.2 Slots - Equipped with Thermal Guard protection and EZ-Latch Plus for easy installation
  • Wi-Fi 6E and 2.5GbE LAN - Enjoy fast and reliable connectivity for modern devices
  • RGB Fusion Lighting - Elevate your build with customizable RGB effects
Advanced Technologies and Features

The GIGABYTE Z790M AORUS ELITE AX boasts a robust Twin 12+1+1 Hybrid Digital VRM design, 8+4 solid pin power connectors, and a 6-layer 2X copper PCB for reliable power delivery. Additionally, it features EZ-Latch Plus, Ultra Durable Armor on DDR5 slots, and GIGABYTE Control Center software, ensuring a premium user experience.

Part ID: #CAN-01116 Last Updated: 1 week ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Creatus Computer GIGABYTE Z790M AORUS ELITE AX mATX Motherboard
In Stock 36,000 5 hours ago
Buy Now
Skyland BD GIGABYTE Z790M AORUS ELITE AX mATX Motherboard
In Stock 36,100 4 hours ago
Buy Now
Star Tech GIGABYTE Z790M AORUS ELITE AX mATX Motherboard
In Stock 36,300 1 week ago
Buy Now
TechLand BD GIGABYTE Z790M AORUS ELITE AX LGA1700 DDR5 Micro ATX Motherboard
In Stock 36,300 5 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU LGA1700 socket: Support for the 14th Gen, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU
Chipset Intel Z790 Express Chipset
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Audio Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out

Expansion Slots

PCI CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2) Support for AMD CrossFire technology (PCIEX16 and PCIEX4)

Memory

Type DDR5
Slots 4 x DIMM sockets
Supported Memory Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory 128GB (32 GB single DIMM capacity)

Graphics

Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 * Support for DisplayPort 1.2 version and HDCP 2.3

Connector & Ports

HDMI 1 x HDMI
Display Port (s) 1 x DisplayPort
USB (s) Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module Intel Wi-Fi 6E AX211 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Supported Storage CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB) 6 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio 2 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x reset button 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x reset jumper 1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

Others

Special Features Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundled Software Norton Internet Security (OEM version) LAN bandwidth management software

Warranty Information

Manufacturing Warranty 3 years

Key Features

Model Z790M AORUS ELITE AX
Supported CPU 14th Gen, 13th Gen & 12th Gen Processors (LGA1700)
Supported RAM 4 x DDR5 DIMMs, up to 7600(O.C.)
Graphics Output 1 x HDMI, 1 x DisplayPort
Features 2.5GbE LAN & Wi-Fi 6E 802.11ax
