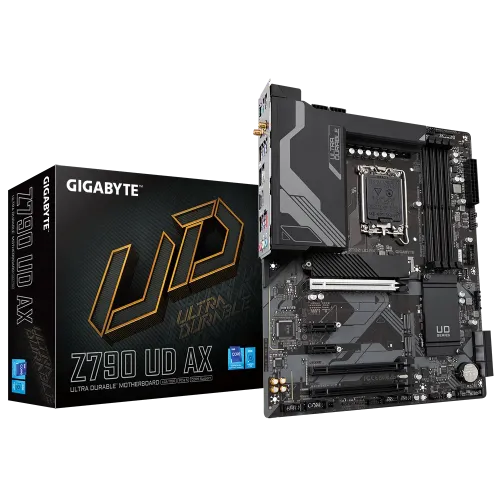

GIGABYTE Z790 UD AX ATX Motherboard

Status
In Stock
4 stores
Lowest Out of Stock
Price Range Single price listing
GIGABYTE Z790 UD AX ATX Motherboard

Product Description

GIGABYTE Z790 UD AX ATX Motherboard

Unlock your gaming potential with the GIGABYTE Z790 UD AX ATX Motherboard, designed for enthusiasts and power users who demand the best performance from their systems. With its cutting-edge features and robust build quality, this motherboard is perfect for those who want to take their gaming experience to the next level.

Key Features:
  • Supports 14th, 13th, and 12th Gen Intel Core processors, delivering unparalleled performance and power efficiency.
  • 4x DDR5 DIMMs support up to 128 GB of system memory, with XMP 3.0 memory module support for easy overclocking.
  • 2.5GbE LAN and Wi-Fi 6E 802.11ax provide fast and reliable network connectivity, ideal for online gaming and streaming.
  • PCIe 5.0 x16 Slot with Quick Release & Screwless Design for easy graphics card installation and removal.
  • 3x PCIe 4.0 x4 M.2 Connectors supporting new PCIe 5.0 SSD with up to type 25110 M.2 slot design.
Advanced Technologies:

The GIGABYTE Z790 UD AX Motherboard features a range of advanced technologies that enhance its performance and user experience. The motherboard's cooling solution, for example, provides a perfect aesthetic heatsink design to keep your PC at an optimal temperature, preventing unexpected system crashes during the creative process. Additionally, the motherboard supports GIGABYTE Control Center (GCC), a powerful software platform that allows users to monitor and control their system's performance, temperature, and power consumption in real-time.

Specifications:

Basic Information: - Form Factor: ATX Form Factor; 30.5cm x 24.4cm - Chipset: Intel Z790 Express Chipset - BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Warranty Information: - Manufacturing Warranty: 3 years

Part ID: #CAN-01355 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Star Tech GIGABYTE Z790 UD AX ATX Motherboard
In Stock Call for Price 1 week ago
Buy Now
Creatus Computer GIGABYTE Z790 UD AX 13th & 12th Gen ATX Motherboard
In Stock 29,999 4 hours ago
Buy Now
Skyland BD GIGABYTE Z790 UD AX ATX Motherboard
In Stock 30,500 3 hours ago
Buy Now
PC House GIGABYTE Z790 UD AX ATX Motherboard
In Stock 31,000 4 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU LGA1700 socket: Support for the 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU
Chipset Intel Z790 Express Chipset
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Audio Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out

Expansion Slots

PCI CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4) 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3) Support for AMD CrossFire technology (PCIEX16 and PCIEX4)

Memory

Type DDR5
Slots 4 x DIMM sockets
Supported Memory 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory 128GB (32 GB single DIMM capacity)

Graphics

Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3

Connector & Ports

HDMI 1 x HDMI
Display Port (s) 1 x DisplayPort
USB (s) Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module AMD Wi-Fi 6E RZ616 (MT7922A22M) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Supported Storage CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB) 6 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio 3 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 2 x Thunderbolt add-in card connectors 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

Others

Special Features Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundled Software Norton Internet Security (OEM version) LAN bandwidth management software

Warranty Information

Manufacturing Warranty 3 years

Key Features

Model Z790 UD AX
Supported CPU 14th Gen, 13th Gen & 12th Gen Processors (LGA1700)
Supported RAM 4 x DDR5 DIMMs, up to 7600(O.C.)
Graphics Output 1 x HDMI, 1 x DisplayPort
Features 2.5GbE LAN & Wi-Fi 6E 802.11ax
Part ID: #CAN-01355 Last Updated: 1 month ago
