Product Description

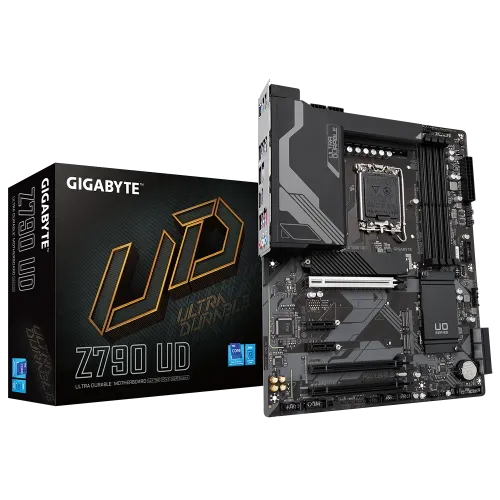

GIGABYTE Z790 UD ATX Motherboard
Unlock unparalleled performance and elevate your gaming experience with the GIGABYTE Z790 UD ATX Motherboard, designed specifically for enthusiasts and power users seeking to push the boundaries of their systems. This flagship motherboard is engineered to deliver exceptional speed, stability, and features that cater to the most demanding applications.
Key Features and Benefits
- Support for 14th, 13th, and 12th Gen Intel Core Processors - Take advantage of the latest CPU architectures and enjoy improved performance and efficiency.
- PCIe 5.0 and PCIe 4.0 Support - Experience faster storage and graphics performance with the latest PCIe standards.
- Up to 128GB DDR5 Memory Support - Enjoy seamless multitasking and improved system responsiveness with high-capacity memory.
- 2.5GbE LAN and High-Quality Audio - Stay connected and immersed in high-quality audio and visuals.
- Advanced Cooling Solution - Maintain optimal temperatures and prevent system crashes with our robust cooling design.
Exclusive GIGABYTE Features
Smart Cooling and Heatsink Design - Our motherboard is equipped with an advanced cooling solution that provides the perfect aesthetic heatsink design to keep your PC at an optimal temperature, preventing unexpected system crashes during the creative process.
Q-Flash Plus and Smart Backup - Enjoy seamless BIOS updates and data protection with our exclusive Q-Flash Plus and Smart Backup features.
Support for GIGABYTE Control Center (GCC) - Manage and monitor your system settings with ease using our intuitive GCC software.
Part ID: #CAN-01348
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
GIGABYTE Z790 UD ATX Motherboard
|
In Stock | Call for Price | 1 week ago | |
|
PC House
GIGABYTE Z790 UD ATX Motherboard
|
In Stock | 28,900 | 4 hours ago | |
|
Skyland BD
GIGABYTE Z790 UD ATX Motherboard
|
In Stock | 28,900 | 4 hours ago | |
|
Creatus Computer
GIGABYTE Z790 UD 13th & 12th Gen ATX Motherboard
|
In Stock | 29,500 | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
LGA1700 socket: Support for the 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU
Chipset
Intel Z790 Express Chipset
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
Audio
Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
Expansion Slots
PCI
CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4) 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3) Support for AMD CrossFire technology (PCIEX16 and PCIEX4)
Memory
Type
DDR5
Slots
4 x DIMM sockets
Supported Memory
7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory
128GB (32 GB single DIMM capacity)
Graphics
Graphics
Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3
Connector & Ports
HDMI
1 x HDMI
Display Port (s)
1 x DisplayPort
USB (s)
Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage
CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB) 6 x SATA 6Gb/s connectors
RAID
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio
3 x audio jacks
Internal I/O Ports
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 2 x Thunderbolt add-in card connectors 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
TPM (Trusted Platform Module )
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features
Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundled Software
Norton Internet Security (OEM version) LAN bandwidth management software
Warranty Information
Manufacturing Warranty
3 years
Key Features
Model
Z790 UD
Supported CPU
14th Gen, 13th Gen & 12th Gen Processors (LGA1700)
Supported RAM
4 x DDR5 DIMMs, up to 7600(O.C.)
Graphics Output
1 x HDMI, 1 x DisplayPort
Features
2.5GbE LAN
Part ID: #CAN-01348
Last Updated: 1 month ago
