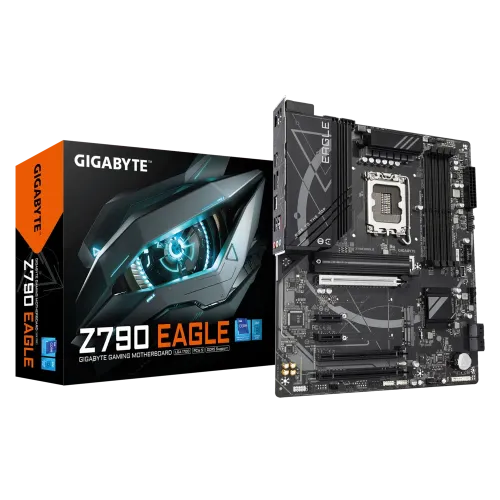

GIGABYTE Z790 EAGLE DDR5 ATX Motherboard

Motherboard • Brand: Gigabyte • Aggregating live prices from leading computer stores in Bangladesh.

Status
In Stock
4 listings tracked
Lowest Deal 28,500 Best Deal
Price Range 28,500 to 29,000 Save 2%
GIGABYTE Z790 EAGLE DDR5 ATX Motherboard

Product Description

Engineered by Gigabyte, this motherboard is designed for **LGA1700** socket processors, built on the **Z790** chipset, featuring a **ATX** form factor, and supporting high-speed **DDR5** memory, providing a reliable foundation for custom desktop systems. PCPartsBD lists the best deal for this item at **28,500 ৳** after tracking live prices across leading BD tech merchants.
Part ID: #CAN-01349 Last Updated: 2 days ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Star Tech GIGABYTE Z790 EAGLE DDR5 ATX Motherboard
In Stock Call for Price 2 hours ago
TechLand BD GIGABYTE Z790 EAGLE Rev 1.0 DDR5 ATX Motherboard
In Stock 28,500 2 hours ago
Skyland BD GIGABYTE Z790 EAGLE DDR5 ATX Motherboard
In Stock 28,899 1 hour ago
Creatus Computer GIGABYTE Z790 EAGLE DDR5 ATX Motherboard
In Stock 29,000 2 hours ago

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core, Pentium Gold and Celeron Processors L3 cache varies with CPU (Please refer "CPU Support List" for more information.)
Chipset Intel Z790 Express Chipset
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Audio Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out

Expansion Slots

PCI CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4) - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)

Memory

Type DDR5
Slots 4 x DDR5 DIMM sockets
Supported Memory 14th and 13th Generation Intel Core i9/i7 Pocessors: - Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 4800/4400 MT/s memory modules 13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors: - Support for DDR5 4800/4400 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Maximum Memory supporting up to 192 GB (48 GB single DIMM capacity) of system memory

Graphics

Graphics Integrated Graphics Processor-Intel HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.)

Connector & Ports

HDMI 1 x HDMI port
Display Port (s) 1 x DisplayPort
USB (s) Chipset: - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports, available through the internal USB headers
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage CPU: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 1 x M.2 connectors (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) - 4 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio 3 x audio jacks
Internal I/O Ports Internal I/O Connectors 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x HDMI port 1 x DisplayPort
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

Others

Special Features Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundled Software Norton Internet Security (OEM version) LAN bandwidth management software

Warranty Information

Manufacturing Warranty 3 years

Key Features

Model Z790 EAGLE
Supported CPU 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM 4x DDR5, Max 192GB 7600(O.C.)
Graphics Output 1x HDMI, 1x DisplayPort
Features Realtek 2.5GbE LAN chip
Part ID: #CAN-01349 Last Updated: 2 days ago
The GIGABYTE Z790 EAGLE DDR5 ATX Motherboard stands out as a top-tier choice for both gaming enthusiasts and professionals, offering unmatched performance and versatility. It is designed to support Intel Core processors from the 14th, 13th, and 12th generations, ensuring compatibility with the latest CPU advancements and providing a future-proof platform. This motherboard's power delivery system is exceptional, featuring a Twin 12+1+1 phases digital VRM solution that guarantees stable and efficient power for demanding workloads and overclocking scenarios. This is critical for maintaining peak performance and ensuring the longevity of your components. The Z790 EAGLE supports dual-channel DDR5 with up to four DIMM slots and XMP 3.0 memory module support. This allows for high-speed memory configurations, enhancing system responsiveness and multitasking capabilities. The motherboard's storage options are equally impressive, with three PCIe 4.0 x4 M.2 connectors that offer ultra-fast data access and reduced load times. These connectors are ideal for NVMe SSDs, enabling quicker boot times and faster application launches. Thermal management is a crucial aspect of any high-performance system, and the GIGABYTE Z790 EAGLE excels in this area with its advanced thermal design. It features a comprehensive cooling solution that ensures VRM power stability and optimal M.2 SSD performance. The inclusion of an M.2 thermal guard helps maintain ideal operating temperatures for high-performance SSDs, thereby prolonging their lifespan and ensuring consistent performance. The motherboard's user-friendly features include the EZ-Latch PCIe 5.0x16 slot, which simplifies the installation or removal of graphics cards. This quick-release design reduces the risk of damage during upgrades, making the process more convenient. Networking capabilities are enhanced with a 2.5GbE LAN port, which provides high-speed, stable network connectivity, crucial for gaming, streaming, and data transfers. This ensures low latency and high bandwidth for demanding applications. Connectivity is a highlight of the Z790 EAGLE, offering a variety of ports including DisplayPort and HDMI for multi-monitor setups, and a rear USB-C port supporting 10Gb/s data transfer speeds. This wide array of connectivity options accommodates numerous peripherals and external devices, making it a versatile choice for various setups. The Smart Fan 6 feature provides advanced cooling management with multiple temperature sensors and hybrid fan headers that support FAN STOP. This allows for precise control over system cooling and noise levels, maintaining optimal temperatures and ensuring quiet operation. The Q-Flash Plus feature allows for BIOS updates without the need to install the CPU, memory, or graphics card, providing a convenient solution for maintaining system firmware. This is particularly useful for ensuring compatibility with new hardware and enhancing system stability. The GIGABYTE Z790 EAGLE DDR5 ATX Motherboard is a comprehensive and powerful platform that combines state-of-the-art technology with user-friendly features, making it an excellent choice for building a high-performance PC tailored to your needs. Whether you are a gamer, a content creator, or a professional, this motherboard provides the stability, speed, and connectivity necessary for today's demanding applications.Buy GIGABYTE Z790 EAGLE DDR5 ATX Motherboard from the best Motherboard Shop in BDIn Bangladesh, you can get the original GIGABYTE Z790 EAGLE DDR5 ATX Motherboard From Star Tech. We have a large collection of the latest GIGABYTE Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at the lowest price. The GIGABYTE Z790 EAGLE DDR5 ATX Motherboard comes with a 3-year warranty.
