Product Description

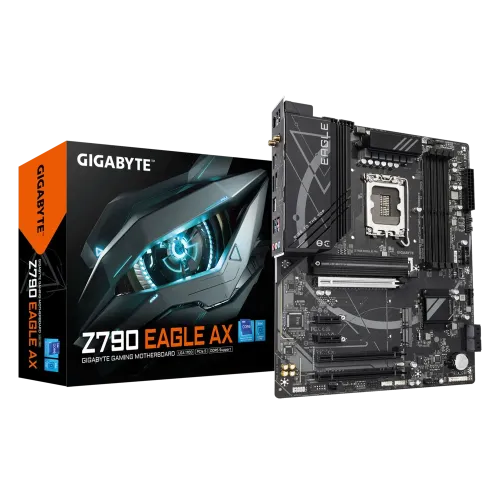

Engineered by Gigabyte, this motherboard is designed for **LGA1700** socket processors, built on the **Z790** chipset, featuring a **ATX** form factor, and supporting high-speed **DDR5** memory, providing a reliable foundation for custom desktop systems. This item is currently out of stock or unavailable at our tracked local computer stores in Bangladesh.
Part ID: #CAN-01358
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard
|
In Stock | Call for Price | 3 hours ago | |
|
Netstar
GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard
|
In Stock | 31,000 | 3 hours ago | |
|
Skyland BD
GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard
|
In Stock | 31,000 | 2 hours ago | |
|
Creatus Computer
GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard
|
In Stock | 31,499 | 3 hours ago | |
|
PC House
GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard
|
In Stock | 34,000 | 2 hours ago | |
|
PCB Store
GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard
|
Check Stock | 29,500 | 3 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core, Pentium Gold and Celeron Processors L3 cache varies with CPU (Please refer "CPU Support List" for more information.)
Chipset
Intel Z790 Express Chipset
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
Audio
Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
Expansion Slots
PCI
CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4) - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)
Memory
Type
DDR5
Slots
4 x DDR5 DIMM sockets
Supported Memory
14th and 13th Generation Intel Core i9/i7 Pocessors: - Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 4800/4400 MT/s memory modules 13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors: - Support for DDR5 4800/4400 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Maximum Memory
up to 192 GB (48 GB single DIMM capacity) of system memory
Graphics
Graphics
Integrated Graphics Processor-Intel® HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.)
Connector & Ports
HDMI
1 x HDMI port
Display Port (s)
1 x DisplayPort
USB (s)
Chipset: - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports, available through the internal USB headers
LAN Port (s)
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
Intel Wi-Fi 6E AX211 (PCB rev. 1.0) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard Realtek Wi-Fi 6E RTL8852CE(PCB rev. 1.1) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
Supported Storage
CPU: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 1 x M.2 connectors (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) - 4 x SATA 6Gb/s connectors
RAID
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio
3 x audio jacks
Internal I/O Ports
Internal I/O Connectors 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 2 x SMA antenna connectors (1T1R) 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 3 x audio jacks
TPM (Trusted Platform Module )
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Others
Special Features
Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundled Software
Norton Internet Security (OEM version) LAN bandwidth management software
Warranty Information
Manufacturing Warranty
3 years
Key Features
Model
Z790 EAGLE AX
Supported CPU
14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM
4x DDR5, Max 192GB 7600(O.C.)
Graphics Output
1x HDMI, 1x DisplayPort
Features
Realtek 2.5GbE LAN chip, Intel Wi-Fi 6E
Part ID: #CAN-01358
Last Updated: 2 days ago
The GIGABYTE Z790 EAGLE AX motherboard is a high-performance platform ideal for demanding applications like gaming and content production. It is designed to accommodate the latest 14th, 13th, and 12th Gen Intel CPUs using the LGA1700 socket. It provides fast and efficient performance for demanding tasks and multitasking, with four DIMM slots supporting up to 192GB of DDR5 memory and speeds up to 7600 MHz (overclocked). Its display connection options include DisplayPort and HDMI outputs. A strong Twin 12*+1+1 Phases Digital VRM Solution, which offers steady and dependable power delivery and is necessary to sustain performance under high loads, is one of the GIGABYTE Z790 EAGLE AX's key characteristics. Dual-channel DDR5 with XMP 3.0 Memory Modules is supported by the motherboard, enhancing memory performance and stability. With three PCIe 4.0 x4 M.2 connections, there are many storage options and fast data transmission and large storage capacity. In addition to preventing SSD overheating, the M.2 Thermal Guard and sophisticated thermal design guarantee VRM power stability. The quick-release design of the EZ-Latch PCIe 5.0 x16 slot facilitates installation simplicity and makes graphics card upgrades simple. Thanks to Intel Wi-Fi 6E (802.11ax) and Realtek 2.5GbE LAN, networking is dependable and quick. In addition, the motherboard offers a wide range of connectivity choices, such as DisplayPort, HDMI, and a rear USB-C connector that supports 10Gb/s data transmission. With its various temperature sensors and hybrid fan headers with FAN STOP technology, the Smart Fan 6 feature provides sophisticated cooling solutions that are specifically matched to the requirements of the system. The update procedure is made simpler by the Q-Flash Plus function, which enables BIOS upgrades without requiring the installation of the CPU, RAM, or graphics card. For those looking for a reliable and feature-rich motherboard that supports the newest Intel CPUs and cutting-edge technology and offers exceptional performance and dependability for any high-end computing demands, the GIGABYTE Z790 EAGLE AX is a great option.Buy GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard from the best Motherboard Shop in BDIn Bangladesh, you can get the original GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard From Star Tech. We have a large collection of the latest GIGABYTE Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Star Tech Shop to get yours at the lowest price. The GIGABYTE Z790 EAGLE AX DDR5 ATX Motherboard comes with 3-year warranty.
