Status
In Stock
4 stores
Lowest Deal
31,000 BDT
Best Deal
Price Range
31,000 to 32,800 BDT
Save 5%
Product Description

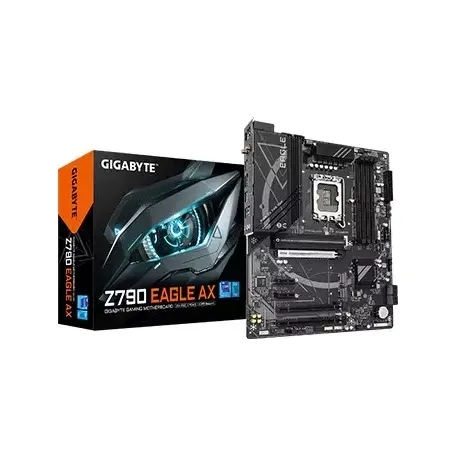

GIGABYTE Z790 EAGLE AX ATX Motherboard
Upgrade your gaming and content creation experience with the GIGABYTE Z790 EAGLE AX ATX Motherboard, designed specifically for enthusiasts and power users who demand exceptional performance, reliability, and customization options. This high-performance motherboard is engineered to support the latest 14th, 13th, and 12th Generation Intel Core processors, delivering unparalleled computing power for demanding tasks.
Key Features and Benefits- Supports up to 192GB of DDR5 memory with speeds ranging from 4800MHz to 7600MHz (OC) for seamless multitasking and smooth gaming experiences
- Features a comprehensive range of connectivity options, including USB Type-C, USB 3.2 Gen 2, USB 3.2 Gen 1, and USB 2.0/1.1 ports
- Includes Realtek 2.5GbE LAN for high-speed networking and multiple M.2 connectors with PCIe 4.0 support for ultra-fast SSD storage configurations
- Equipped with Realtek Audio CODEC for high-definition audio output, supporting 2/4/5.1/7.1-channel configurations and S/PDIF Out
- Features advanced features such as GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, and Smart Backup for easy system management and optimization
The GIGABYTE Z790 EAGLE AX ATX Motherboard incorporates several innovative technologies to enhance performance, stability, and user experience. The motherboard features the Intel Z790 Express Chipset, which provides exceptional stability and reliability for demanding computing tasks. Additionally, the Realtek Audio CODEC delivers high-definition audio output with support for various channel configurations and S/PDIF Out. The motherboard also includes advanced features such as GIGABYTE Control Center, Q-Flash, Q-Flash Plus, and Smart Backup for easy system management and optimization.
Part ID: #CAN-01577
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
TechLand BD
GIGABYTE Z790 EAGLE AX 14th, 13th, and 12th Gen ATX Motherboard
|
In Stock | Call for Price | 4 hours ago | |
|
Computer Village
GIGABYTE Z790 EAGLE AX 14th, 13th, And 12th Gen ATX Motherboard
|
In Stock | 31,000 | 4 hours ago | |
|
Ultra Technology
GIGABYTE Z790 EAGLE AX ATX Motherboard
|
In Stock | 31,500 | 4 hours ago | |
|
Nexus Computer
GIGABYTE Z790 EAGLE AX Motherboard
|
In Stock | 32,800 | 4 hours ago |
Historical Pricing Trend
Product Specifications
General Specifications
OS
Support for Windows 11 64-bit Support for Windows 10 64-bit
LAN
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
USB
Chipset: - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports, available through the internal USB headers
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Memory
14th and 13th Generation Intel Core i9/i7 Pocessors: - Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) / 7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 4800/4400 MT/s memory modules 13th Generation Intel® Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors: - Support for DDR5 4800/4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Chipset
Intel Z790 Express Chipset
Storage
CPU: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 1 x M.2 connectors (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Warranty
3 Years
CPU Socket
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU (Please refer "CPU Support List" for more information.)
Controller
iTE I/O Controller Chip
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
GPU Chipset
Integrated Graphics Processor-Intel HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.)
Other Features
Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 2 x SMA antenna connectors (1T1R) 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 3 x audio jacks
Expansion Slots
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4) - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)
Software Features
Norton Internet Security (OEM version) LAN bandwidth management software
Internal I/O Ports
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
Wireless Connectivity
ntel® Wi-Fi 6E AX211 (PCB rev. 1.0) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard Realtek Wi-Fi 6E RTL8852CE(PCB rev. 1.1) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
Part ID: #CAN-01577
Last Updated: 1 month ago
