Product Description

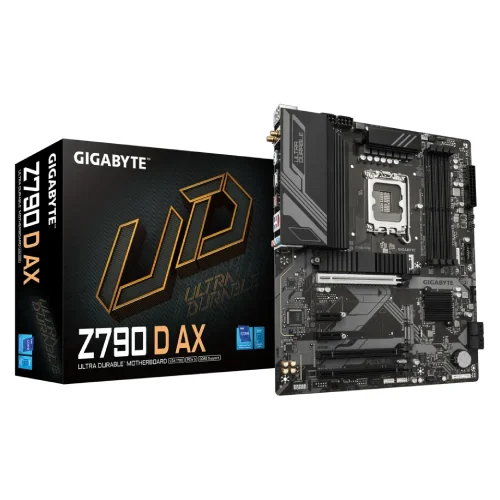

GIGABYTE Z790 D AX DDR5 ATX Motherboard
Unlock Unparalleled Performance for Enthusiasts and Professionals
The GIGABYTE Z790 D AX DDR5 ATX Motherboard is engineered to deliver exceptional performance, power, and features for gamers, content creators, and overclockers. With its cutting-edge design, this motherboard is the perfect choice for those seeking to harness the full potential of their Intel Core processors.
Key Features and Benefits
- Support for 14th, 13th, and 12th Generation Intel Core Processors - Harness the power of the latest Intel processors via the LGA 1700 socket
- DDR5 Memory Support up to 128GB - Enjoy blazing-fast data access for improved multitasking and gaming performance
- PCIe 5.0 x16 Slot for Future-Proof Graphics Performance - Stay ahead of the curve with the latest PCIe standard
- Integrated WiFi 6E and 2.5GbE LAN - Experience ultra-fast wireless speeds and dependable network performance
- Advanced Thermal Management with Smart Fan 6 - Keep your system cool and quiet with intelligent fan control
Proprietary Technologies and Features
Ultra Durable Architecture - Enjoy great stability and power delivery for heavy loads and overclocking
Next-Generation Expansion Options - Expand your system with multiple M.2 ports and a PCIe 5.0 x16 slot
Q-Flash Plus and Smart Backup - Update your BIOS easily and securely with Q-Flash Plus, and protect your data with Smart Backup
Unlock Your System's Full Potential with the GIGABYTE Z790 D AX DDR5 ATX Motherboard
Part ID: #CAN-01351
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
GIGABYTE Z790 D AX DDR5 ATX Motherboard
|
In Stock | Call for Price | 1 week ago | |
|
Creatus Computer
GIGABYTE Z790 D AX DDR5 ATX Motherboard
|
In Stock | 28,999 | 5 hours ago | |
|
TechLand BD
GIGABYTE Z790 D AX DDR5 ATX Motherboard
|
In Stock | 30,300 | 5 hours ago | |
|
Skyland BD
GIGABYTE Z790 D AX DDR5 ATX Motherboard
|
Check Stock | Call for Price | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
LGA1700 socket: Support for the 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU
Chipset
Intel Z790 Express Chipset
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
Audio
Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
Expansion Slots
PCI
CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4) 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3) Support for AMD CrossFire technology (PCIEX16 and PCIEX4)
Memory
Type
DDR5
Slots
4 x DIMM sockets
Supported Memory
7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory
128GB (32 GB single DIMM capacity)
Graphics
Graphics
Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3
Connector & Ports
HDMI
1 x HDMI
Display Port (s)
1 x DisplayPort
USB (s)
Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
AMD Wi-Fi 6E RZ616 (MT7922A22M) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Supported Storage
CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB) 6 x SATA 6Gb/s connectors
RAID
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio
3 x audio jacks
Internal I/O Ports
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 2 x Thunderbolt add-in card connectors 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
TPM (Trusted Platform Module )
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features
Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundled Software
Norton Internet Security (OEM version) LAN bandwidth management software
Warranty Information
Manufacturing Warranty
3 years
Key Features
Model
Z790 D AX
Supported CPU
14th Gen, 13th Gen & 12th Gen Processors (LGA1700)
Supported RAM
4 x DDR5 DIMMs 7600(OC), up to 256 GB
Graphics Output
1 x HDMI, 1 x DisplayPort
Features
2.5GbE LAN, WiFi-6E, Bluetooth 5.3
Part ID: #CAN-01351
Last Updated: 1 month ago
