Product Description

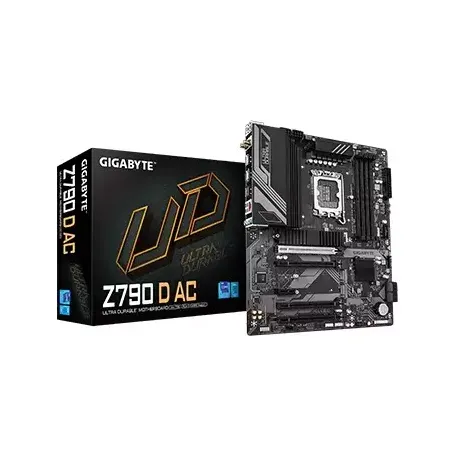

Engineered by Gigabyte, this motherboard is designed for **LGA1700** socket processors, built on the **Z790** chipset, featuring a **ATX** form factor, and supporting high-speed **DDR5** memory, providing a reliable foundation for custom desktop systems. You can buy this component starting from **26,800 ৳**, compared dynamically across 4 major computer shops.
Part ID: #CAN-01612
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Computer Village
GIGABYTE Z790 D AC 14th, 13th, And 12th Gen ATX Motherboard
|
In Stock | 26,800 | 3 hours ago | |
|
Ultra Technology
GIGABYTE Z790 D AC 14th, 13th, And 12th Gen ATX Motherboard
|
In Stock | 29,500 | 2 hours ago | |
|
Nexus Computer
GIGABYTE Z790 D AC ATX MOTHERBOARD
|
In Stock | 29,700 | 2 hours ago | |
|
TechLand BD
GIGABYTE Z790 D AC 14th, 13th, And 12th Gen ATX Motherboard
|
Check Stock | 29,000 | 3 hours ago |
Historical Pricing Trend
Product Specifications
General Specifications
LAN
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
USB
Chipset: - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports, available through the internal USB headers
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset
Intel Z790 Express Chipset
Features
Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Software
Norton Internet Security (OEM version) LAN bandwidth management software
Warranty
3 Years
Connector
Back Panel Connectors: 1 x PS/2 keyboard/mouse port 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 3 x audio jacks
Dimension
30.5cm x 24.4cm
CPU Socket
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU
Controller
I/O Controller iTE I/O Controller Chip
Form Factor
ATX
GPU Chipset
Integrated Graphics Processor-Intel HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.)
Storage Type
CPU: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 1 x M.2 connectors (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Supported OS
Support for Windows 11 64-bit Support for Windows 10 64-bit
Expansion Slots
CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) - 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_4) - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_3)
Memory Platform
14th and 13th Generation Intel Core i9/i7 Processors: - Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) / 6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 4800/4400 MT/s memory modules 13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors: - Support for DDR5 4800/4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Audio Technology
Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
Internal I/O Ports
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
Wireless Connectivity
Intel Wireless- AC 9560 (PCB rev. 1.0) - WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band - BLUETOOTH 5.1 - Support 11ac 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
Part ID: #CAN-01612
Last Updated: 2 days ago
The GIGABYTE Z790 D AC ATX motherboard is a powerhouse designed to meet the demands of both casual users and enthusiasts alike. Boasting the latest Intel® Z790 Express Chipset and LGA1700 socket compatibility, it supports a wide range of Intel® processors, including the 14th, 13th, and 12th Generation Intel® Core™ series, Pentium® Gold, and Celeron® processors. Its robust BIOS features, including AMI UEFI BIOS, ensure seamless system operation and customization. With an ATX form factor measuring 30.5cm x 24.4cm, this motherboard offers ample space for expansion and connectivity. Its comprehensive back panel connectors include USB Type-C® and USB 3.2 Gen 2 ports for high-speed data transfer, HDMI and DisplayPort for video output, and multiple audio jacks for immersive sound experiences. The inclusion of LAN bandwidth management software enhances network performance. Expansion slots on the motherboard accommodate various peripherals, including PCIe 5.0 and PCIe 4.0 graphics cards or NVMe SSDs. The integrated Intel® HD Graphics support ensures crisp visuals with HDMI 2.1 and DisplayPort connectivity. Equipped with Realtek® Audio CODEC, the motherboard delivers high-definition audio with support for 2/4/5.1/7.1-channel configurations and S/PDIF Out. The bundled Norton® Internet Security software offers added protection against online threats. Internal connectors cater to various components, including M.2 SSDs, SATA drives, and Thunderbolt™ add-in cards. The motherboard supports DDR5 memory modules with speeds of up to 7600MHz, offering a maximum capacity of 192GB for smooth multitasking and gaming experiences. Unique features such as GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, and Smart Backup enhance system management and data protection. Additionally, the inclusion of Intel® Wireless-AC 9560 module ensures reliable wireless connectivity with support for Wi-Fi 802.11 standards and Bluetooth 5.1. Backed by a 3-year warranty, the GIGABYTE Z790 D AC motherboard provides reliability, performance, and flexibility for a wide range of computing needs, making it an excellent choice for both mainstream users and PC enthusiasts.Features:BIOS: Equipped with a 256 Mbit flash memory and licensed AMI UEFI BIOS, the motherboard ensures seamless system operation and customization. It supports various standards including PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, and ACPI 5.0.Chipset: Powered by the Intel® Z790 Express Chipset, the motherboard provides robust performance and compatibility for 14th, 13th, and 12th Generation Intel® Core™ processors, Pentium® Gold, and Celeron® processors.Audio Feature: Featuring the Realtek® Audio CODEC, the motherboard delivers high-definition audio with support for 2/4/5.1/7.1-channel configurations. Users can customize audio settings through the provided software for optimal experience.Connectivity: The back panel connectors include a versatile array of ports such as USB Type-C®, USB 3.2 Gen 2 Type-A, HDMI, DisplayPort, RJ-45, and audio jacks. Additionally, it supports S/PDIF Out and SMA antenna connectors for enhanced connectivity options.Expansion Slots: With PCIe 5.0 and PCIe 4.0 support, the motherboard offers flexible expansion options. It includes PCIe x16 slots for graphics cards or NVMe SSDs, PCIe x1 slots, and M.2 Socket 3 connectors for high-speed storage.Networking: Equipped with a Realtek® 2.5GbE LAN chip and Intel® Wireless-AC 9560 module, the motherboard ensures fast and reliable wired and wireless network connections. It supports Wi-Fi 802.11 standards and Bluetooth 5.1 for seamless connectivity.Memory Support: The motherboard supports DDR5 memory modules with speeds of up to 7600MHz for optimal performance. It features four DDR5 DIMM sockets supporting up to 192 GB of system memory, along with support for ECC and non-ECC memory modules.Unique Features: Special features like GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, and Smart Backup enhance system management and data protection, providing users with added convenience and security.Overall, the GIGABYTE Z790 D AC motherboard combines cutting-edge technology, robust performance, and extensive connectivity options, making it an ideal choice for gamers, content creators, and PC enthusiasts...
