Product Description

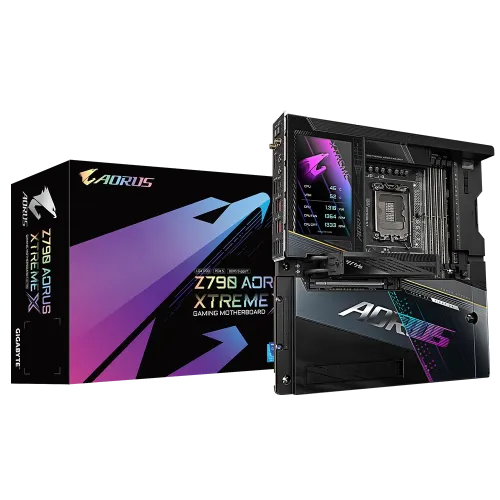

GIGABYTE Z790 AORUS XTREME X E-ATX Motherboard - Unleash Your PC's Potential
Designed for advanced PC users and enthusiasts, the GIGABYTE Z790 AORUS XTREME X E-ATX Motherboard is a high-performance powerhouse that caters to the most demanding tasks like gaming and content creation. With its robust feature set and top-tier performance, this motherboard is the perfect choice for those seeking a premium PC building experience.
Key Features and Performance Highlights
- Supports Intel Core 14th, 13th, and 12th-generation processors for outstanding performance and efficiency
- 4 x DDR5 DIMMs support up to 8266(O.C) for extreme memory capacity and speed
- 2 x Intel Thunderbolt 4 connectors for ultra-fast storage and connectivity
- Qualcomm Wi-Fi 7 QCNCM865 for seamless wireless connectivity
- Marvell AQtion AQC107 10GbE LAN chip and Intel 2.5GbE LAN chip for lightning-fast networking
Proprietary Technologies and Innovative Features
The GIGABYTE Z790 AORUS XTREME X E-ATX Motherboard features a range of cutting-edge technologies and innovative designs, including:
Advanced Power Delivery and Cooling System
The motherboard boasts a digital twin 24+1+2 phases VRM solution for stable and efficient power distribution to the CPU, making it ideal for overclocking and demanding workloads. This, combined with a robust thermal design, ensures optimal system performance and stability even under heavy loads.
Ultimate Connectivity and Storage Options
The GIGABYTE Z790 AORUS XTREME X E-ATX Motherboard offers a comprehensive range of connectivity options, including ultra-fast storage, efficient thermal design, fast networking, extended connectivity, and high-quality audio components. With support for 4 x SATA 6Gb/s connectors, 5 x M.2 Socket 3 connectors, and 2 x Intel Thunderbolt 4 connectors, this motherboard is designed to meet the needs of even the most demanding users.
Part ID: #CAN-01202
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
GIGABYTE Z790 AORUS XTREME X E-ATX Motherboard
|
In Stock | Call for Price | 1 week ago | |
|
TechLand BD
GIGABYTE Z790 AORUS XTREME X GAMING MOTHERBOARD
|
In Stock | Call for Price | 4 hours ago | |
|
PC House
GIGABYTE Z790 AORUS XTREME X E-ATX Motherboard
|
In Stock | Call for Price | 3 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU
Chipset
Intel Z790 Express Chipset
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
E-ATX Form Factor; 30.5cm x 28.5cm
Audio
1 ESS ES9280AC DAC chip + 2 ESS ES9080 chips DTS Sound Unbound High Definition Audio 2-channel Support for S/PDIF Out
Expansion Slots
PCI
CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector. * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Memory
Type
DDR5
Slots
4 x DIMM sockets
Supported Memory
Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory
192 GB (48 GB single DIMM capacity)
Graphics
Graphics
Integrated Graphics Processor+Intel Thunderbolt 4 Controller: 2 x Intel Thunderbolt 4 connectors (USB Type-C ports), supporting DisplayPort and Thunderbolt video outputs and a maximum resolution of 5120x2880@60 Hz with 24 bpp (via single display output)
Connector & Ports
USB (s)
Chipset+Intel Thunderbolt 4 Controller: 2 x USB Type-C ports on the back panel, with USB 3.2 Gen 2 support Chipset: 2 x USB Type-C ports with USB 3.2 Gen 2x2 support, available through the internal USB header 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset+2 USB 3.2 Gen 2 Hubs: 8 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+2 USB 2.0 Hubs: 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)
Marvell AQtion AQC107 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1) Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) (LAN2)
Wireless Communication module
Qualcomm Wi-Fi 7 QCNCM865 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11be 320MHz wireless standard
Supported Storage
CPU: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 2280/2260 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) 4 x SATA 6Gb/s connectors
RAID
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio
2 x audio jacks
Internal I/O Ports
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan extension cable header (can extend three system fan headers through one cable) 1 x system fan/water cooling pump extension cable header (can extend three system fan/water cooling pump headers through one cable) 1 x noise detection header 1 x integrated extension cable header for addressable RGB Gen2 LED strips and RGB LED strips (can extend three addressable RGB Gen2 LED strip headers and three RGB LED strip headers through one cable) 4 x SATA 6Gb/s connectors 5 x M.2 Socket 3 connectors 1 x front panel header 2 x USB Type-C headers, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 1 x integrated extension cable header for system fan/water cooling pump and USB 2.0/1.1 headers (can extend one system fan/water cooling pump header and two USB 2.0/1.1 headers through one cable) 2 x temperature sensor headers 1 x power button 1 x reset button 1 x Clear CMOS button
Others
Special Features
Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundled Software
Norton Internet Security (OEM version) LAN bandwidth management software
Warranty Information
Manufacturing Warranty
3 years
Key Features
Model
Z790 AORUS XTREME X
Supported CPU
14th 13th Gen & 12th Gen Processors (LGA1700)
Supported RAM
4 x DDR5 DIMMs, up to 8266(O.C)
Graphics Output
2 x Intel Thunderbolt 4 connectors
Features
Qualcomm Wi-Fi 7 QCNCM865
Part ID: #CAN-01202
Last Updated: 1 month ago
