Product Description

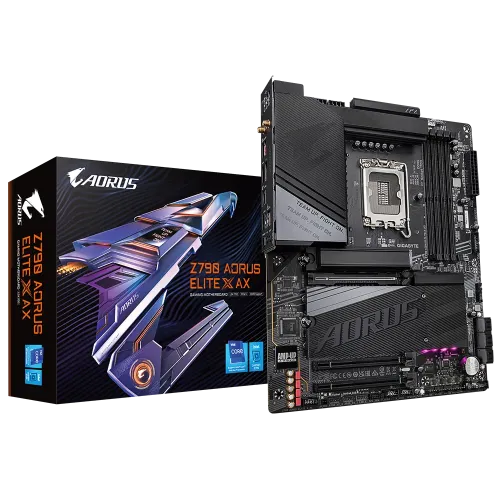

GIGABYTE Z790 AORUS ELITE X AX ATX Motherboard
Unleash Your Gaming Potential
Designed for gamers and professionals, the GIGABYTE Z790 AORUS ELITE X AX ATX Motherboard delivers unparalleled performance and compatibility. This motherboard supports a wide range of Intel processors, including the newest 14th-generation CPUs, making it an excellent choice for demanding applications and gaming.
Key Features:
- Supports 14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron Processors
- 4 DIMM slots supporting Dual Channel DDR5 memory with up to 8266(O.C.) speed
- PCIe 5.0 x16 slot with 10X strength for high-end GPUs and multi-GPU systems
- 2.5GbE LAN and Wi-Fi 6E with ultra-high gain antenna for fast and robust networking
- Realtek ALC1220 audio codec and audiophile-grade capacitors for immersive gaming and entertainment experience
- User-friendly UC BIOS with Quick Access option for streamlined system settings and modifications
Advanced Technologies:
Power Delivery and Cooling
The GIGABYTE Z790 AORUS ELITE X AX ATX Motherboard features a Digital twin 16+1+2 phases VRM design, ensuring a steady and efficient power supply for overclocking. The motherboard also includes VRM Thermal Armor Advanced and M.2 Thermal Guard L for efficient heat dissipation and maintaining optimal operating temperatures.
Networking and Connectivity
The motherboard boasts fast and robust networking with 2.5GbE LAN and Wi-Fi 6E, along with an ultra-high gain antenna. It also features DisplayPort, HDMI, Front USB-C 10Gb/s, and Rear USB-C 20Gb/s connections for seamless connectivity.
Part ID: #CAN-01389
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
Basic Information
Supported CPU
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU
Chipset
Intel Z790 Express Chipset
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
Audio
Realtek ALC1220-VB CODEC High Definition Audio 2/4/5.1/7.1-channel
Expansion Slots
PCI
CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) Chipset: - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/PCIEX4_2)
Memory
Type
DDR5
Slots
4 x DIMM sockets
Supported Memory
Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory
up to 192 GB (48 GB single DIMM capacity)
Graphics
Graphics
Integrated Graphics Processor-Intel® HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3
Connector & Ports
HDMI
1 x HDMI
Display Port (s)
1 x DisplayPort
USB (s)
Chipset: - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support - 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)
Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.0) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard Intel Wi-Fi 6E AX211 (For PCB rev. 1.1) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
Supported Storage
CPU: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB) - 6 x SATA 6Gb/s connectors
RAID
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio
2 x audio jacks
Internal I/O Ports
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x reset button 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x reset jumper 1 x Clear CMOS jumper
TPM (Trusted Platform Module )
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Others
Special Features
Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundled Software
Norton Internet Security (OEM version) LAN bandwidth management software
Warranty Information
Manufacturing Warranty
3 years
Key Features
Model
Z790 AORUS ELITE X AX
Supported CPU
14th Gen, 13th Gen & 12th Gen Processors (LGA1700)
Supported RAM
4 x DDR5 DIMMs, up to 8266(O.C.)
Graphics Output
1 x HDMI, 1 x DisplayPort
Features
Intel 2.5GbE LAN chip, Intel Wi-Fi 6E
