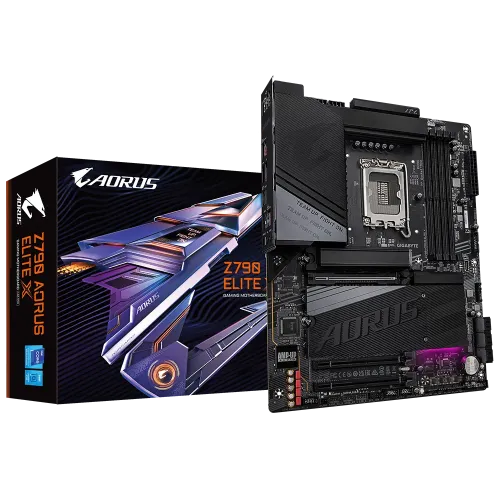

GIGABYTE Z790 AORUS ELITE X ATX Motherboard

Status
In Stock
2 stores
Lowest Out of Stock
Price Range Single price listing
GIGABYTE Z790 AORUS ELITE X ATX Motherboard

Product Description

GIGABYTE Z790 AORUS ELITE X ATX Motherboard

Designed for power users and gamers, the GIGABYTE Z790 AORUS ELITE X ATX Motherboard offers top-notch performance, cutting-edge features, and unparalleled stability. With its support for Intel Core 14th and 13th-generation CPUs, this motherboard is perfect for those who demand the best from their system.

Key Features and Benefits:

  • Support for Intel Core 14th, 13th, and 12th-generation CPUs
  • Dual Channel DDR5 memory via four DIMM slots and XMP 3.0 memory modules
  • PCIe 5.0 x 16 slot with 10X power for the latest graphics cards
  • Four PCIe 4.0 x4 M.2 slots for ultra-fast storage capabilities
  • 2.5GbE LAN for speedy networking and online gaming

Advanced Technologies and Features:

Digital Dual VRM Technology

The GIGABYTE Z790 AORUS ELITE X ATX Motherboard features digital dual VRM technology with 16+1+2 phases, providing consistent power delivery and making it an ideal choice for reliable performance and overclocking capabilities. The motherboard also boasts thermal management efficiency, with the VRM Thermal Armor Advanced and M.2 Thermal Guard L assisting in maintaining overall thermal performance even under severe workloads.

UC BIOS and EZ-Latch Click

The user-friendly UC BIOS offers an intuitive experience with Quick Access functions, simplifying system customization and optimization. Additionally, the motherboard features EZ-Latch Click and EZ-Latch Plus M.2 heatsinks with a screwless and quick-release design, effectively dissipating heat from M.2 SSDs and improving overall system stability.

Part ID: #CAN-01201 Last Updated: 1 month ago

Available Deals & Price Comparison

Prices updated daily
Retailer Stock Status Price Last Checked Action
Star Tech GIGABYTE Z790 AORUS ELITE X ATX Motherboard
In Stock Call for Price 1 week ago
Buy Now
PC House GIGABYTE Z790 AORUS ELITE X ATX Motherboard
In Stock Call for Price 4 hours ago
Buy Now

Historical Pricing Trend

Product Specifications

Basic Information

Supported CPU LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core, Pentium Gold and Celeron Processors L3 cache varies with CPU
Chipset Intel Z790 Express Chipset
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Audio Realtek ALC1220-VB CODEC High Definition Audio 2/4/5.1/7.1-channel

Expansion Slots

PCI CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/PCIEX4_2)

Memory

Type DDR5
Slots 4 x DIMM sockets
Supported Memory Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory up to 192 GB (48 GB single DIMM capacity)

Graphics

Graphics Integrated Graphics Processor-Intel HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3

Connector & Ports

HDMI 1 x HDMI
Display Port (s) 1 x DisplayPort
USB (s) Chipset: - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support - 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage CPU: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB) - 6 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio 2 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x reset button 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x reset jumper 1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

Others

Special Features Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundled Software Norton Internet Security (OEM version) LAN bandwidth management software

Warranty Information

Manufacturing Warranty 3 years

Key Features

Model Z790 AORUS ELITE X
Supported CPU 14th Gen, 13th Gen & 12th Gen Processors (LGA1700)
Supported RAM 4 x DDR5 DIMMs, up to 8266(O.C.)
Graphics Output 1 x HDMI, 1 x DisplayPort
Features Intel 2.5GbE LAN chip
Part ID: #CAN-01201 Last Updated: 1 month ago
