Status
In Stock
3 listings tracked
Lowest Deal
39,499
Best Deal
Price Range
39,499 to 40,000
Save 1%
Product Description
Engineered by Gigabyte, this motherboard is designed for **LGA1700** socket processors, built on the **Z790** chipset, and supporting high-speed **DDR5** memory, providing a reliable foundation for custom desktop systems. You can buy this component starting from **39,499 ৳**, compared dynamically across 3 major computer shops.
Part ID: #CAN-01558
Last Updated: 2 days ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Creatus Computer

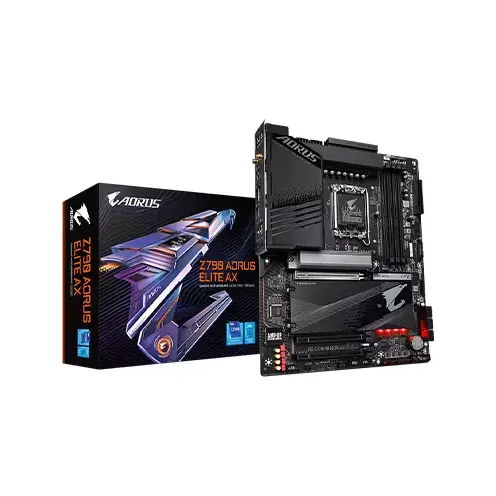

Gigabyte Z790 AORUS ELITE AX 13th and 12th Gen DDR5 ATX Motherboard
|
In Stock | 39,499 | 3 hours ago | |
|
TechLand BD
GIGABYTE Z790 AORUS ELITE AX DDR5 13TH GEN MOTHERBOARD
|
In Stock | 40,000 | 3 hours ago | |
|
Ultra Technology
GIGABYTE Z790 AORUS ELITE AX 14th,13TH And 12TH GEN MOTHERBOARD
|
In Stock | 40,000 | 2 hours ago |
Historical Pricing Trend
Product Specifications
General Specifications
LAN
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
USB
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
HDMI
1 x HDMI 2.0 port
WiFi
Intel Wi-Fi 6E AX211
Audio
Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
Slots
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Memory
Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Chipset
Intel® Z790 Express Chipset
Graphics
Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 * Support for DisplayPort 1.2 version and HDCP 2.3
Warranty
3 years
Bluetooth
BLUETOOTH 5.3
Dimension
30.5cm x 24.4cm
Form Factor
ATX Form Factor
Supported CPU
LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU
Supported Storage
2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB) 6 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
External I/O Ports
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI 2.0 port 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks
Internal I/O Ports
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x reset jumper 1 x Clear CMOS jumper
Part ID: #CAN-01558
Last Updated: 2 days ago
GIGABYTE Z790 AORUS ELITE AX 14th,13TH And 12TH GEN MOTHERBOARD GIGABYTE Z790 AORUS ELITE AX The Fast-Moving Technology Changes, GIGABYTE Always Follows The Latest Trends And Provides Customers With Advanced Features And Latest Technologies. GIGABYTE Motherboards Are Equipped With Upgraded Power Solution, Latest Storage Standards And Outstanding Connectivity To Enable Optimised Performance For Gaming.To Ensure Maximum Turbo Boost And Overclocking Performance Of Intel's New Generation CPU, GIGABYTE AORUS Series Motherboard Equip The Best VRM Design Ever Built With The Highest Quality Components.PCIe 5.0 Design Supports Double The Bandwidth Of PCIe 4.0 And Ensures That Compatible With Cutting-Edge SSDs And GPUs Released In The Next Few Years To Their Full Capability.AORUS Is Offering A Tested And Proven Platform That Has Memory Overclocking Capability Up To 7600 And Beyond. For DDR5 XMP Memory, All Users Need To Do To Attain High Memory Performance Boost Is To Ensure That Their Memory Module Is XMP Capable And That The XMP Function Is Activated And Enabled On Their AORUS Motherboard.The Exclusive 3 PCIe 4.0 M.2 From CPU And 2nd Generation 7000 MB/S SSD Provides Unparalleled Read/ Write Performance Up To 21053 And 15499 MB/S.GIGABYTE Motherboards Unparalleled Performance Is Guaranteed By Innovative And Optimised Thermal Design To Ensure The Best CPU, Chipset, SSD Stability And Low Temperatures Under Full Load Application And Gaming Performance Key Features Support For 12th And 14th,13th Generation Intel Core Processors On Socket LGA 1700 Support For DDR5 7600 MHz Memory (OC) VRM 16+1+2 Phases (8+8 Parallel) PCI-Express 5.0 16x GIGABYTE Z790 AORUS ELITE AX vs ASUS PRIME H610M-A D4 INFORMATION GIGABYTE Z790 AERO G ASUS PRIME H610M-A D4 CHIPSET Intel® Z790 Express Chipset Intel H610 Chipset FORM FACTOR ATX Form Factor mATX Form Factor 9.6 inch x 8.3 inch ( 24.4 cm x 21.1 cm ) LAN Realtek 2.5GbE LAN Chip (2.5 Gbps/1 Gbps/100 Mbps) 1 x Intel 1Gb Ethernet CPU LGA1700 Socket: Support For The 14th,13th And 12th Generation Intel® Core™, Pentium® Gold And Celeron® Processors L3 Cache Varies With CPU Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 ..
